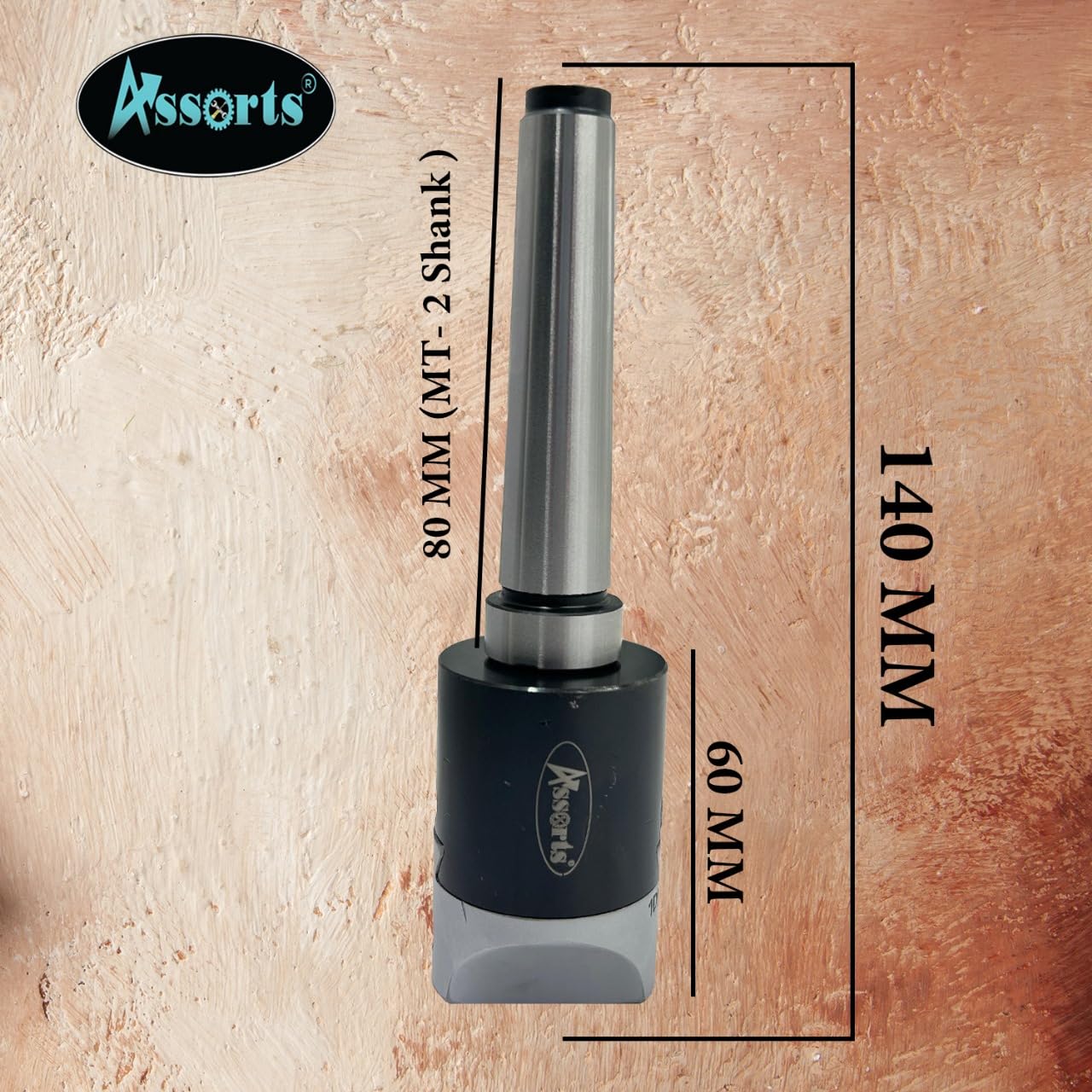

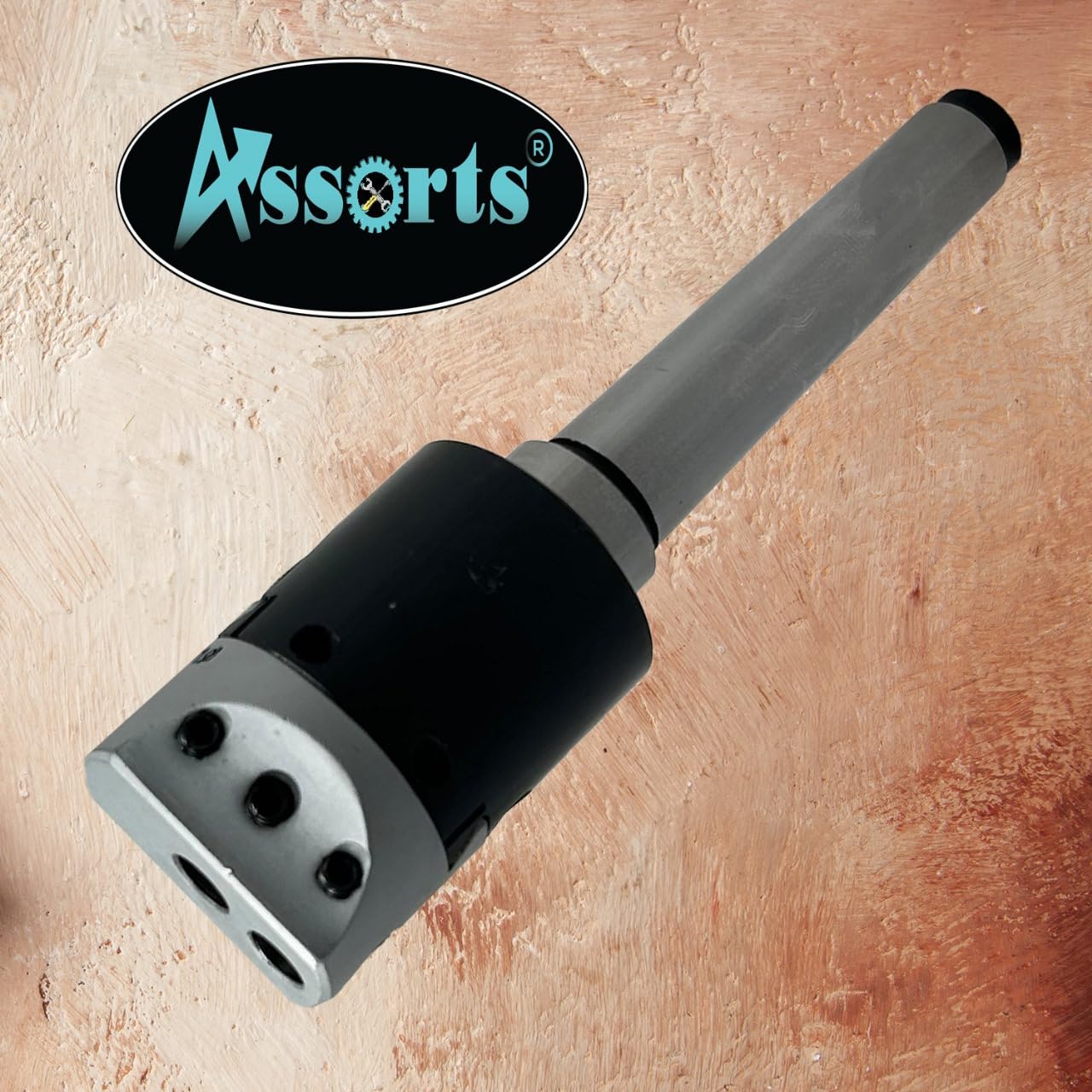

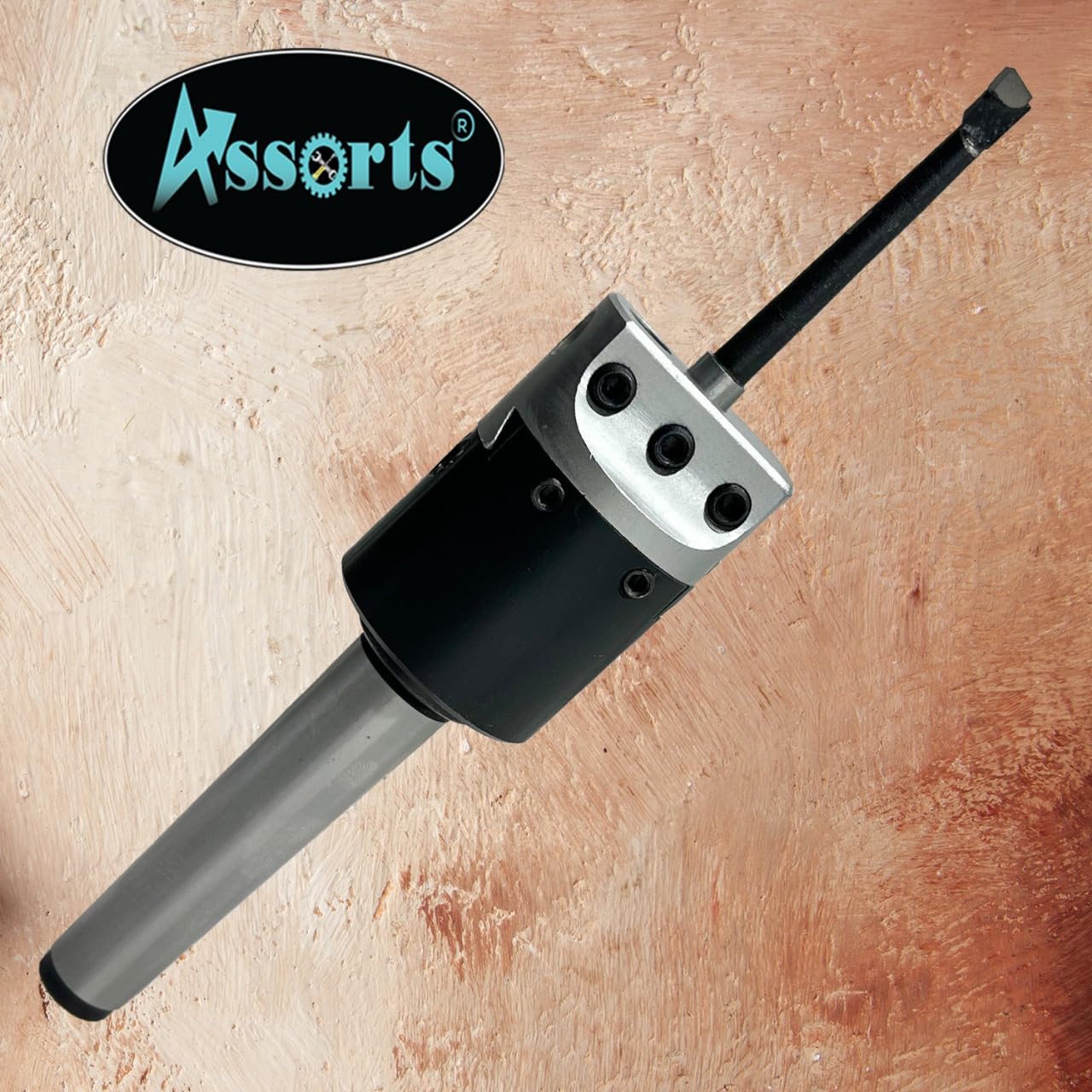

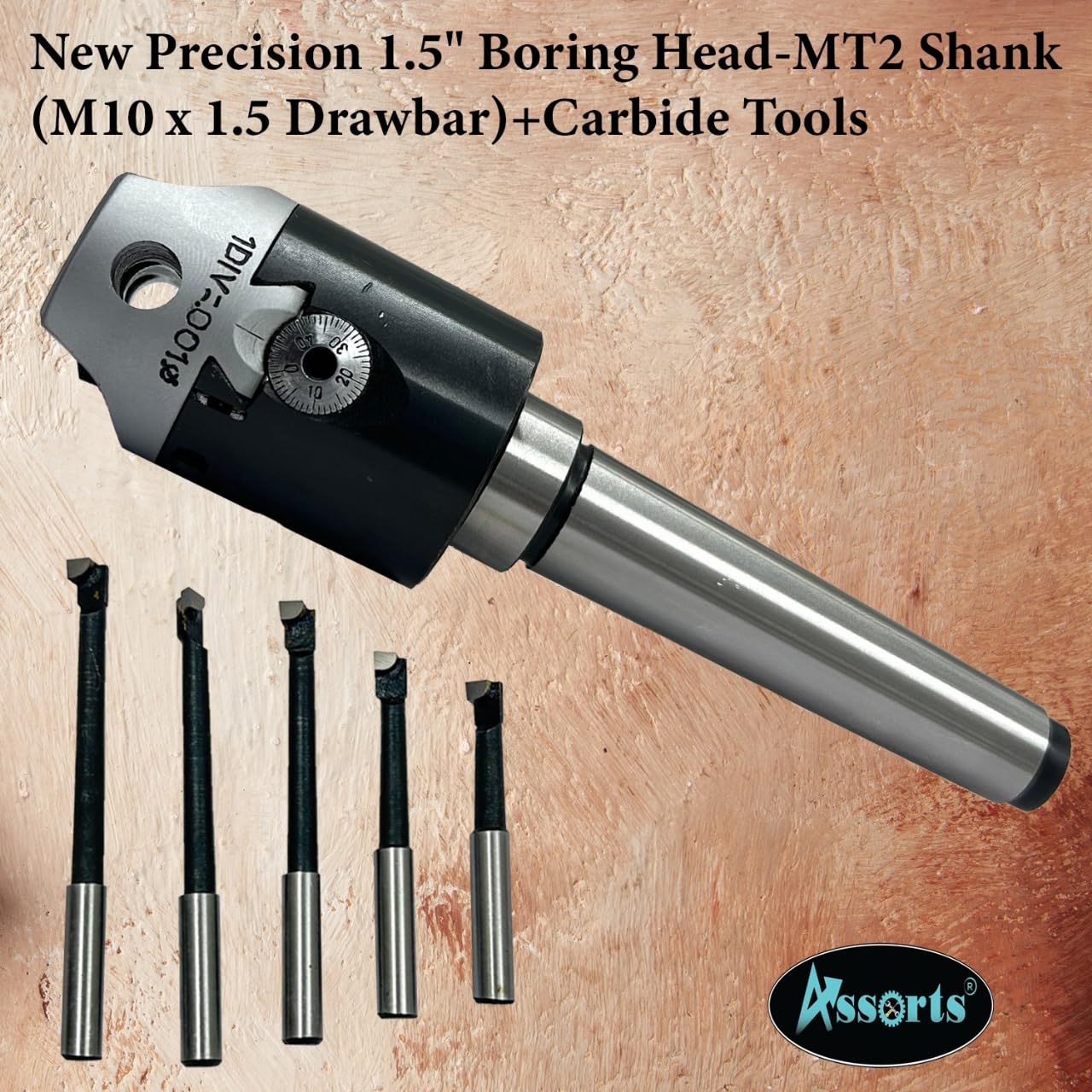

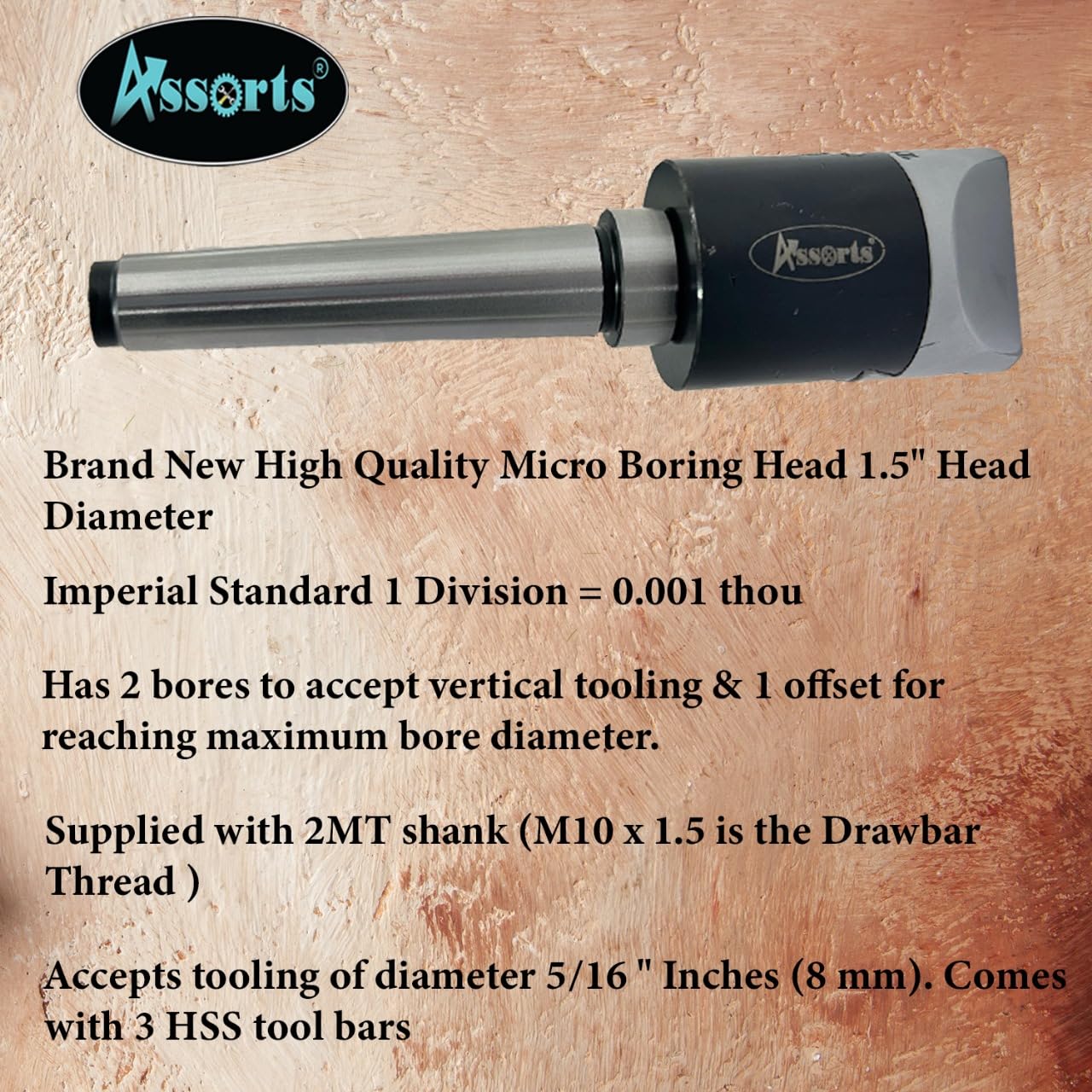

About this item: Brand New High Quality Micro Boring Head with a 1.5" head diameter. Built to imperial standards where 1 division equals 0.001 thou. Features 2 vertical tooling bores and 1 offset bore for maximum diameter reach. Supplied with a 2MT shank (M10 x 1.5 drawbar thread) and accepts tooling with a 5/16" (8 mm) diameter. Includes 3 HSS tool bars.

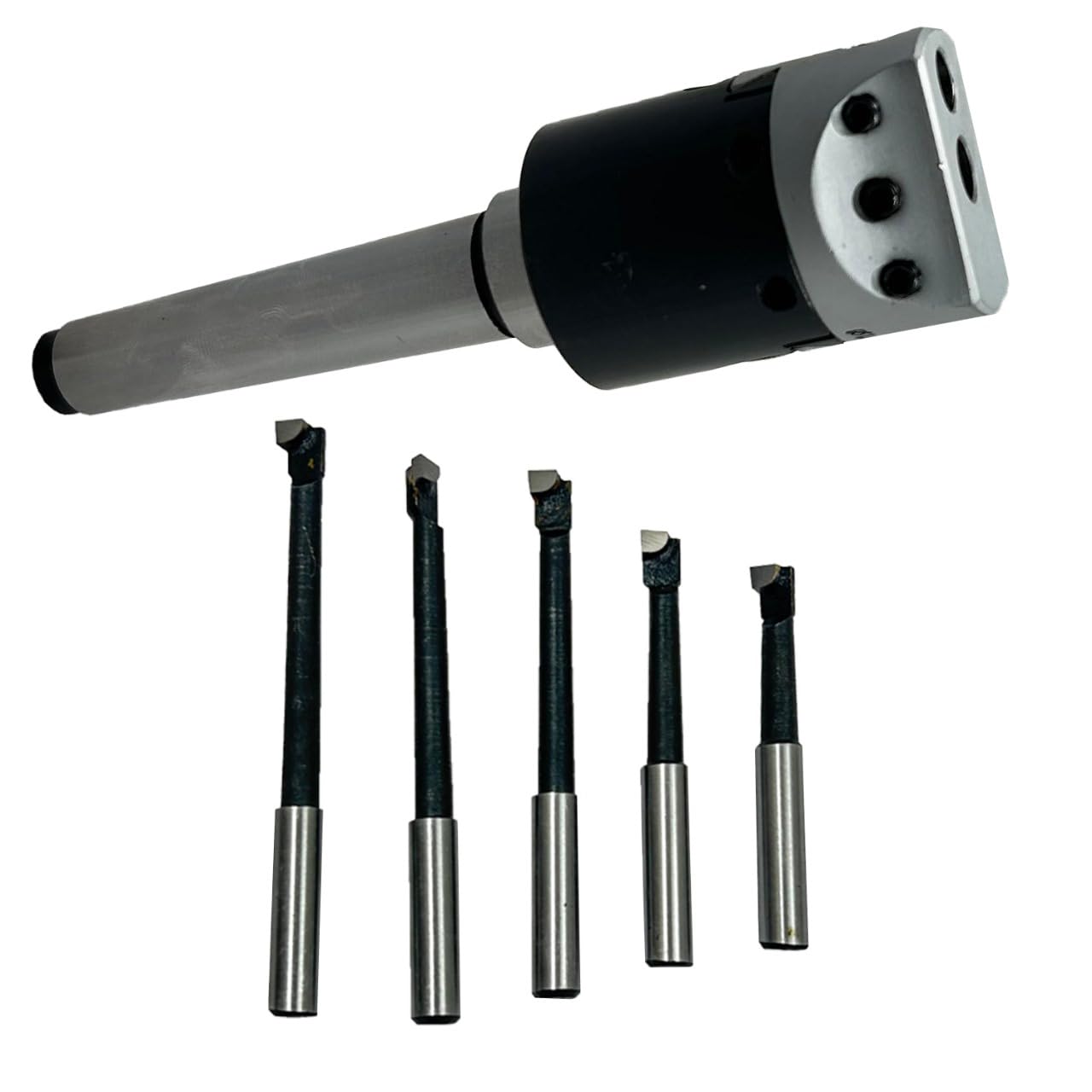

Product Introduction: Designed for accurate internal machining operations in CNC lathes and milling machines. Featuring an MT2 Morse taper shank and a robust M10 x 1.5 drawbar system, it ensures secure and stable mounting. The unit includes five interchangeable carbide boring bars, allowing for versatile diameter adjustments from 15mm to 40mm. Ideal for precision boring applications in metalworking industries.
| Attributes & Specs | |
|---|---|
| Taper Size | MT2 |
| Head Diameter | 40MM |
| Shank Type | Morse Taper |
| Customized support | OEM |
| Applicable Insert | Vnmg160408 |
| Min Diameter | 15 |
| Insert Clearance Angle | 7° |
| Insert Shape | 90° Rectangular |
| Finish Type | Uncoated |
| Diameter | 15MM |
| Coolant Fed | Non-Coolant Through |
| Warranty | 3 Years |
| Cutting Edge Length | 20mm |
| Overall Length | 250 mm |
| Material | High Speed Steel or Alloy Tungsten Carbide Cobalt |
| Best Sellers Rank | 2198286 in Tools Home Improvement (1024 in Boring Drill Bits) |
| Cutting Direction | Neutral |
| Cutting Speed | 280 M/Min |
| Brand | ASSORTS |
| Type | Indexable Drill Bit |
| System of Measurement | in |
| Precision | ±10 μm |
| Effective Cutting Depth | 20mm |
| Cutting Application | Boring |
| Number Of Inserts | 1 |
| Cutting Diameter | 38.1 Millimeters |
This precision boring head features an MT2 (Morse Taper 2) shank with an M10 x 1.5 drawbar thread, ensuring secure mounting for CNC milling and lathe operations.
It supports a minimum boring diameter of 15mm up to a maximum boring diameter of 40mm, with an effective cutting depth of 20mm.
It is designed to be compatible with VNMG160408 inserts and features a 90° rectangular indexable geometry for optimal chip removal and cutting stability.
Thanks to its robust construction of high-speed steel and alloy tungsten carbide cobalt, it is highly versatile and suitable for machining steel, aluminum, and cast iron.
No, this boring head is designed with a non-coolant-through style. External coolant should be applied during high-speed operations if necessary.
This unit delivers high-precision results, achieving a dimensional accuracy of ±10 μm, making it ideal for tight-tolerance industrial machining.
