Within high-performance machining environments, the selection of workholding devices significantly influences the geometrical stability, concentric accuracy, and throughput rate of components. The scroll chuck, recognized as a fundamental engineering achievement in lathe operations, utilizes an Archimedean spiral configuration to actuate its jaws simultaneously. This self-centering capability ensures rapid setup times and reliable centering alignment. This makes it an ideal option for cylindrical stock and automated workpieces in both metalturning and woodworking sectors.
Our scroll chucks feature a runout tolerance range of 0.03mm (Pro models) to 0.05mm (Standard configurations). The alignment of the internal scroll plate and the hardening profiles of the jaw teeth are critical factors in limiting radial deviation under high rotational speeds.
Standard manual scroll chucks rely on a pinion gear system that interfaces directly with a spiral scroll ring. As the operator turns the chuck wrench, the pinion transfers torque to the scroll plate, which moves all three or four jaws inward or outward synchronously. Shandong Ricon Tools has redesigned this interface to reduce backlash and minimize wear patterns over prolonged operational cycles.
We use chromium-molybdenum alloy steels for the scroll gears, combined with deep case-hardening heat treatment processes. This limits deformation under maximum clamping forces, allowing our tools to handle high torque inputs on CNC lathes and milling machines without slipping.
Shandong Ricon Tools Co., Ltd. is a professional manufacturer specializing in the research, development, production, and sales of precision machine tool accessories.
Since its establishment, Ricon Tools has been committed to providing high-quality tooling solutions for the global metalworking and woodworking industries. Our product portfolio includes a wide range of precision machine tool accessories, such as 4-jaw woodworking chucks, American quick-change tool holders, VDI tool holders, boring heads, ER collet chucks, milling chucks, drill chucks, tool holders, CNC tooling accessories, and other precision machining components. Our products are widely used in CNC machining centers, lathes, milling machines, woodworking machinery, and various industrial manufacturing applications.
To ensure consistent product quality and manufacturing efficiency, Ricon Tools has invested in advanced CNC machining equipment, precision grinding machines, inspection instruments, and automated production facilities from both domestic and international suppliers. Supported by an experienced technical team and a strict quality management system, every product is manufactured with high precision, excellent durability, and reliable performance to meet the demanding requirements of customers around the world.
With years of experience in the machine tool accessories industry, Ricon Tools has established long-term partnerships with customers across numerous industries. Our products are well recognized in the domestic market and are exported to more than 30 countries and regions, including the United States, Canada, Germany, Italy, Russia, Australia, Southeast Asia, the Middle East, and South America. We have earned an excellent reputation for superior quality, competitive pricing, on-time delivery, and professional customer service.
Driven by the philosophy of "Quality First, Innovation Driven, Customer Focused," Shandong Ricon Tools Co., Ltd. continuously invests in technological innovation, product development, and manufacturing excellence. We are dedicated to providing customers with reliable products, customized solutions, and comprehensive technical support.
Looking ahead, Ricon Tools will continue to strengthen its global presence, pursue continuous innovation, and create greater value for customers worldwide. We sincerely welcome partners from around the world to establish long-term cooperation and achieve mutual success.
Operating a modern factory in the Shandong manufacturing corridor requires integrating advanced automation with ERP control systems. At Ricon Tools, we utilize automated horizontal CNC machining lines and multi-axis grinding setups to maintain consistent production runs. This is critical for high-volume orders from OEM and ODM buyers globally.
Our Industry 4.0 upgrades incorporate inline coordinate measuring machines (CMM) and dynamic balance testers. This helps ensure that heavy-duty 3-jaw and 6-jaw scroll chucks meet G2.5 balance grades, preventing vibrations that can damage machine spindles. Automated logistics management secures raw material supplies of alloy forgings and cast iron billets, ensuring stable pricing and predictable delivery timelines during supply chain challenges.
| Chuck Type | Body Material | Jaw Hardness (HRC) | Radial Runout Max | Primary Application |
|---|---|---|---|---|

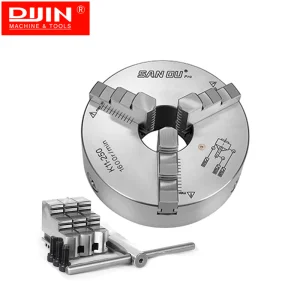

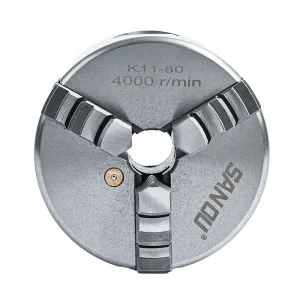

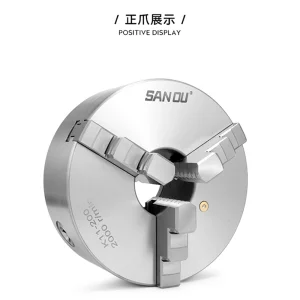

| K11 Series (3-Jaw) | Premium Cast Iron / Forged Steel | 58 - 62 HRC | ≤ 0.05 mm | Metal Turning, Pipe Machining |
| K72 Series (4-Jaw) | Ductile Iron / Cast Steel | 50 - 55 HRC | ≤ 0.08 mm (Independent) | Asymmetric Part Clamping |

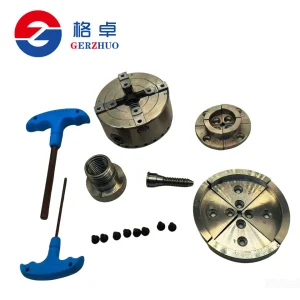

| KP Woodworking Series | Alloy Carbon Steel | 45 - 50 HRC | ≤ 0.05 mm | Wood Turning, Bowl Boring |
| K13 Series (6-Jaw) | High Tensile Alloy Steel | 58 - 62 HRC | ≤ 0.03 mm | Thin-Walled Pipe & Shell Turning |
Different manufacturing sectors require specific workholding setups. A standard cast-iron chuck may perform well in woodworking, but precision aerospace machining demands specialized materials and tolerances:
Workholding technology is evolving to support connected smart factories. Shandong Ricon Tools is researching and testing the next generation of scroll chucks:
Industrial distributors and procurement officers must manage duty tariffs, transit times, and regional safety compliance. Ricon Tools provides comprehensive export documentation, including CE certification, ISO 9001 quality certificates, and customized packaging options for marine, rail, or air transit.
Our partnerships with global logistics hubs ensure reliable delivery to main ports in North America, Western Europe, and South America, helping buyers optimize their inventory and procurement processes.
Synchronous alignment of internal jaw guides ensures reliable clamping force distribution across cylindrical and complex profiles.
Constructed with high-strength alloy iron and vacuum heat-treated tool steels to resist impact damage during operation.
Manufactured to international ISO, DIN, and ANSI dimensions to fit standard lathes and milling machines.
