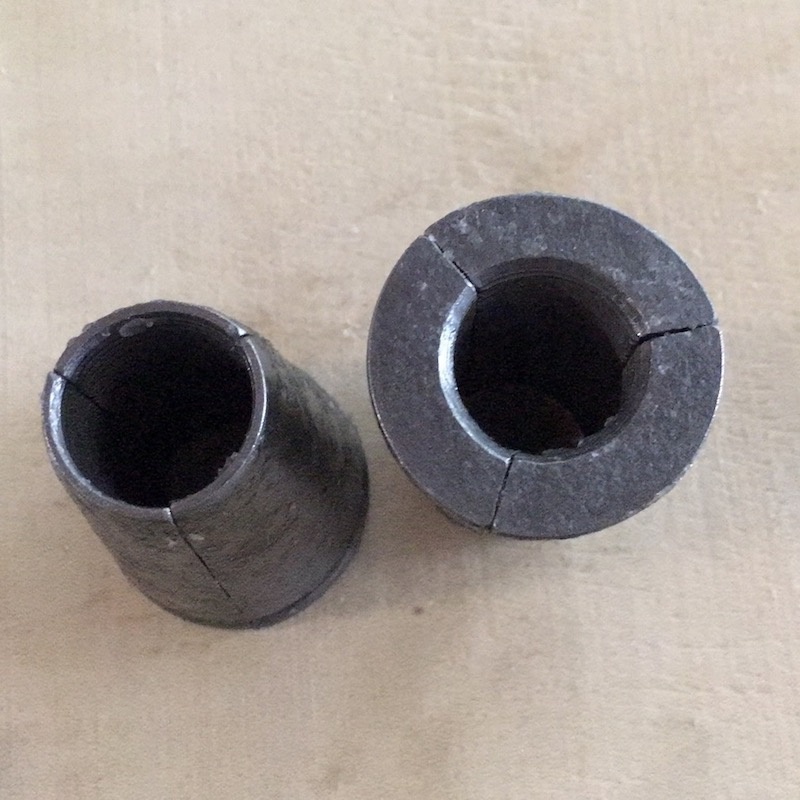

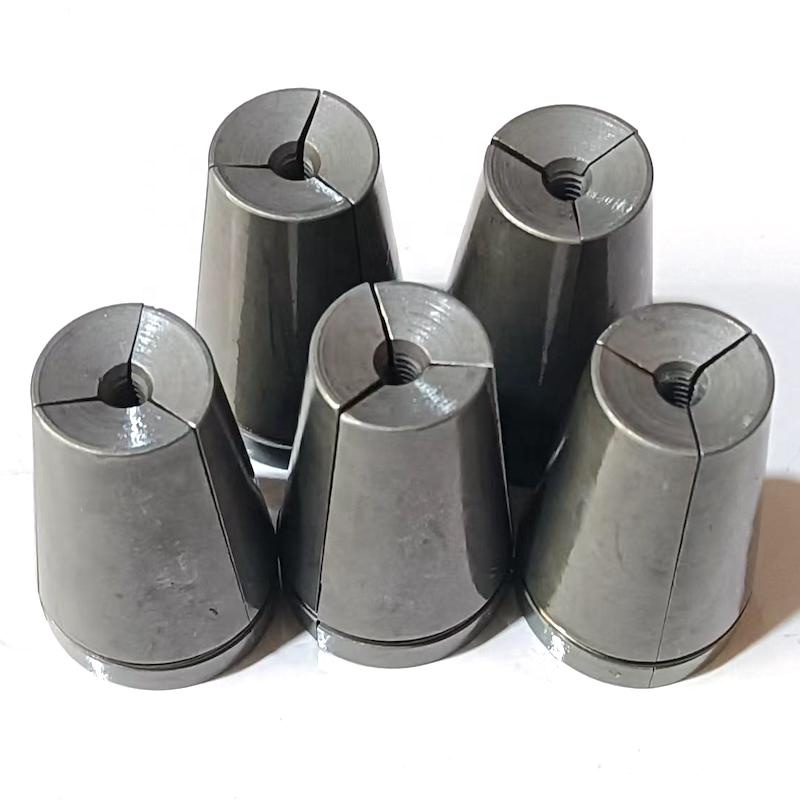

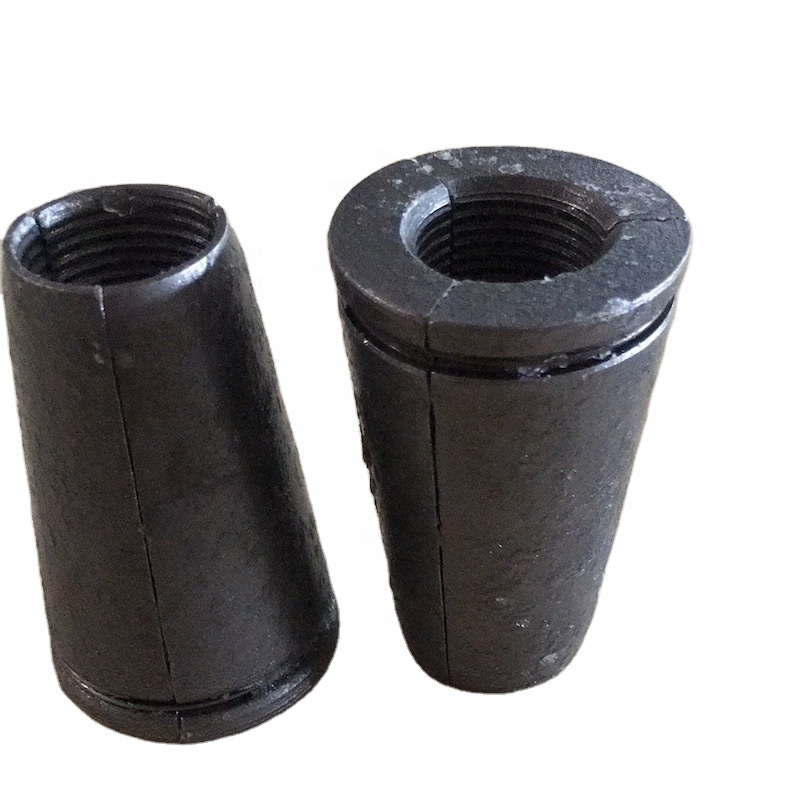

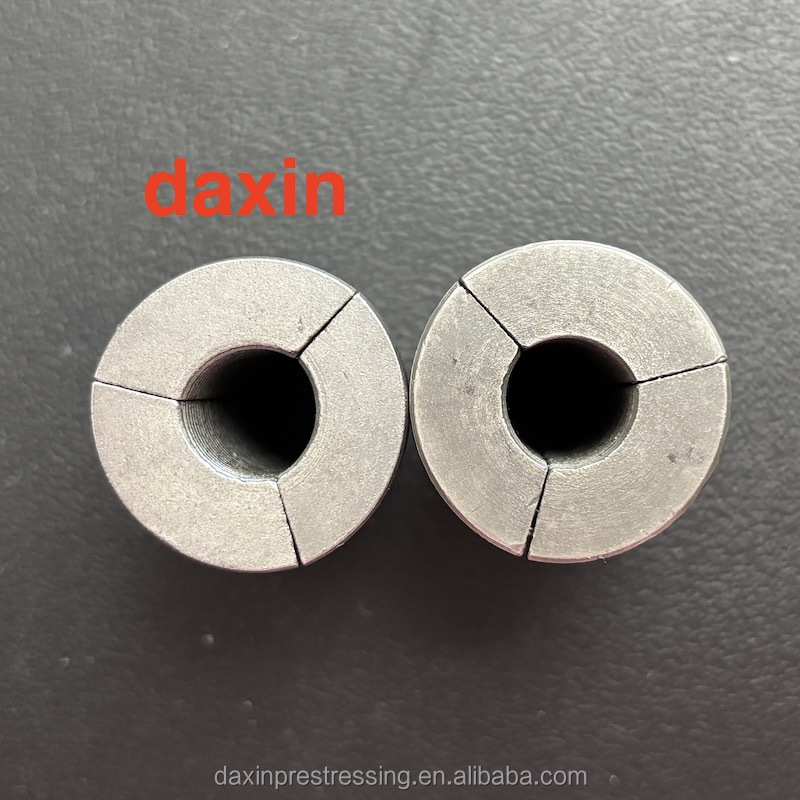

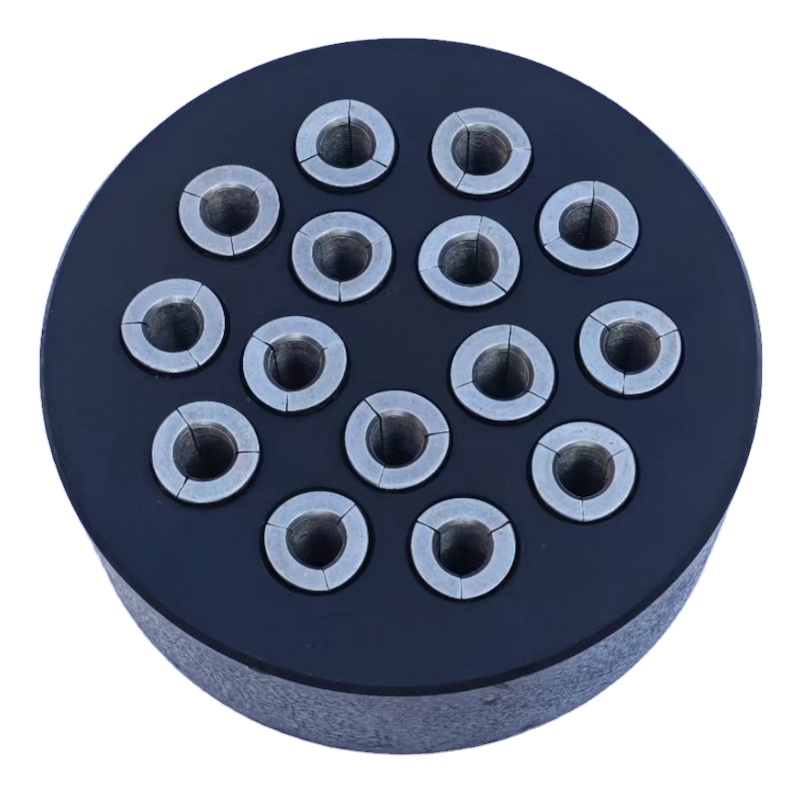

Raw material grade is 20CrMnTi, available in 2-part and 3-part types. Widely suitable for PC Wire (4mm-11mm) and PC Strand (12.7mm, 15.24mm, 15.7mm, 17.8mm, and 21.6mm). Custom manufacturing is available based on your drawings or samples, with options for logo engraving and complimentary testing samples.
| Barrel raw material | 40Cr |

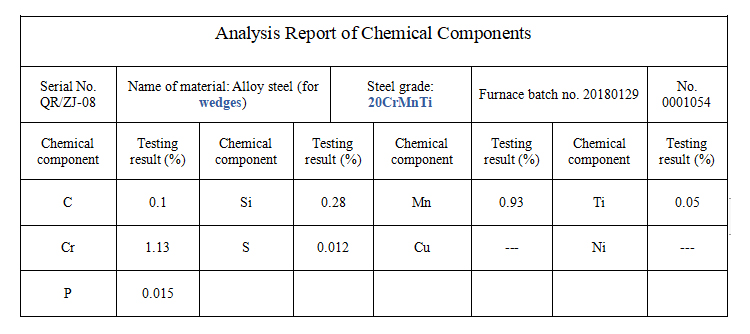

| Wedge raw material | 20CrMnTi; 20CrMn5 |
| Hardness of anchor (HRB) | 25-35 |
| Wedge Surface Hardness | HRA79-84 |
| Wedge Core Hardness | HRC38-46 |
| Carburization Layer Depth | 0.35-0.6mm / 0.6-0.8mm |
| Anchor Efficiency Coefficient η a | η ≥ 0.95 |
| With-draw of wedge after stressing | ≤ 6mm |
| Tempered | 1-4 |
| Retained Austenite | 1-4 |
| Inspection of Appearance | Tooth shape without defects, bad teeth, or variants |
| Standard | GB/T2301-2004 |
The anchor barrels are manufactured from high-quality 40Cr steel, whereas the wedges utilize durable 20CrMnTi or 20CrMn5 alloy steel to guarantee maximum structural integrity and reliable grip under high stress.
They are highly versatile and engineered to support PC Wires ranging from 4mm to 11mm, as well as PC Strands with diameters of 12.7mm, 15.24mm, 15.7mm, 17.8mm, and 21.6mm.

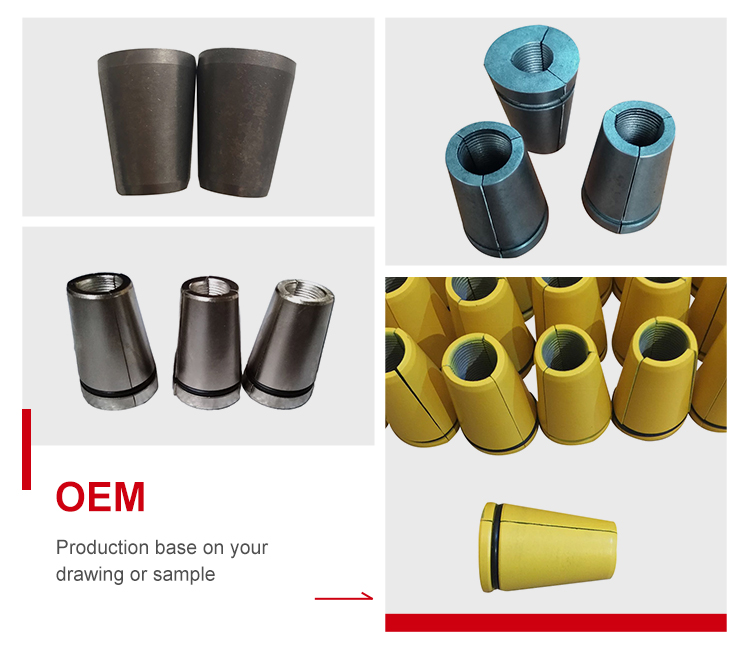

Yes, we provide full custom manufacturing services. We can produce items precisely according to your technical drawings or physical samples, and we can engrave custom logo lettering upon request.

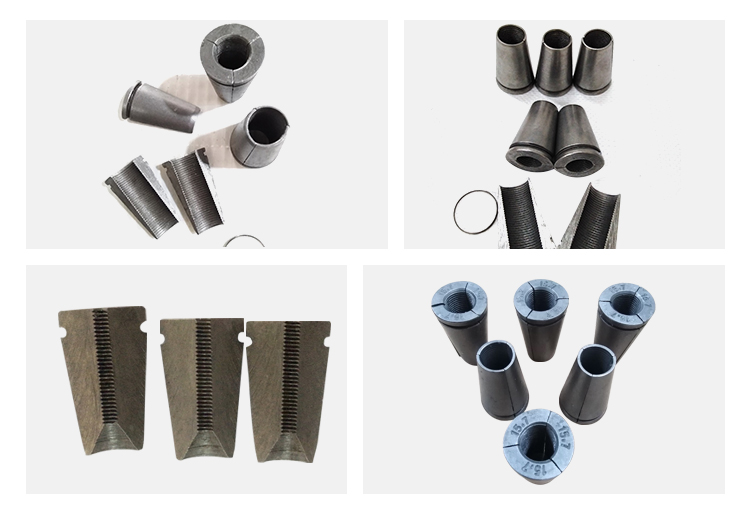

The wedges feature a surface hardness of HRA79-84 and a core hardness of HRC38-46. The carburization layer depth ranges from 0.35-0.6mm or 0.6-0.8mm, ensuring optimal wear resistance and toughness.
Yes, our anchorages are manufactured and inspected in accordance with the GB/T2301-2004 standard. They feature an anchor efficiency coefficient (η a) of η ≥ 0.95 and ensure a wedge draw-in of ≤ 6mm after stressing.
