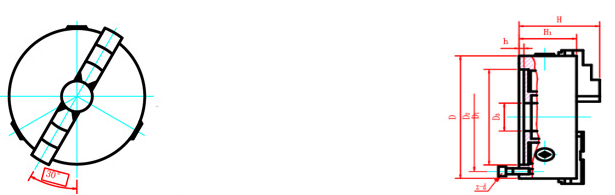

| Model Size D | D1 | D2 | D3 | H | H1 | h | Z-d |
|---|---|---|---|---|---|---|---|
| K10160 | 130 | 142 | 40 | 95 | 65 | 5 | 3-M8 |
| K10160A | 130 | 142 | 40 | 109 | 65 | 5 | 3-M8 |
| K10165 | 130 | 145 | 40 | 96.5 | 66.5 | 4.5 | 3-M8 |
| K10165A | 130 | 145 | 40 | 110.5 | 66.5 | 4.5 | 3-M8 |
| K10200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 |
| K10200A | 165 | 180 | 65 | 122 | 75 | 5 | 3-M10 |
| K10200C | 165 | 180 | 65 | 122 | 75 | 5 | 3-M10 |
| K10250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 |
| K10250A | 206 | 226 | 80 | 136 | 80 | 5 | 3-M12 |
| K10250C | 206 | 226 | 80 | 130 | 80 | 5 | 3-M12 |
| K10315 K10315A |
260 | 285 | 100 | 142.5 | 90 | 6 | 3-M16 |
| 155.5 | |||||||
| K10315C | 260 | 285 | 100 | 155.5 | 90 | 6 | 3-M16 |
| K10320 K10320A |
270 | 290 | 100 | 142.5 | 90 | 6 | 3-M16 |
| 155.5 | |||||||
| K10320C | 270 | 290 | 100 | 155.5 | 90 | 6 | 3-M16 |
| K10325 K10325A |
272 | 290 | 100 | 142.5 | 90 | 6 | 3-M16 |
| 155.5 | |||||||
| K10325C | 272 | 290 | 100 | 155.5 | 90 | 6 | 3-M16 |
| K10380 K10380A |
325 | 350 | 130 | 155.5 | 100 | 6 | 3-M16 |
| 171.5 | |||||||
| K10380C | 325 | 350 | 130 | 164.5 | 100 | 6 | 3-M16 |
| K10400 K10400A |
340 | 368 | 130 | 155.5 | 100 | 6 | 3-M16 |
| 171.5 | |||||||
| K10400C | 340 | 368 | 130 | 164.5 | 100 | 6 | 3-M16 |
Send your inquiry in the below, click "send" now !

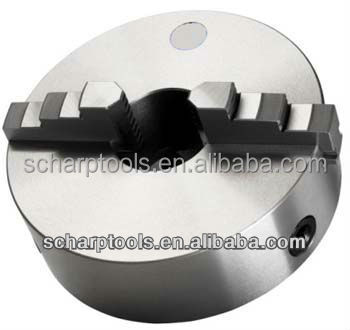

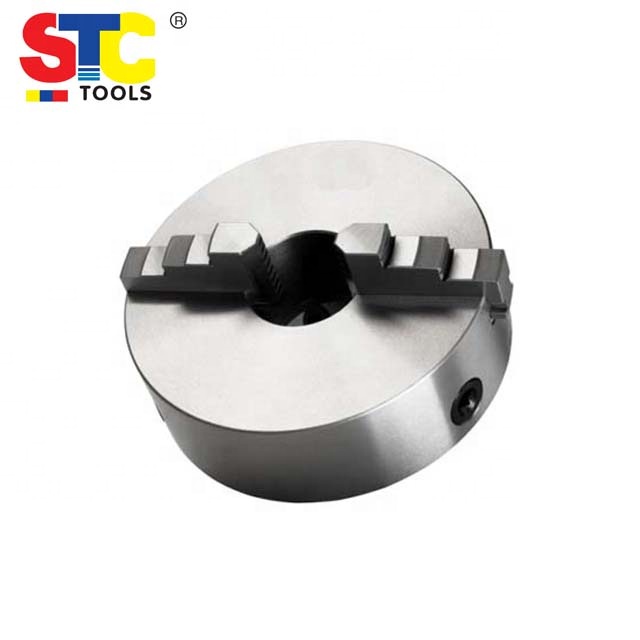

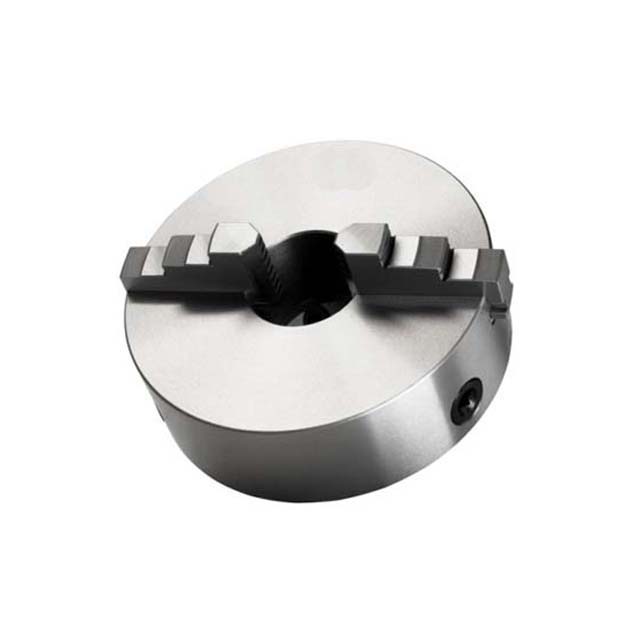

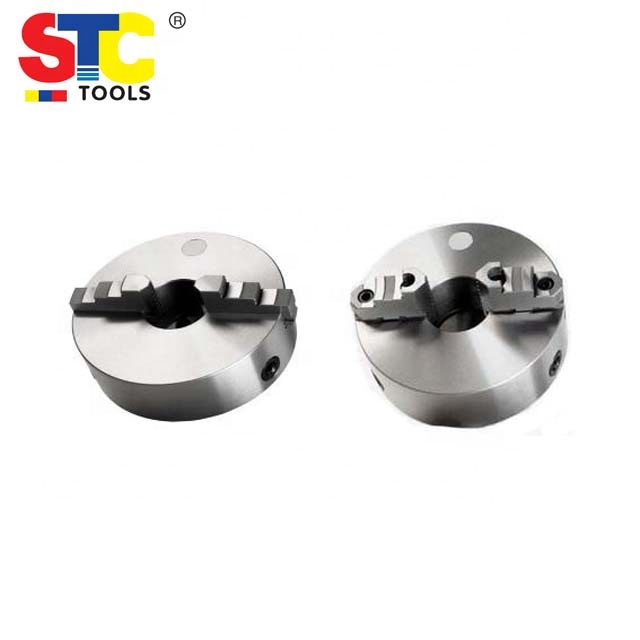

The K10 series two-jaw self-centering chuck is designed with separate soft clutches, making it ideal for clamping and processing special-shaped workpieces such as tubes, rectangular section accessories, and other non-standard profiles.
The K10 self-centering chuck is available in standard sizes ranging from 160mm up to 400mm to accommodate a wide variety of machine setups and workpieces.
Yes, customers can change or modify the soft clutches to specific holding designs according to their specific application needs.
Higher centering accuracy can be achieved after the clutches are rubbed or customized directly on the machine tool where the chuck is mounted.
These letters denote variations in structural design parameters such as total height (H), internal configuration, or mounting characteristics as detailed in the technical specifications table.
