Precision modular Wedge clamping element OK Wedge clamps modular single vise Pneumatic locking block side pressure positioning

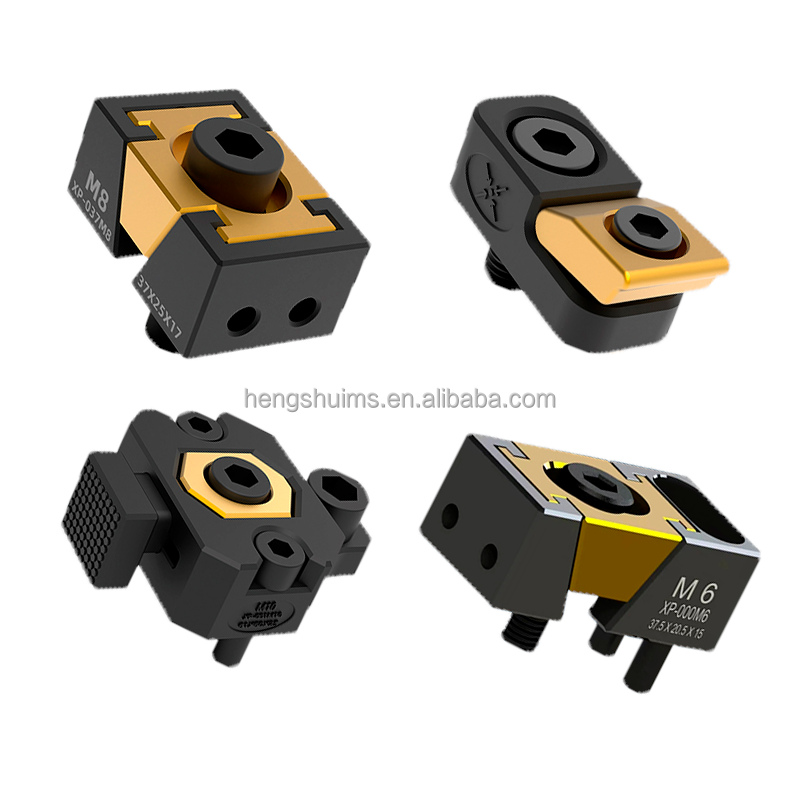

Precision Modular Wedge Clamp
Product Description
If you need to customize other specifications and other machine accessories, please contact me.
Customized support OEM
Model Number M6 M8 M10 M12 M14 M16
Power Manual
Number of Jaws Other
Material Steel
Wedge Clamp Image 1

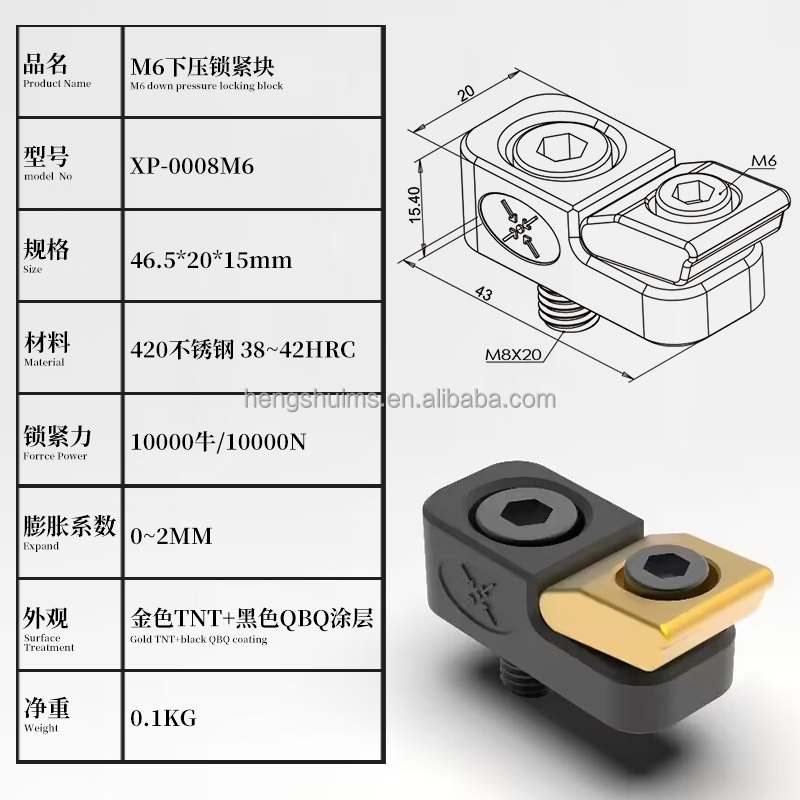

Wedge Clamp Image 2

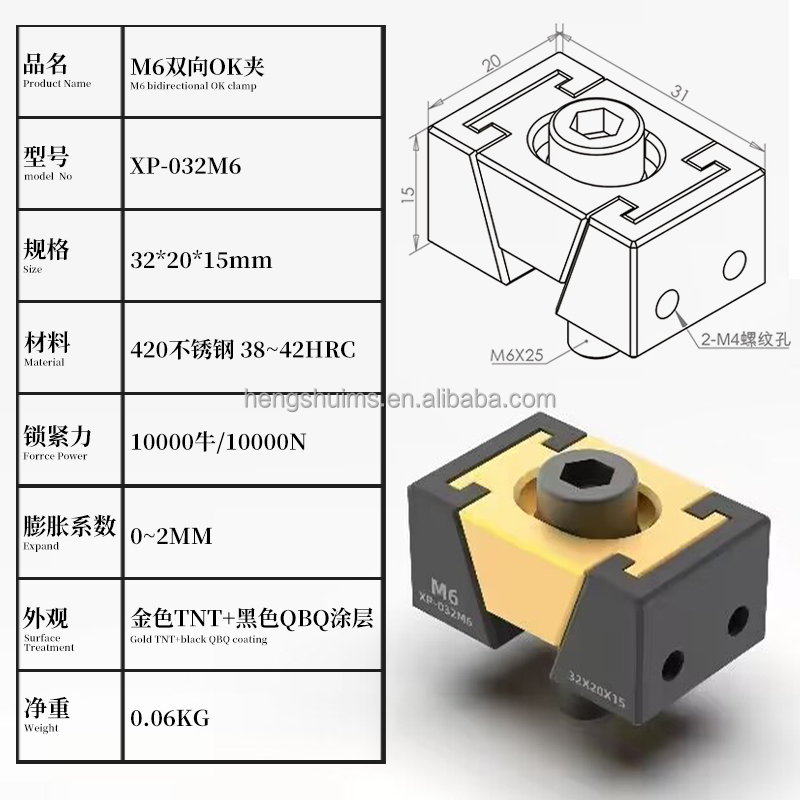

Wedge Clamp Image 3

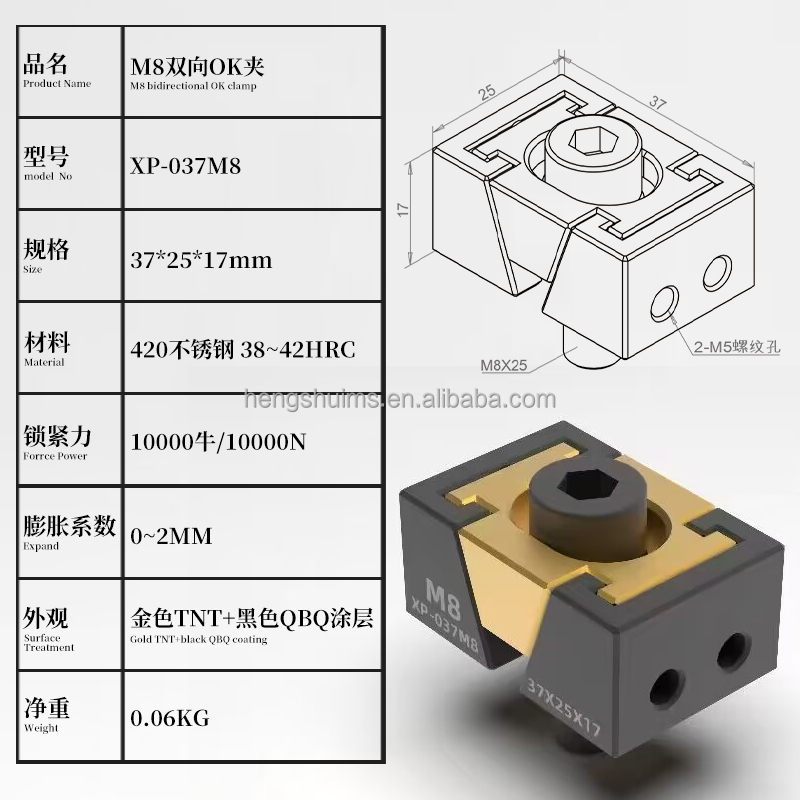

Wedge Clamp Image 4

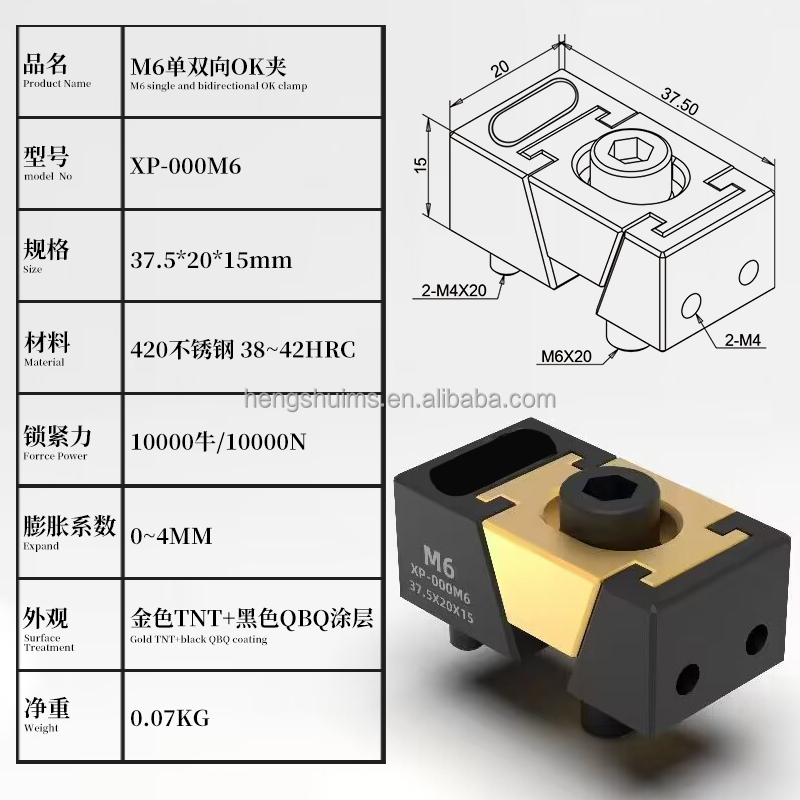

Wedge Clamp Image 5

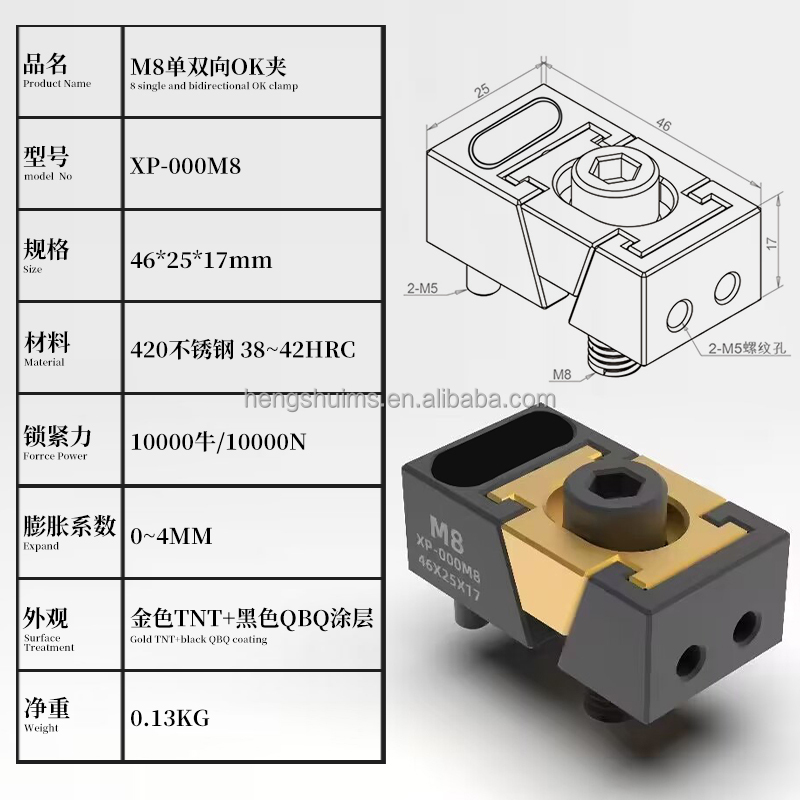

Wedge Clamp Image 6

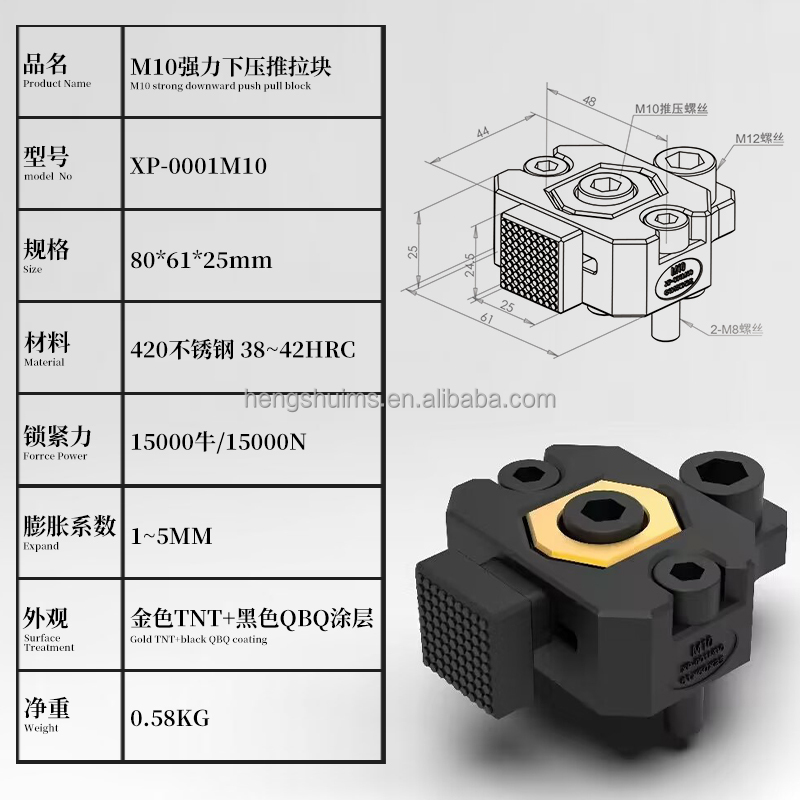

Wedge Clamp Image 7
Wedge Clamp Image 8
Wedge Clamp Image 9
FAQ
FAQ
What is a modular wedge clamp used for?
Modular wedge clamps are high-precision fixture elements designed for holding workpieces securely during machining operations such as CNC milling, drilling, and grinding. They apply lateral force to lock workpieces from the side, saving valuable top surface space.
Do you support customized specifications?
Yes, we offer OEM support and customized services for specific sizes, machine accessories, and configurations. Please provide your technical specifications and requirements.
What model sizes are available for these clamps?
Our standard modular wedge clamps are available in model numbers M6, M8, M10, M12, M14, and M16, allowing compatibility with various T-slot sizes and setups.
What is the primary material of the wedge clamp?
The modular single vise and wedge elements are constructed from premium hardened steel, ensuring excellent wear resistance, long service life, and stable clamping force under heavy-duty operations.
Does the system require pneumatic connections?
Our standard model operates on manual power, but we also support configurations for pneumatic locking blocks depending on your setup and efficiency needs.
