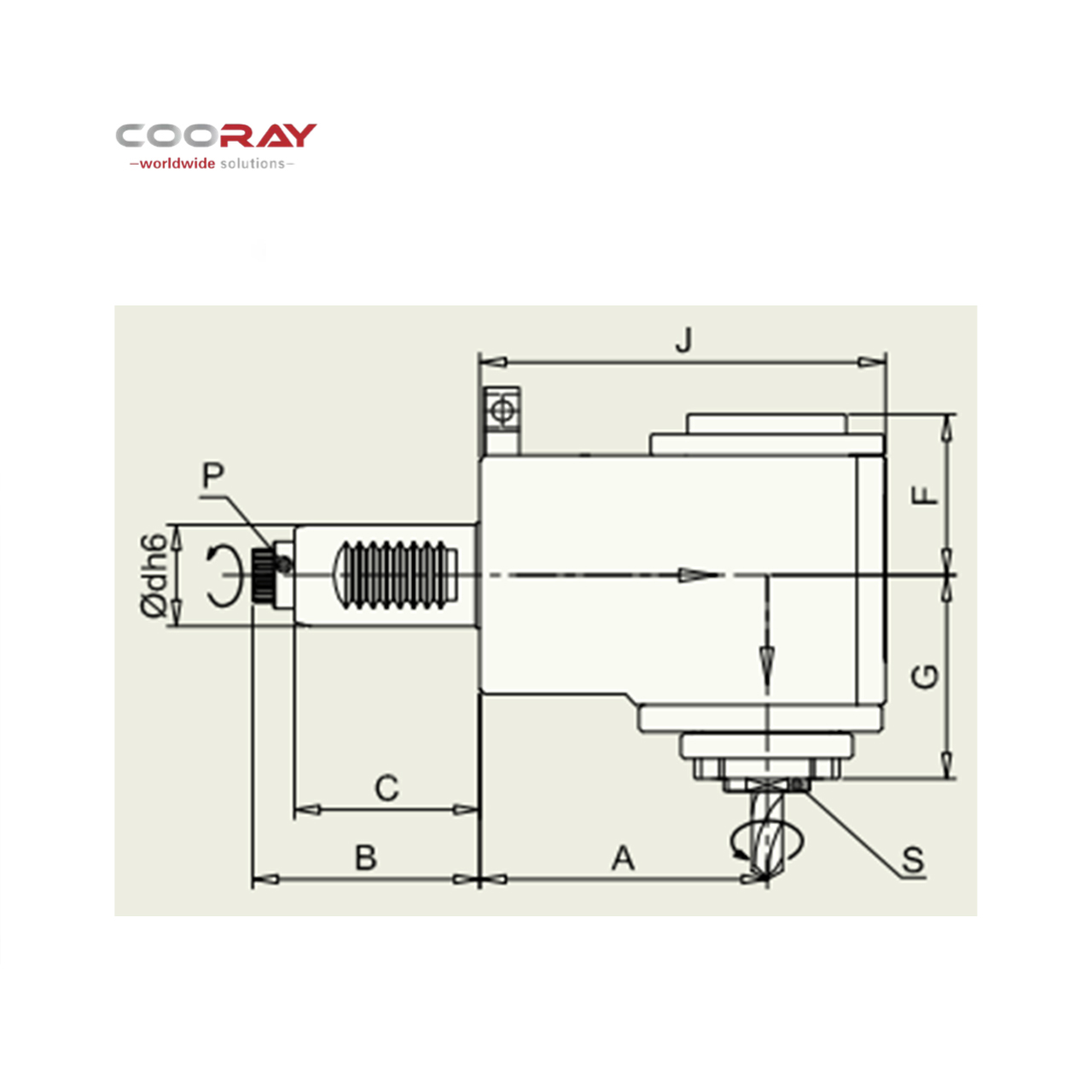

| ARTICLE NO. | φdh6 | A | B | C | E | F | G | OX |
|---|---|---|---|---|---|---|---|---|
| S(DIN 6499) | i | N max RPM | T Nm | P | SD5901 | 16 | 65 | 32 |
| 21 | 25 | 21 | 21 | 1-7 | ER11 | 1:1 | 6000 | W8X0.8X30°X8-9b |
| SD6002 | 20 | 94 | 51 | 40 | 30 | 30 | 27 | 1-13 |
| ER20 | 1:1 | 6000 | 10 | W10X0.8X30°X11-9b | SD6106 | 30 | 94 | 55 |
| 30 | 30 | 30 | 28 | 1-13 | ER20 | 1:1 | 6000 | W16X0.8X30°X18-9b |
This series of collet chucks strictly follows the DIN 6499 standard, ensuring compatibility with standard industrial ER11 and ER20 collet systems.
According to the technical specifications, these tool holders are rated for a maximum speed of up to 6000 RPM, maintaining stability and high performance during operation.
The ER11 model supports a clamping range from 1-7 mm, while the ER20 model supports a clamping range from 1-13 mm, covering a wide array of machining requirements.
Every product undergoes comprehensive testing in our inspection facilities, utilizing high-precision measuring instruments to guarantee optimal runout accuracy and durability.
Each tool holder is carefully packed in an individual protective casing with rust-preventive measures to ensure they arrive in perfect condition at your facility.
