Product Description

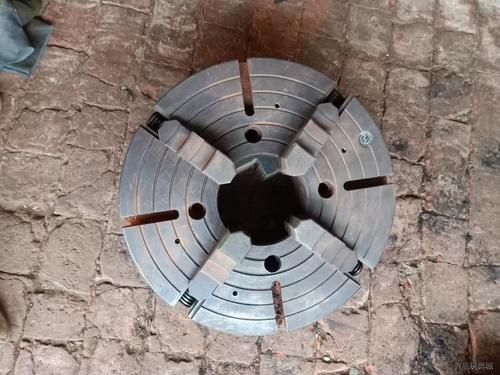

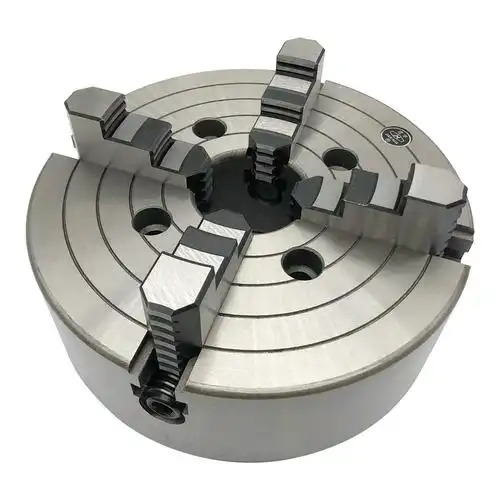

FOUR-JAW INDEPENDENT CHUCKS
SCROLL CHUCKS are used to accurately clamp a workpiece on a lathe for turning operations or can be used on an indexing fixture for milling operations. Manual lathe chucks manually open or close jaws with a screw or pinion. Power lathe chucks use hydraulics, pneumatic or electricity to close the jaws. They have a high gripping accuracy and are designed for mass production.
Key Features
  • Steel Body Construction: The chuck is made of durable steel, ensuring long service life and stability even under heavy loads.
  • Four-Jaw Design: The Four independently adjustable jaws provide excellent gripping power and versatility. They can be adjusted to securely hold a wide range of workpiece shapes and sizes, including square, rectangular, and irregularly shaped objects.
  • Adjustment Functionality: The adjustable jaws allow for precise centering and alignment of the workpiece, ensuring accurate machining and reducing the risk of errors.
  • Scroll Mechanism: The advanced scroll mechanism enables smooth and effortless operation, allowing for quick and easy clamping and unclamping of workpieces.
  • Compatibility: These chucks are compatible with a wide range of machine tools, making them suitable for use in various manufacturing processes.
Applications
  • Ideal for use in metalworking, machining, and engineering industries.
  • Suitable for clamping workpieces for turning, milling, drilling, and grinding operations.
  • Can be used in both small-scale workshops and large industrial production facilities.
Product Specifications
Product Name FOUR-JAW INDEPENDENT CHUCKS
Material Cast Steel
Model Number K72
Jaw 4 jaws
MOQ 10PC
Size 160-500
Usage Fixture/Gripping
Specifications Diagram

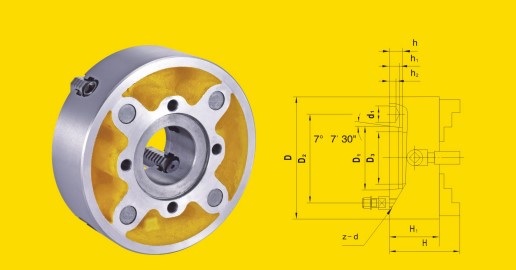

Specification Diagram 1

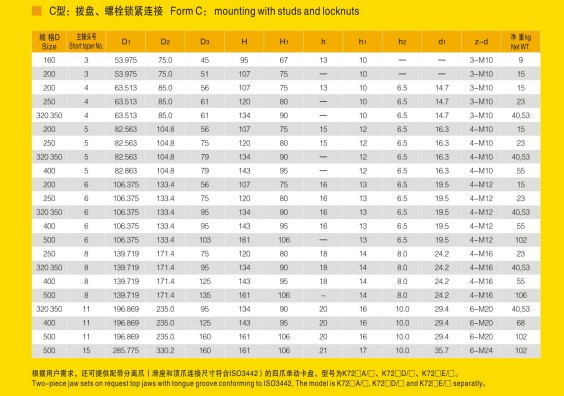

Specification Diagram 2
Reference Picture
Reference Product Image
Quality Control

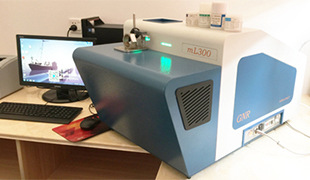

Raw Material Test
Raw Material Test

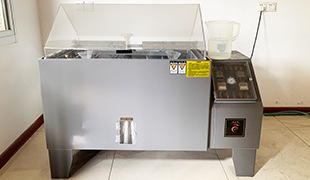

Salt Spray Test
Salt Spray Test

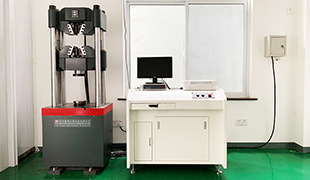

Breaking Load Test
Breaking Load Test
Product Application

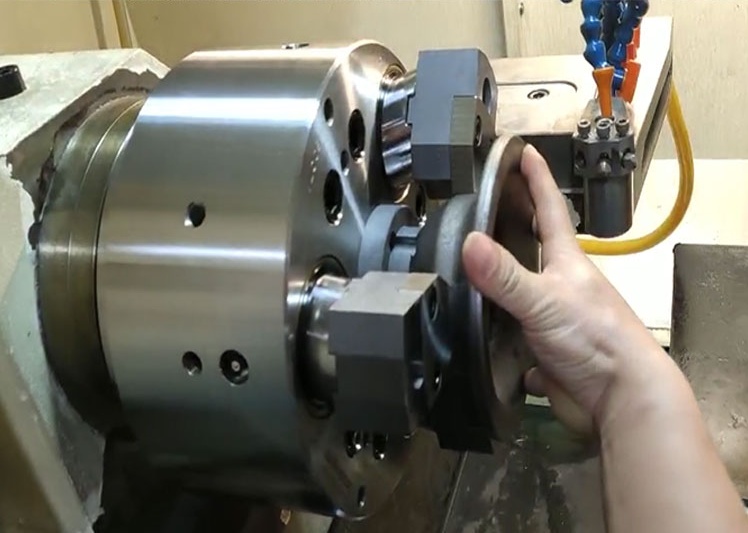

Application Scenario 1

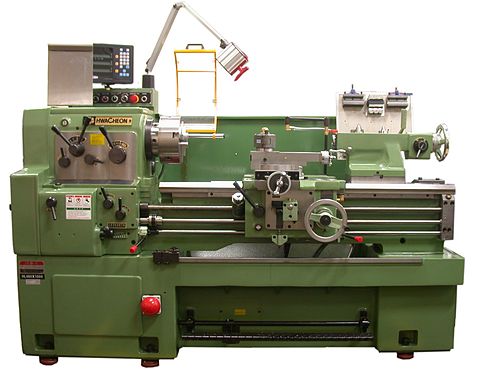

Application Scenario 2
Frequently Asked Questions
What is a manual chuck?

Answer: A device for clamping workpieces manually.

What types of manual chucks are there?

Answer: Three-jaw and four-jaw chucks.

How to adjust the clamping force?

Answer: Use adjustment mechanism.

What materials can it clamp?

Answer: Various metals and some plastics.

How to maintain a manual chuck?

Answer: Keep clean and lubricate regularly.

What are the benefits of a four-jaw independent chuck over a three-jaw chuck?

Answer: It allows each jaw to be adjusted independently, which is ideal for holding square, rectangular, or irregularly shaped workpieces, and for precise centering alignment.
