Galvanized, Hot Dip Galvanized Pole Anchor PointedAdjustable pole anchorpost anchor/post supportscrew pole anchor/ screw ground anchorGround screw anchorMetal Post SpikeDrive-In Post Spike 75 x 75mmEarth Anchorpole ground plate

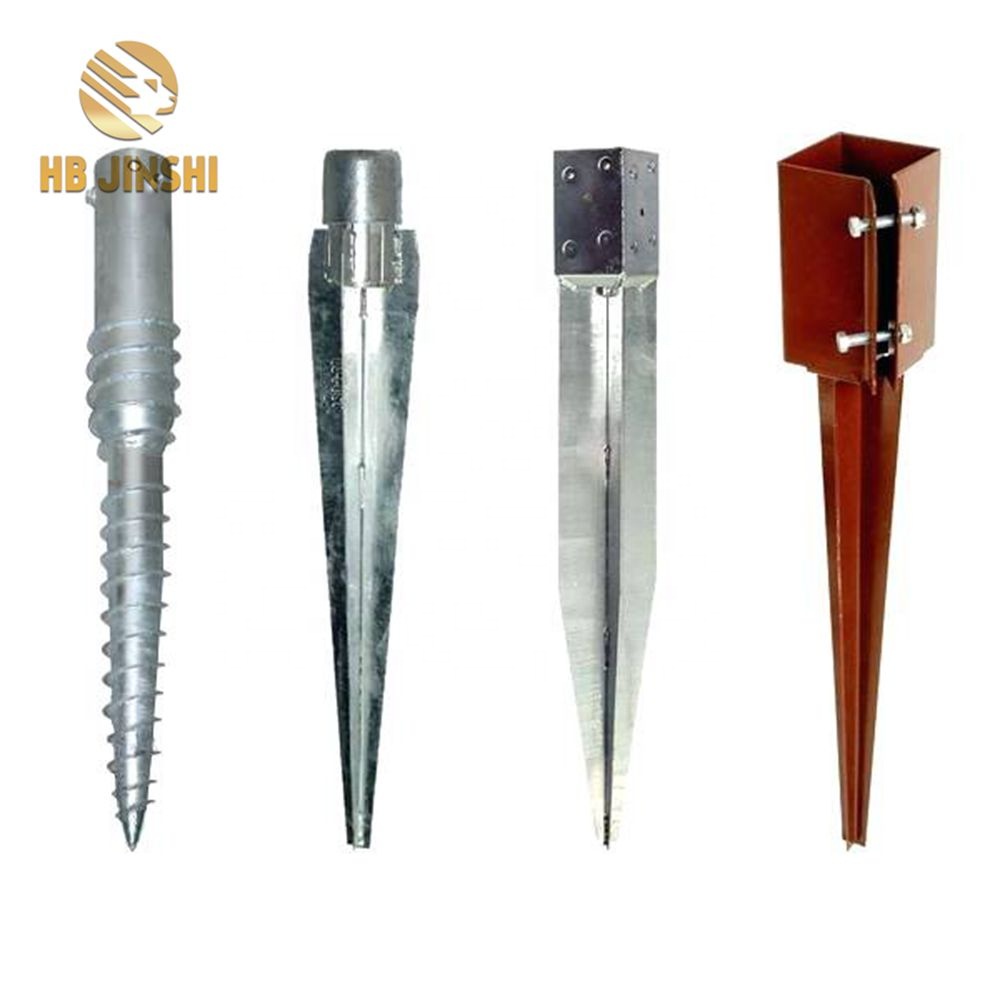

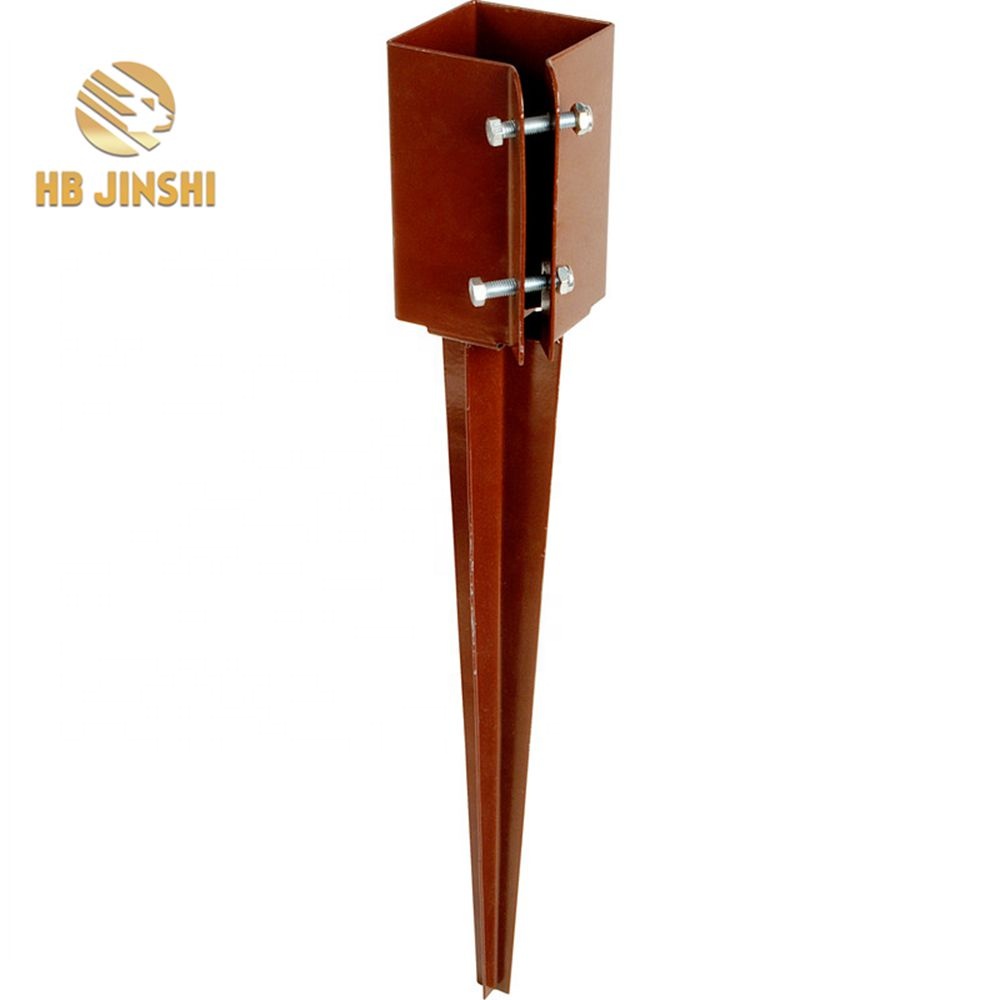

We produce various post anchor in China, such as Square Post Anchor, full stirrup post anchor, half stirrup post anchor, adjustable pole anchor, T-type fence post, U-type post anchor, screw pole anchor and etc.

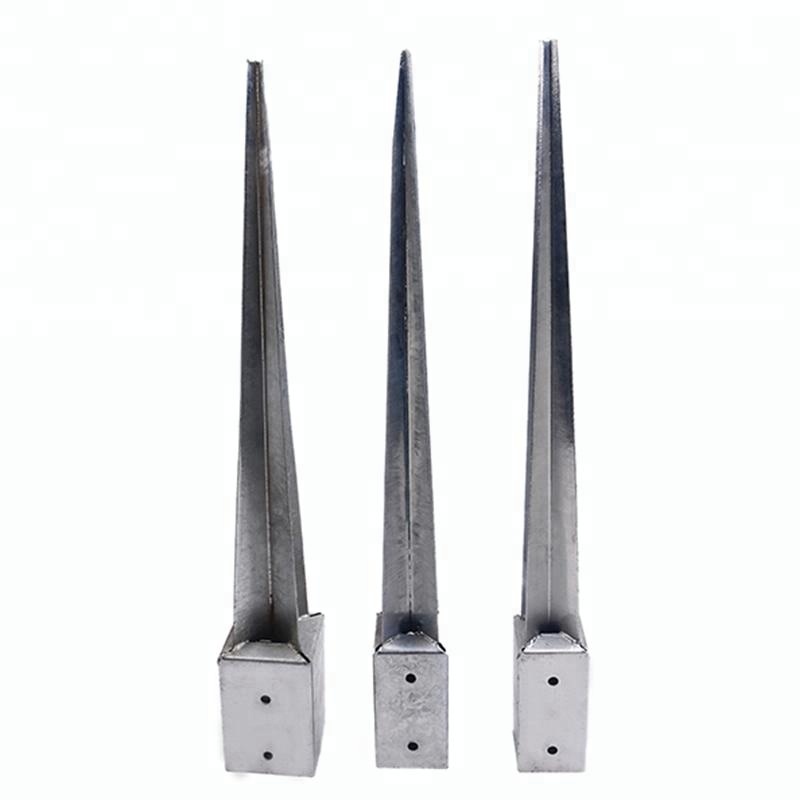

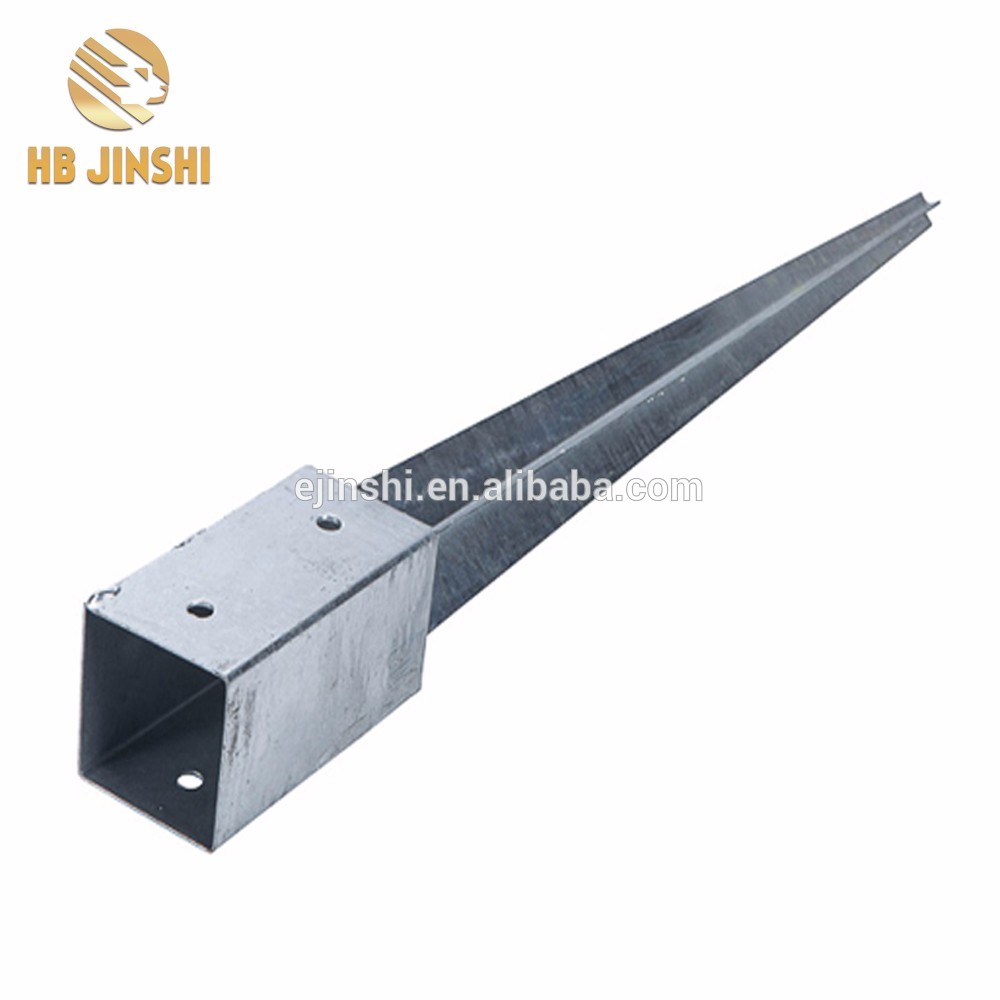

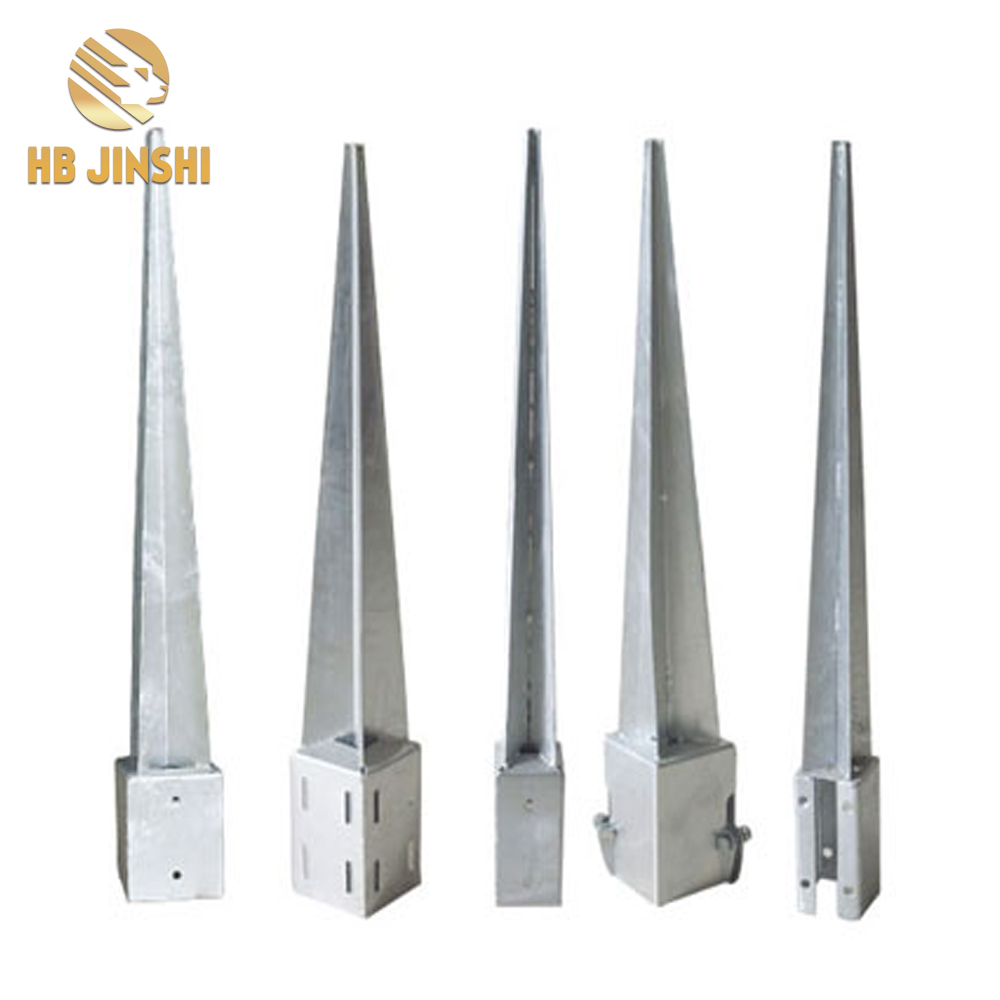

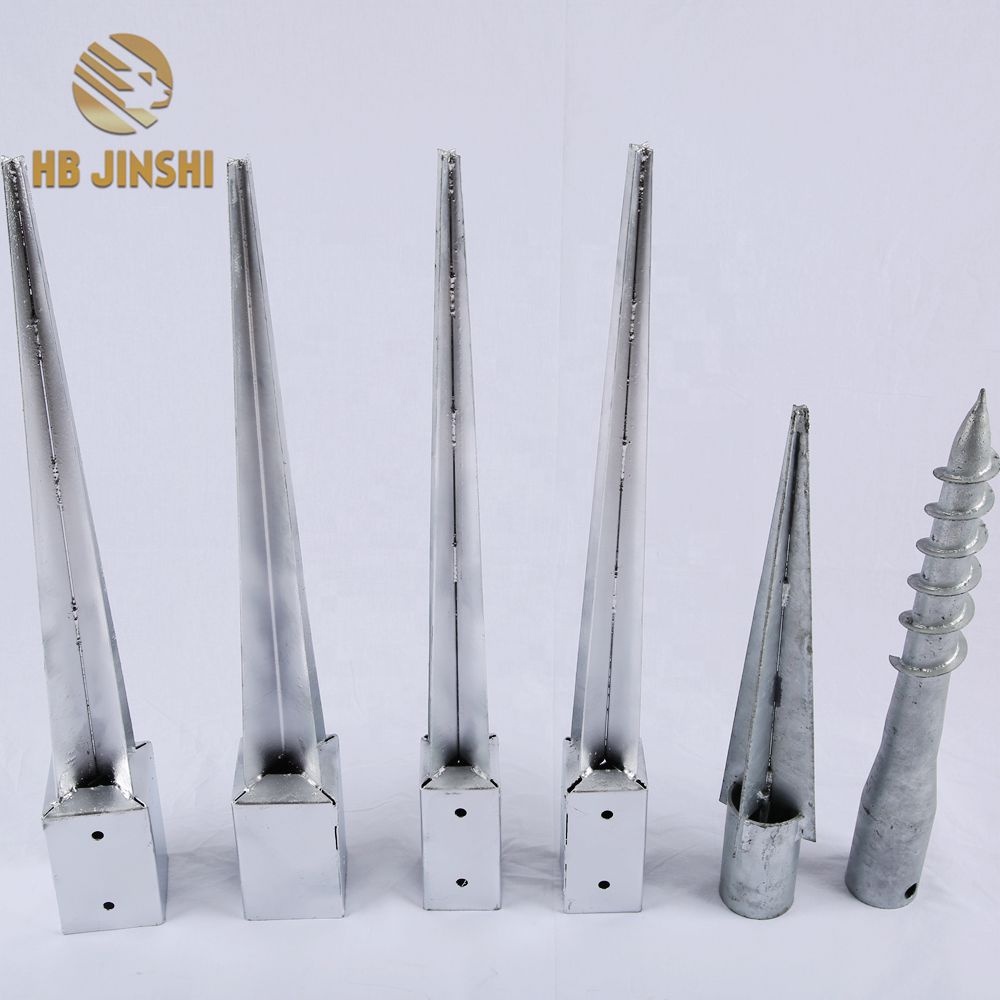

1) Application of Pole Anchor Pointed(soil spike)|Post Spike:
Used in construction to fasten the fence, shaky board room, metal wire mesh, tent, Fence Post Spike, spike pole anchor for solar/flags and so on.
This screw in foundation system is not only suitable for natural ground, but also for dense, and even tarred surfaces.
1. Timber Construction
2. Solar Power Systems
3. City and Parks
4. Fencing Systems
5. Road and Traffic
6. Sheds and Containers
7. Flag Poles and Marks
8. Garden and Leisure
9. Boards and Banners
10. Shaky board room
2) Finish available:
✓ (1) Hot dip galvanized fence post spike
✓ (2) Electrical galvanized pole anchor pointed
✓ (3) Epoxy powder coated in Brown, green, other colors may available upon request.
✓ (4) Painted in Brown, green, red, black and others.
Make the low carbon steel into the galvanized, hot dip galvanized, electrical galvanized pole anchor.
3) Pole anchors pointed (soil fence post spike) Specification:
Item No.
SIZE (mm)
Thickness of plate
A
B
C
PAP01
61*61
750
600
2mm
PAP02
71*71
750
600
2mm
PAP03
71*71
900
750
2mm
PAP04
91*91
750
600
2mm
PAP05
91*91
900
750
2mm
PAP06
101*101
900
750
2.5mm
PAP07
121*121
900
750
2.5mm
PAP08
51*51
600
450
2mm
PAP09
51*51
650
500
2mm
PAP10
51*102
750
600
2mm
PAP11
77*77
750
600
2mm
PAP12
102x102
750
600
2mm
PAP13
75x75
750
600
2mm

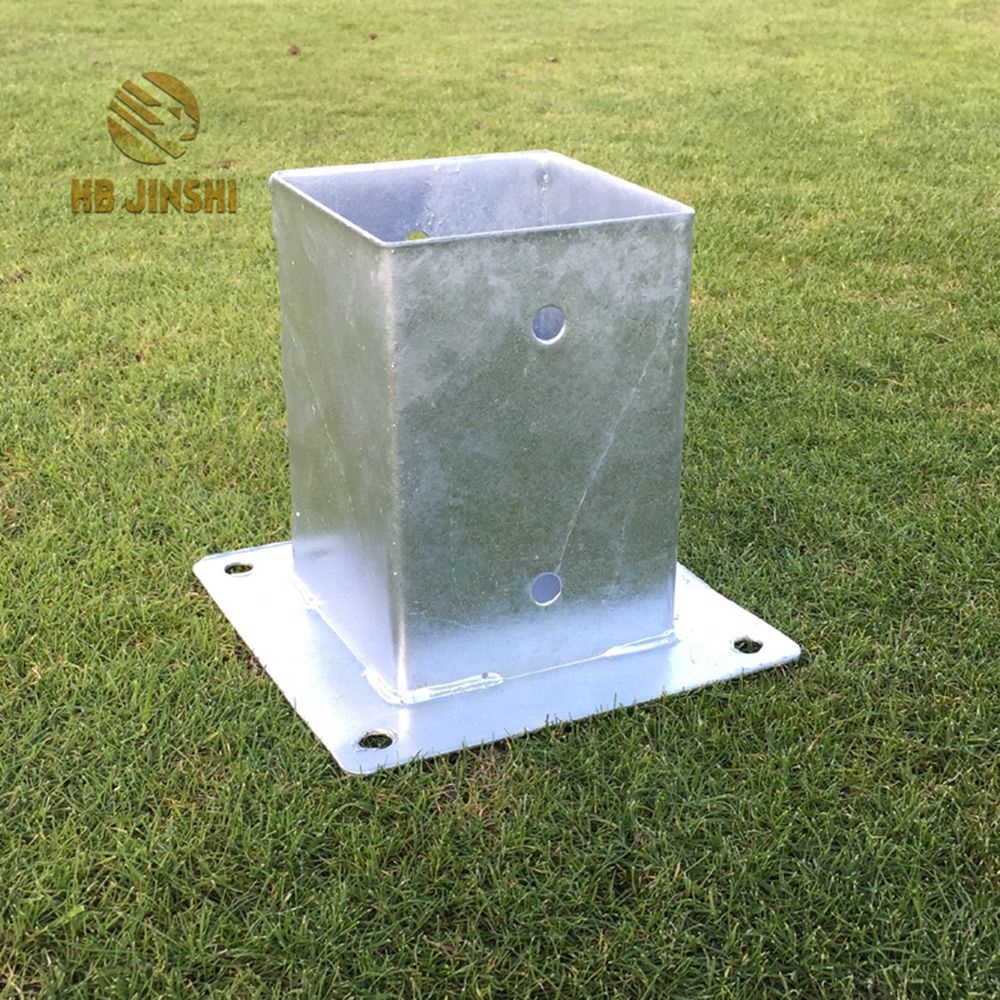

Pole ground plate (Bolt-down):
This ground plate is ideal where circumstances do not allow the anchor to be driven into the ground, such as a concrete base or on decking. This bolt-down design provides an excellent solution. It serves as support for patio fencing, rose arches, etc.
Art. No.
SIZE (mm)
Thickness of plate
A
B
C
PGP01
71*71
39
150
2mm
PAP02
71*71
39
150
2mm
PAP03
91*91
25
150
2mm
PAP04
91*91
25
150
2mm
PAP05
101*101
25
150
2mm
PAP06
50*50
50
150
2mm
PAP07
75*75
39
150
2mm
Frequently Asked Questions (FAQ)
What are the primary applications for these pole anchors?
They are widely used in construction for securing timber structures, solar power systems, fencing, city park facilities, road signposts, flag poles, sheds, and outdoor garden structures.
What finishes are available to prevent rust and corrosion?
We offer hot-dip galvanization, electrical galvanization, epoxy powder coating (available in brown, green, and custom colors), and protective painting finishes.
When should I use a bolt-down ground plate instead of a pointed spike?
A bolt-down ground plate is recommended for concrete surfaces, decks, or any solid foundation where driving a pointed spike directly into the ground is not possible.
Can these screw pole anchors be used in hard or dense soils?
Yes, our screw-in foundation systems are designed to be highly versatile and can be installed in natural soil, compacted dense grounds, and even tarred surfaces.
What steel grade is used in manufacturing?
All pole anchors are made from low carbon steel, providing a robust balance of structural strength and flexibility for long-term outdoor use.
