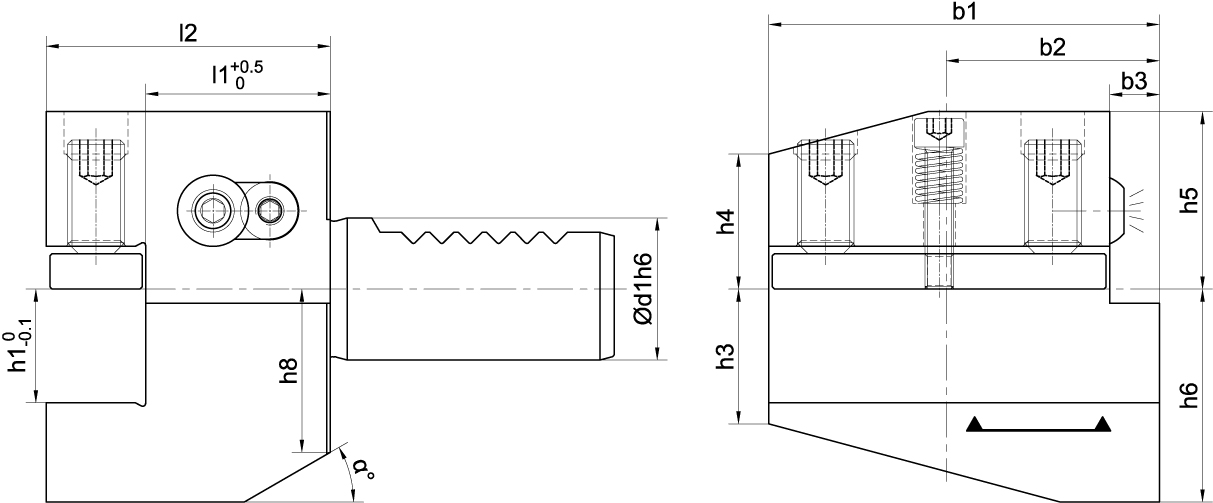

| Size | b1 | b2 | b3 | l1 | h3 | h4 | h5 | h6 | h8 |
|---|---|---|---|---|---|---|---|---|---|
| B1A-161234 | 42 | 23 | 5 | 23 | 15 | 15 | 20 | 22 | 19 |
| B1A-201640 | 55 | 30 | 7 | 26 | 19 | 19 | 25 | 30 | 23 |
| B1A-252040 | 70 | 35 | 10 | 22 | 29,5 | 22 | 31,5 | 38,5 | 30 |
| B1A-302040 | 70 | 35 | 10 | 22 | 26 | 22 | 28 | 38 | 30 |
| B1A-402544 | 85 | 42,5 | 12,5 | 22 | 35 | 30 | 32,5 | 48 | - |
| B1A-502544 | 85 | 42,5 | 12,5 | 22 | 35 | 30 | 32,5 | 48 | - |

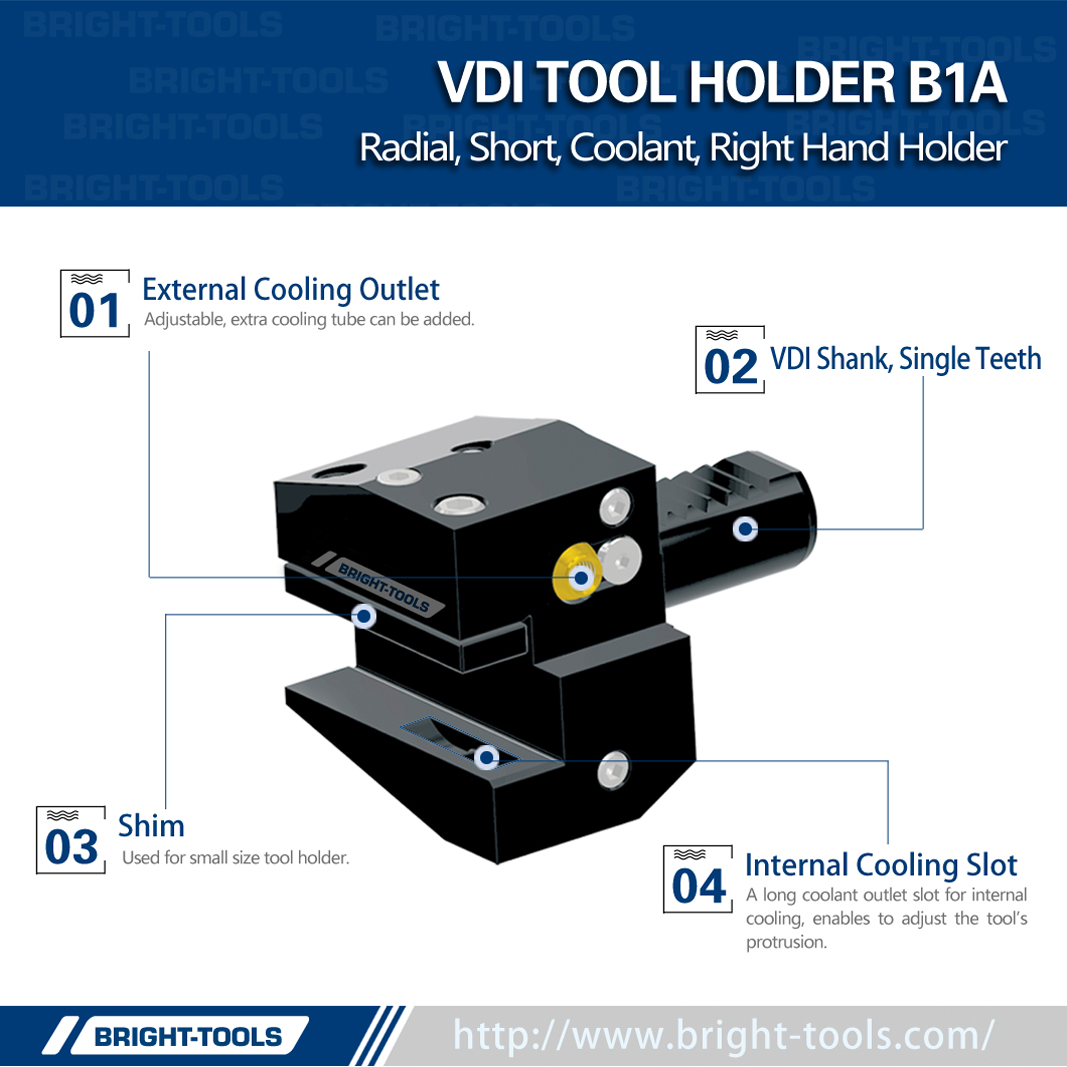

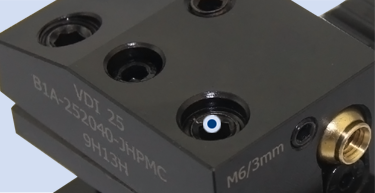

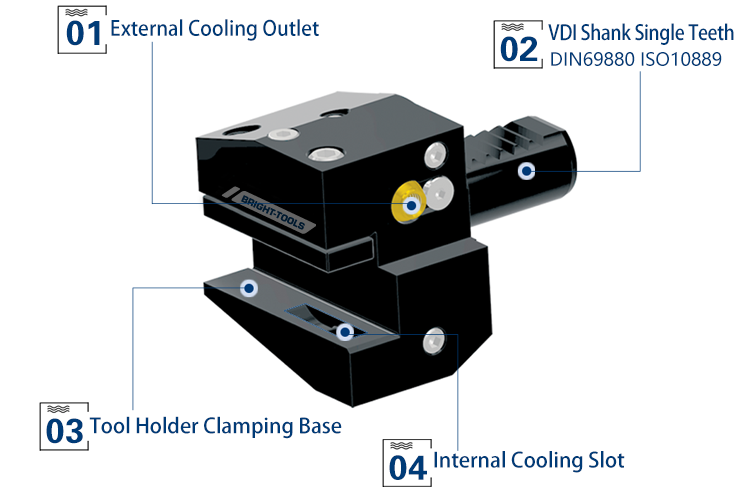

Engineered to provide maximum clamping power, preventing tool slippage and maintaining precise alignment during heavy-duty turning operations.

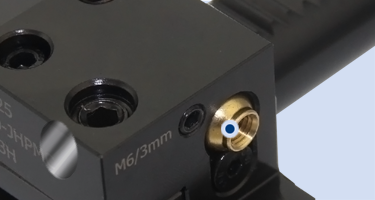

Designed with adjustability in mind; an extra cooling tube can be added to deliver precise coolant directly to the cutting zone.

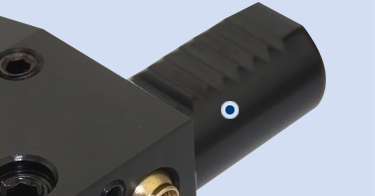

Hardened to HRC55-60, ensuring long-term wear resistance, reducing maintenance cost, and extending tool life under rigorous working conditions.

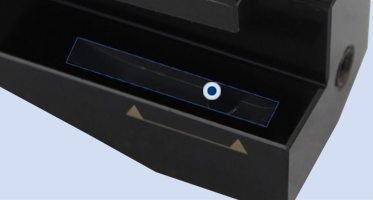

A long coolant outlet slot is integrated for internal cooling, enabling easy adjustments of the tool's protrusion for different machining depths.

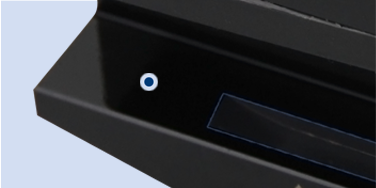

Shims can be ordered separately, allowing compatibility and adaptation for small size tool holders within the CNC system.

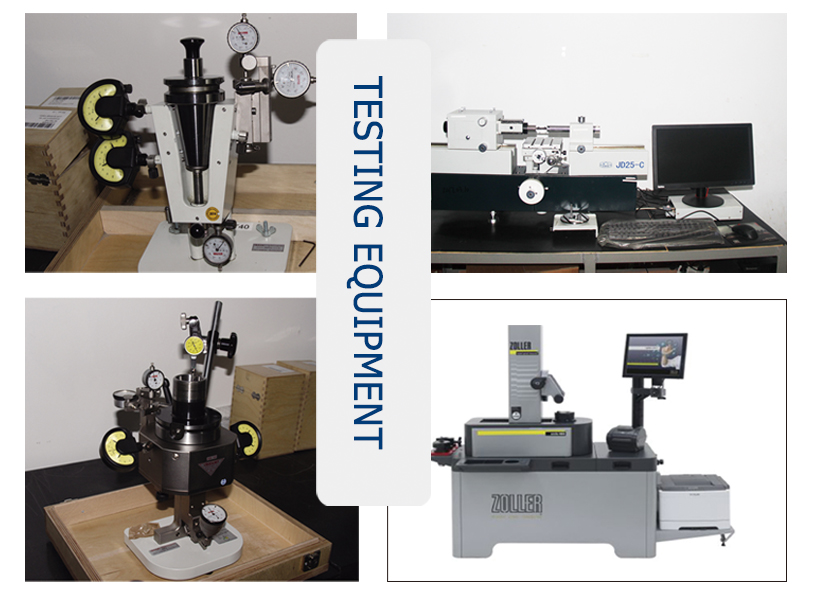

Established in 2006, equipped with advanced equipment and exquisite workmanship, the production line is capable of manufacturing BT, NT, HSK, SK, CAT, GOST, VDI and other standard CNC tool holders, collets, pull studs, and other tooling accessories. The products are supplied globally, and have been well received by both domestic and foreign customers.

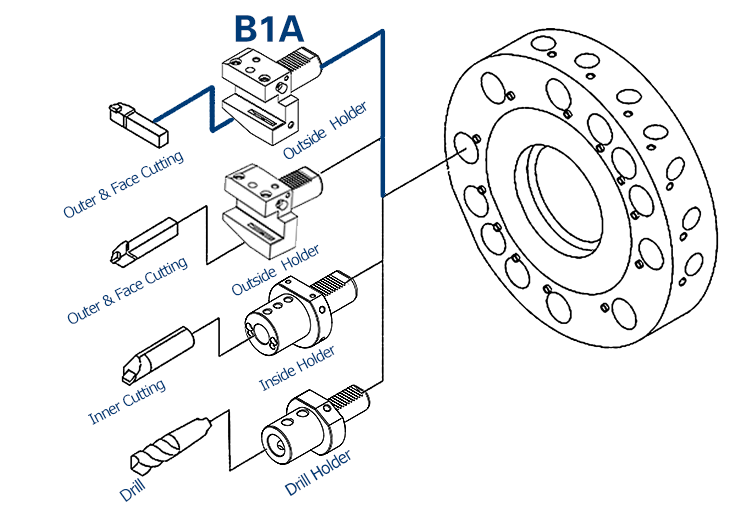

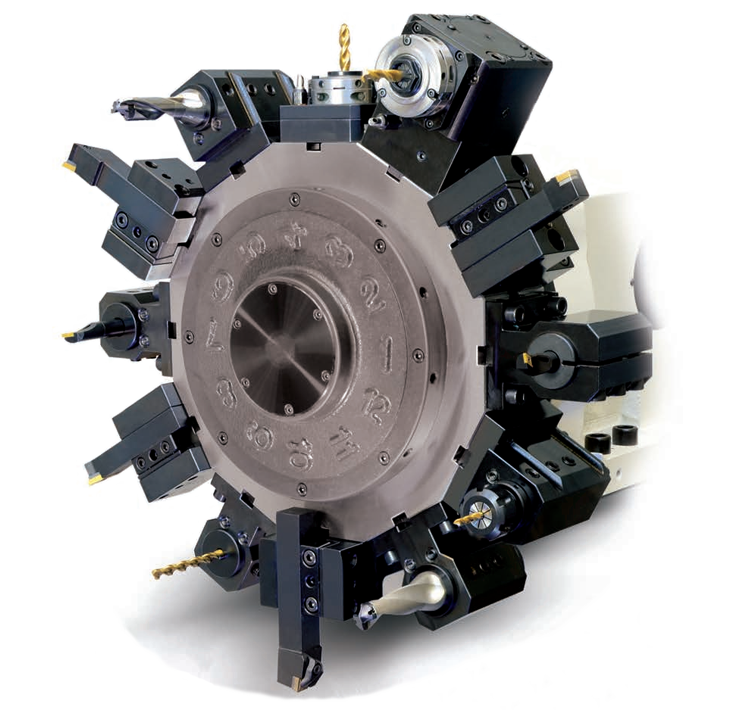

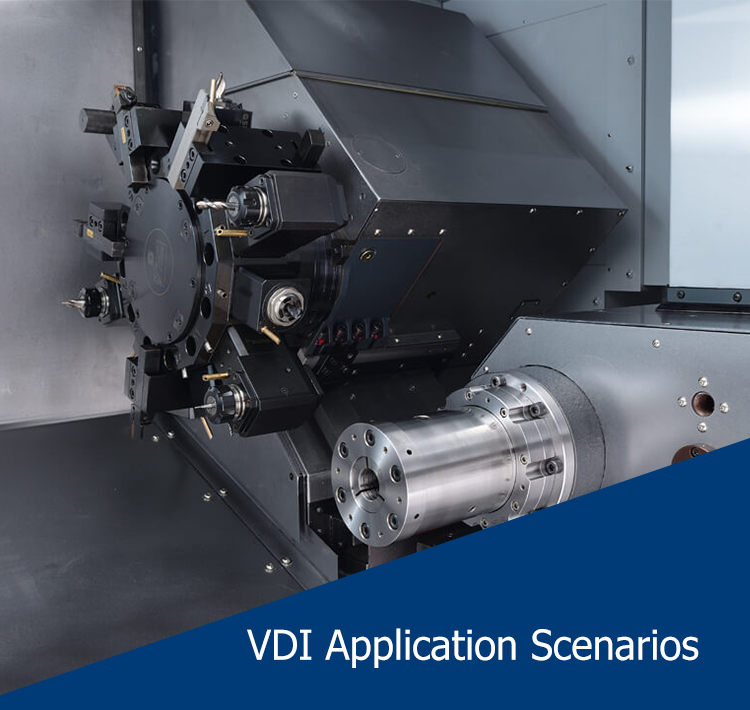

A VDI Tool Holder is a standardized tool-holding interface commonly used on CNC lathes and turning centers. The shank has a serrated rack profile that locks securely into the machine turret, facilitating quick changeovers and accurate positioning.

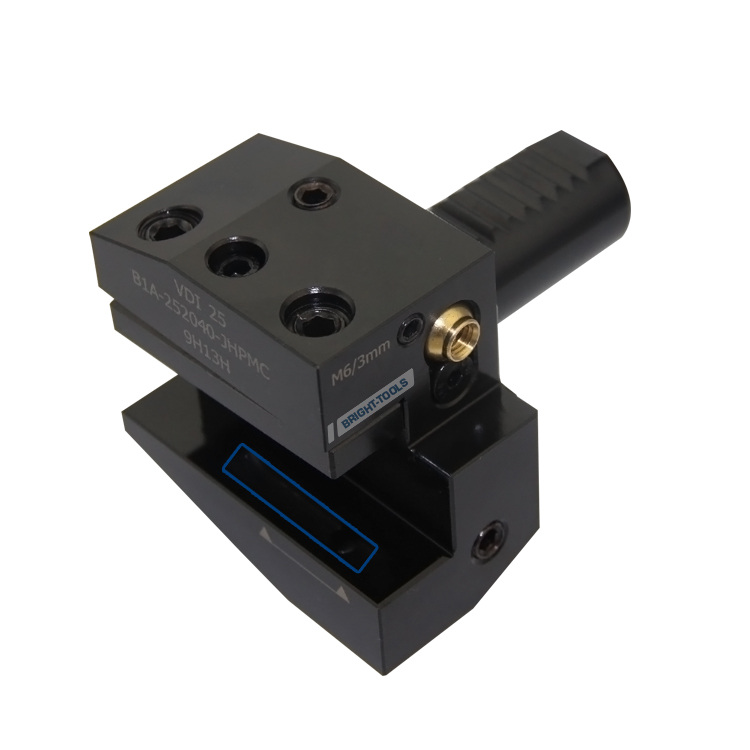

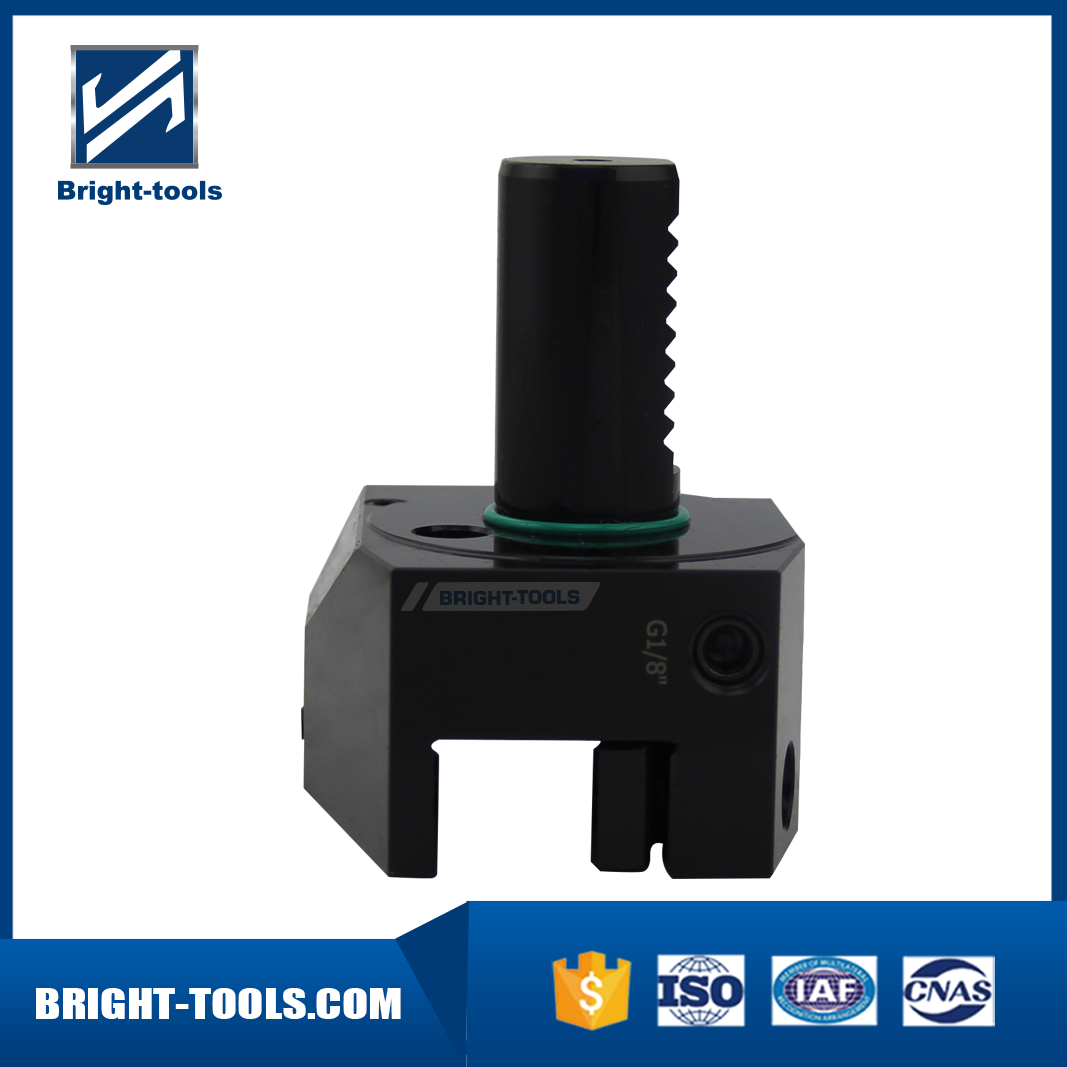

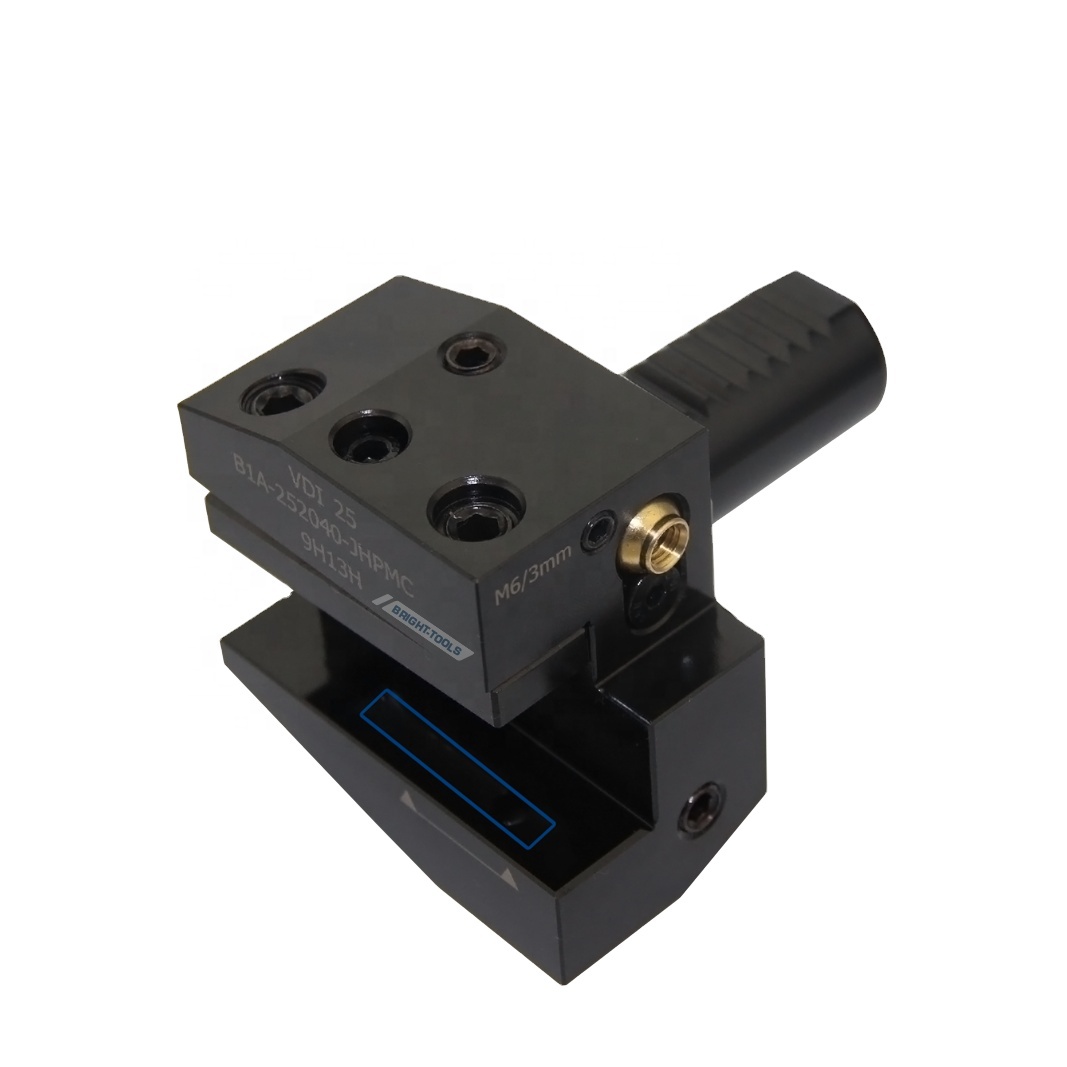

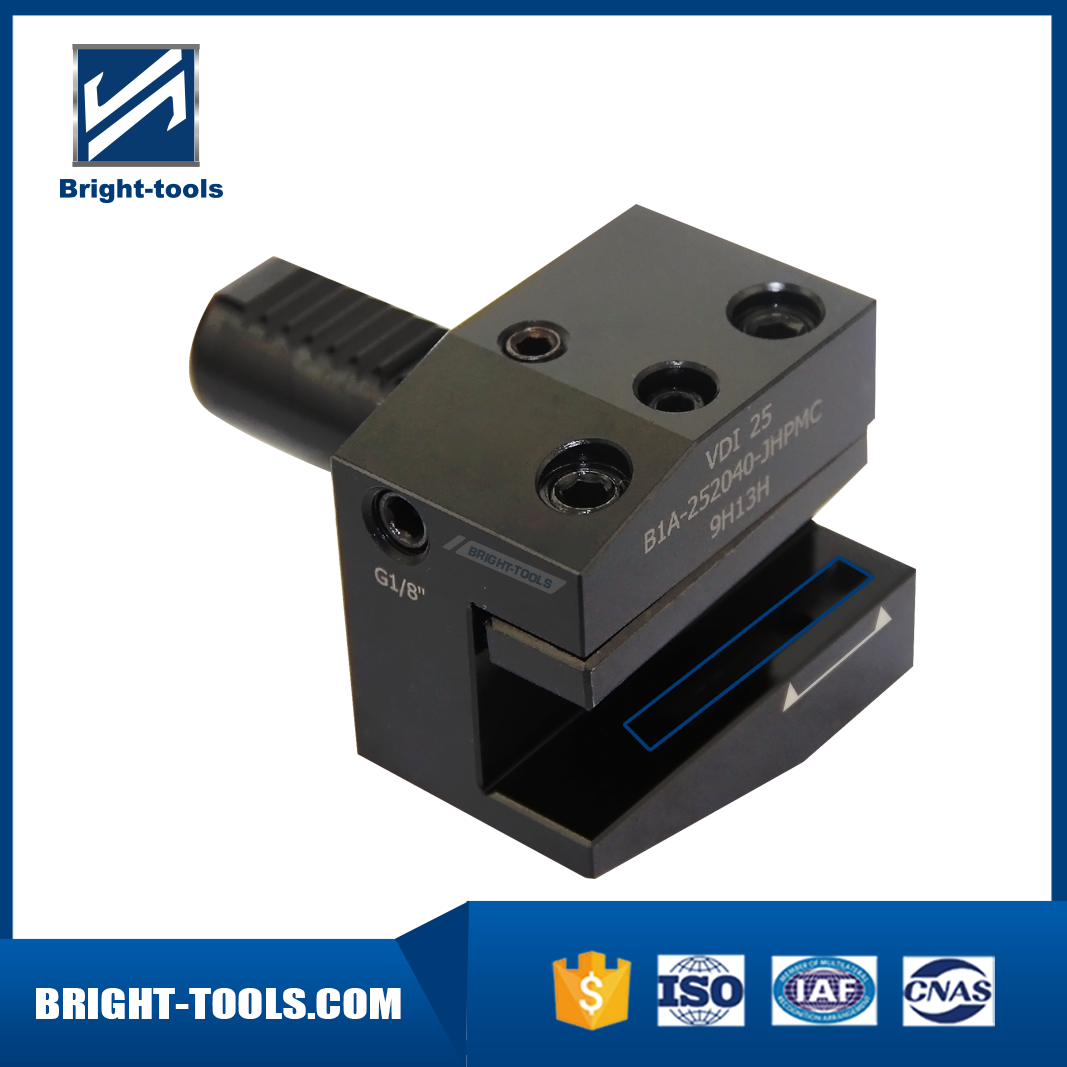

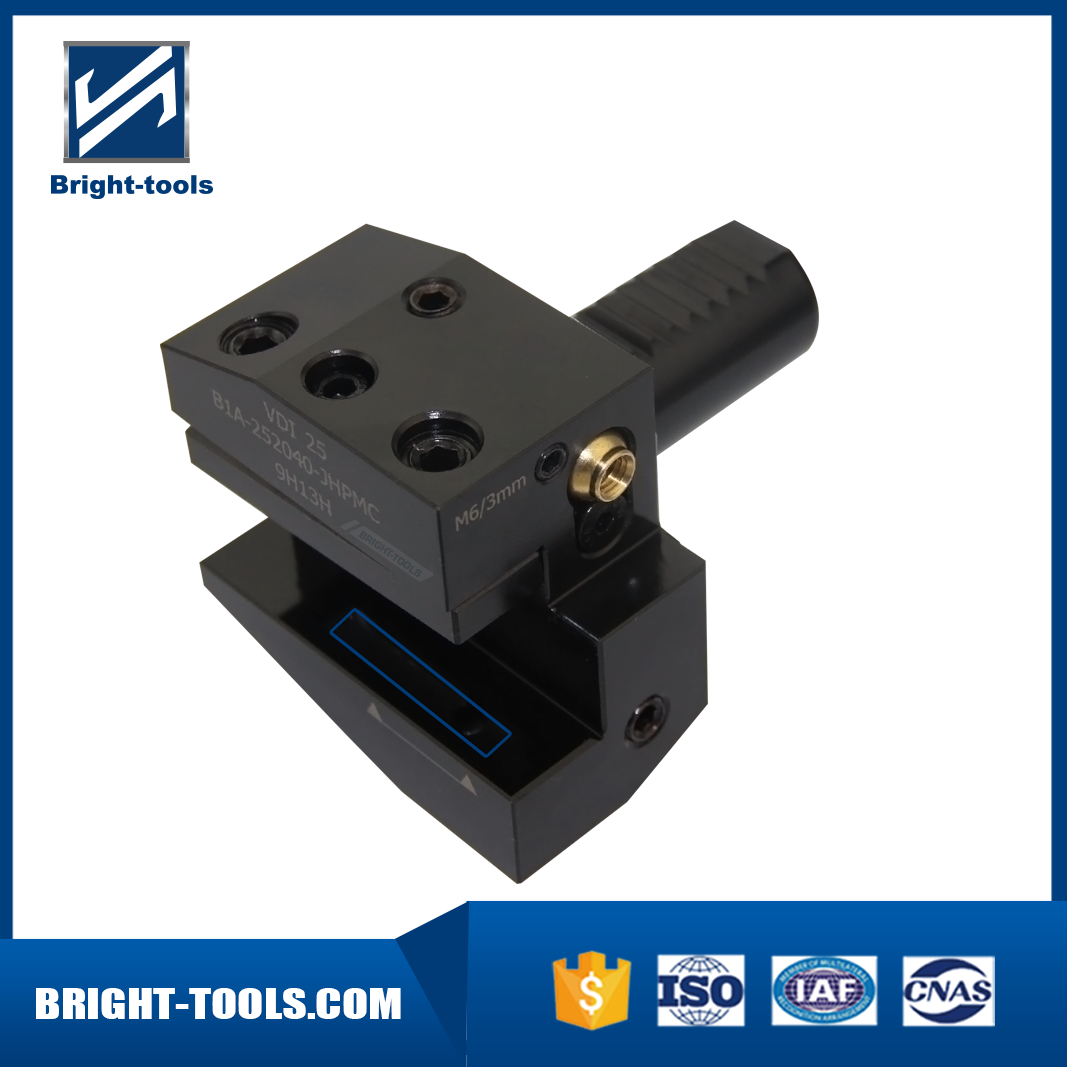

The VDI-B1A is a radial, short tool holder designed for external turning operations. It is configured for coolant routing and features high hardness (HRC 55-60) for long-term production stability.
Our VDI tool holders undergo precise thermal heat treatment processes. A hardness of HRC55-60 ensures excellent wear resistance, stability under heavy cutting forces, and minimizes deformation over years of operation.
Yes, the VDI-B1A radial holder is equipped with a long coolant outlet slot designed specifically for internal cooling, allowing you to feed coolant directly through to the cutting edge and adjust tool protrusion easily.

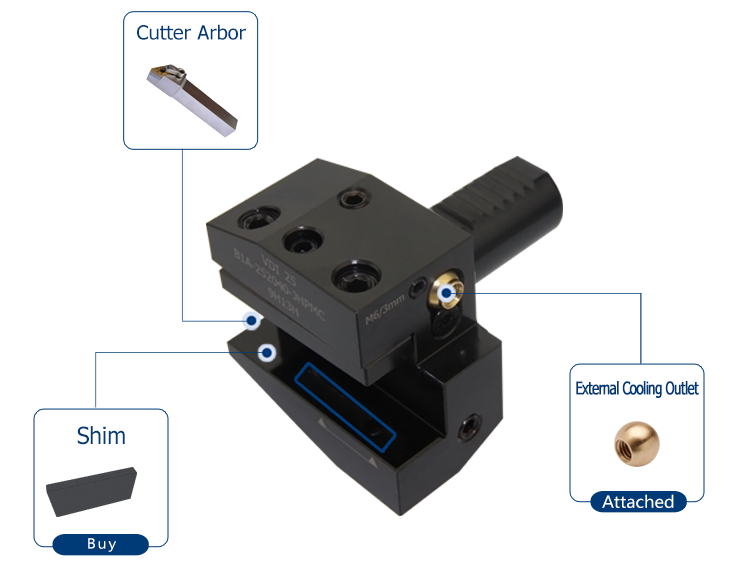

Basic locking elements are included. Shims for holding smaller tools and specific spare parts can be ordered separately based on your production tooling size needs. Please refer to our spare parts chart for configurations.
