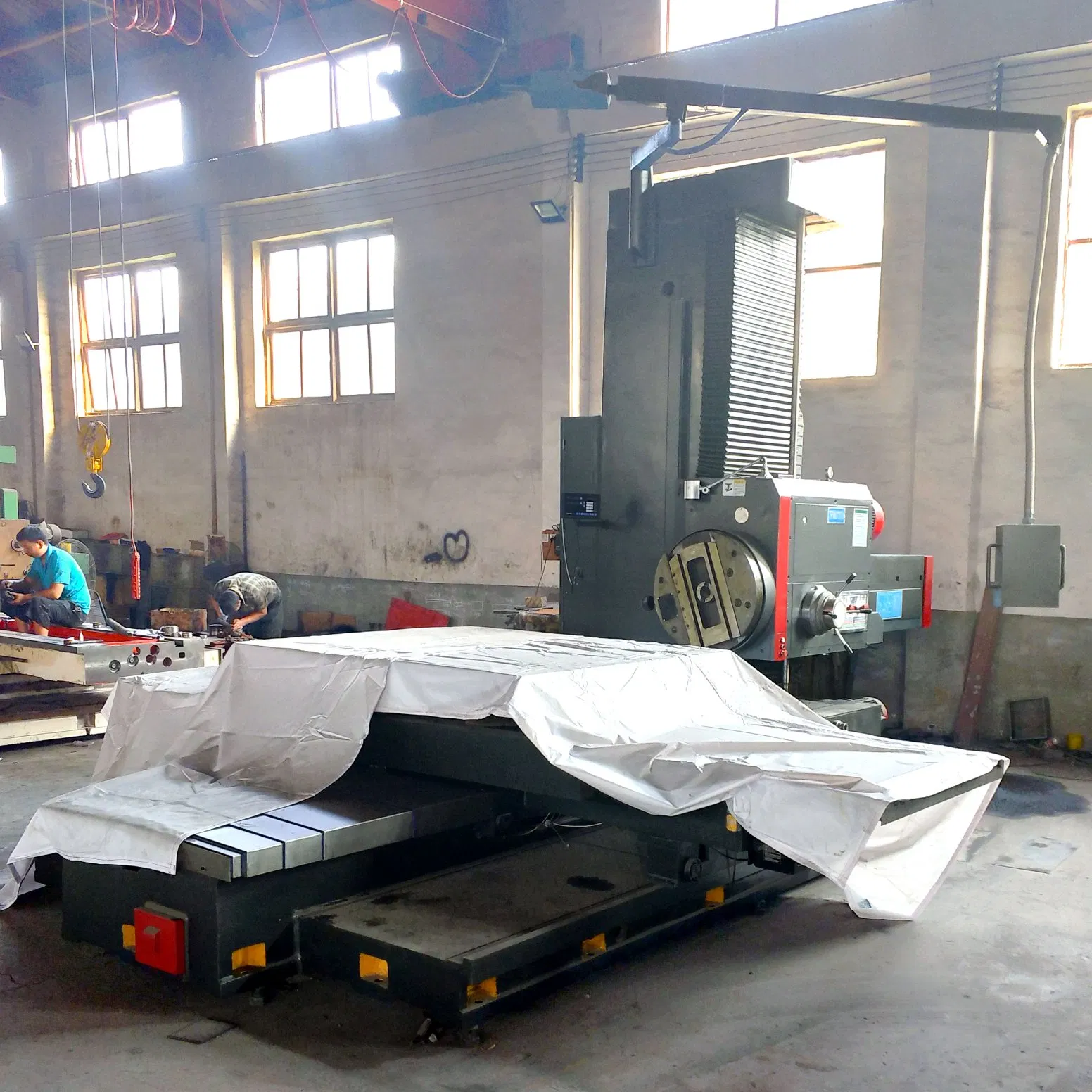

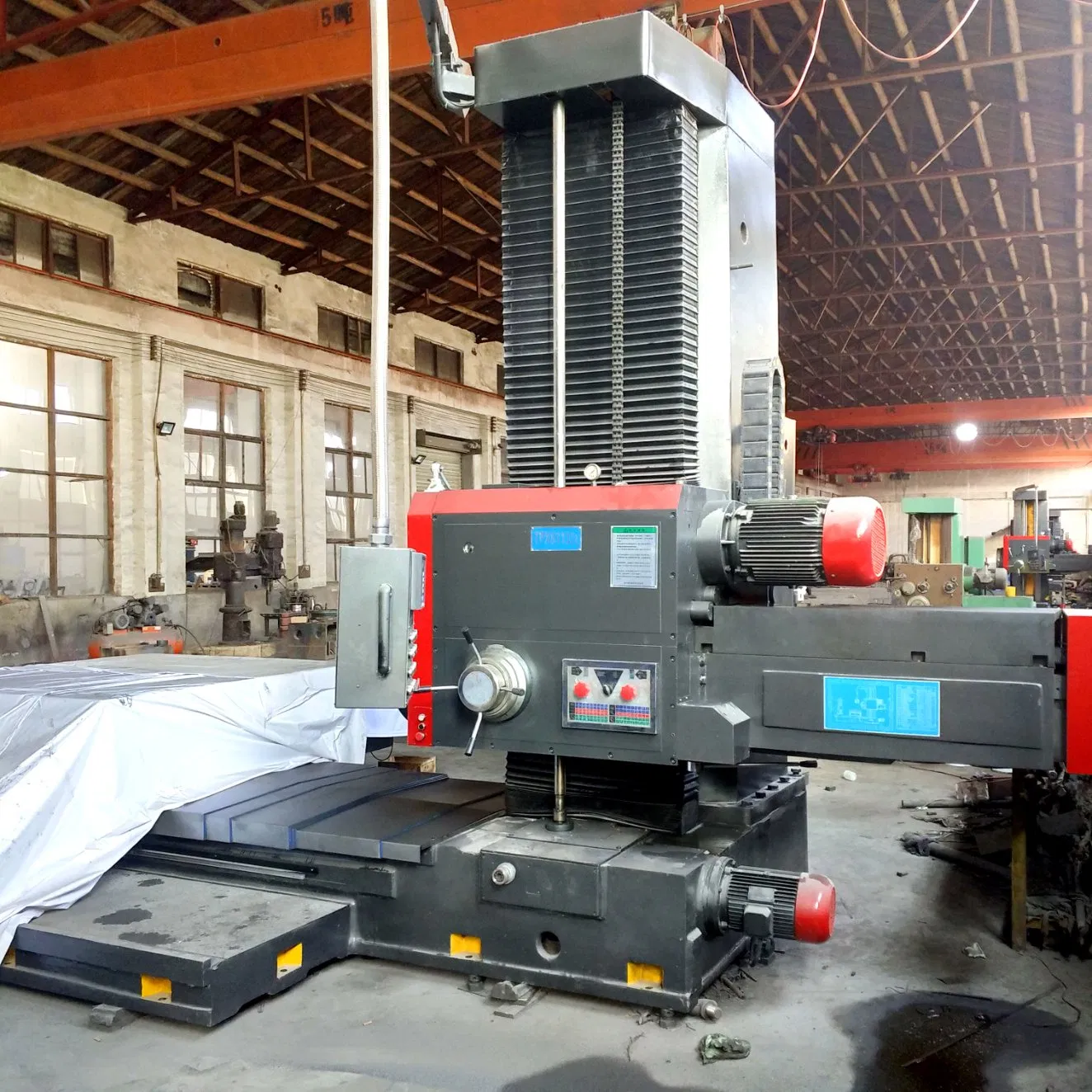

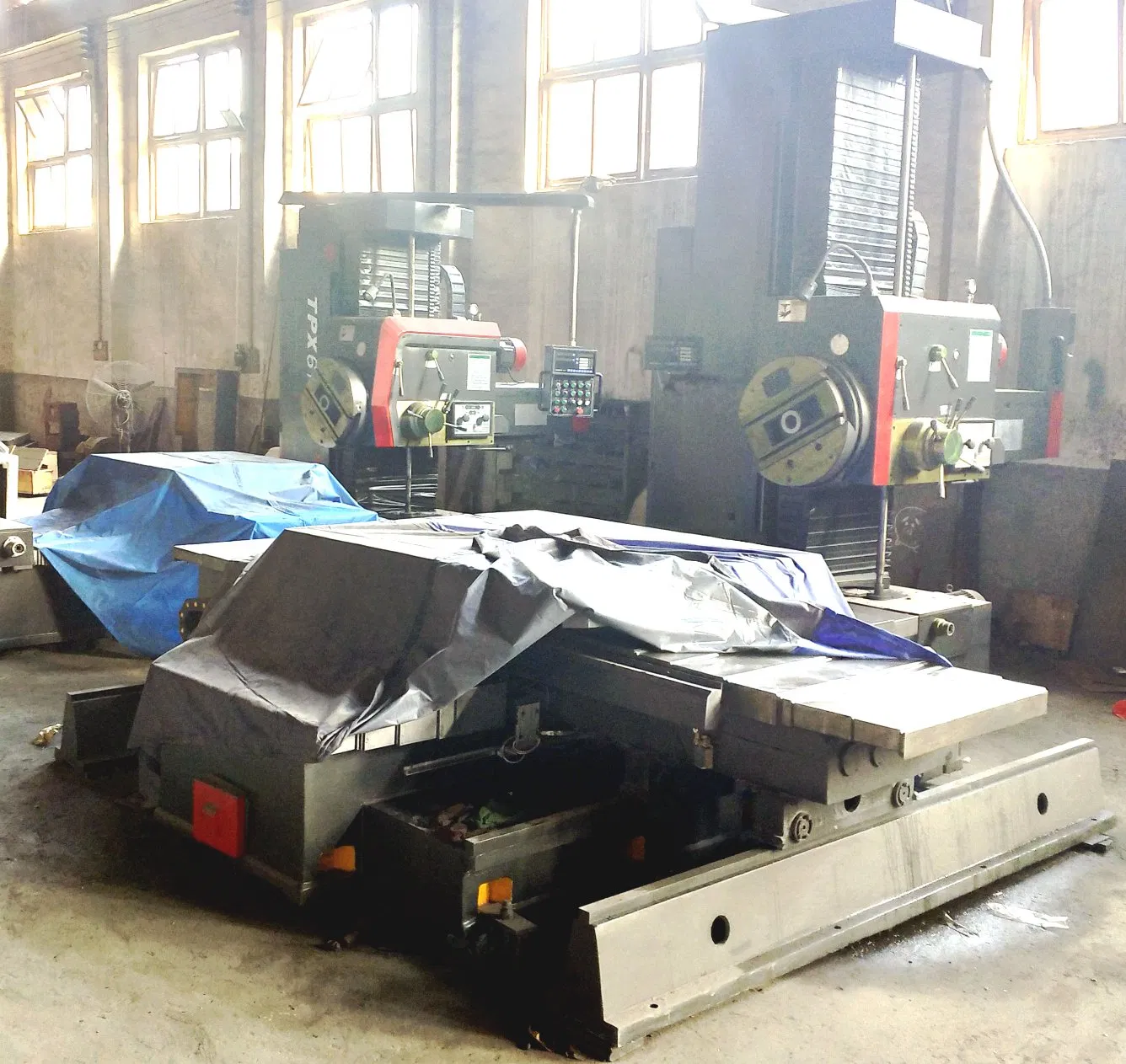

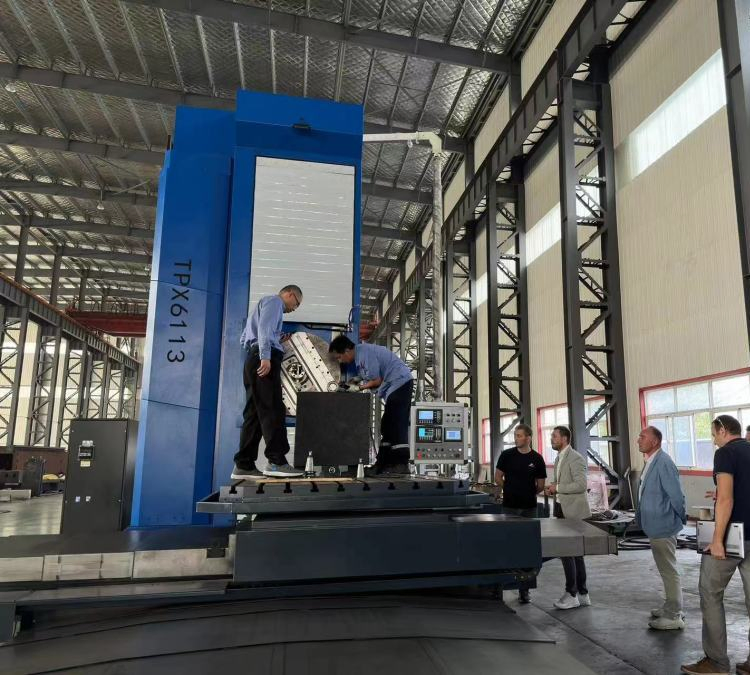

Low Price Tpx61 conventional Boring And Milling Machine Swivel Head Ram Type

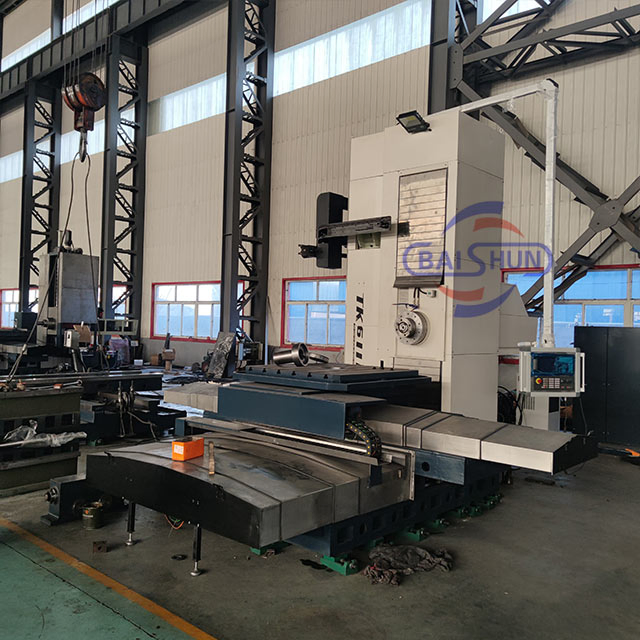

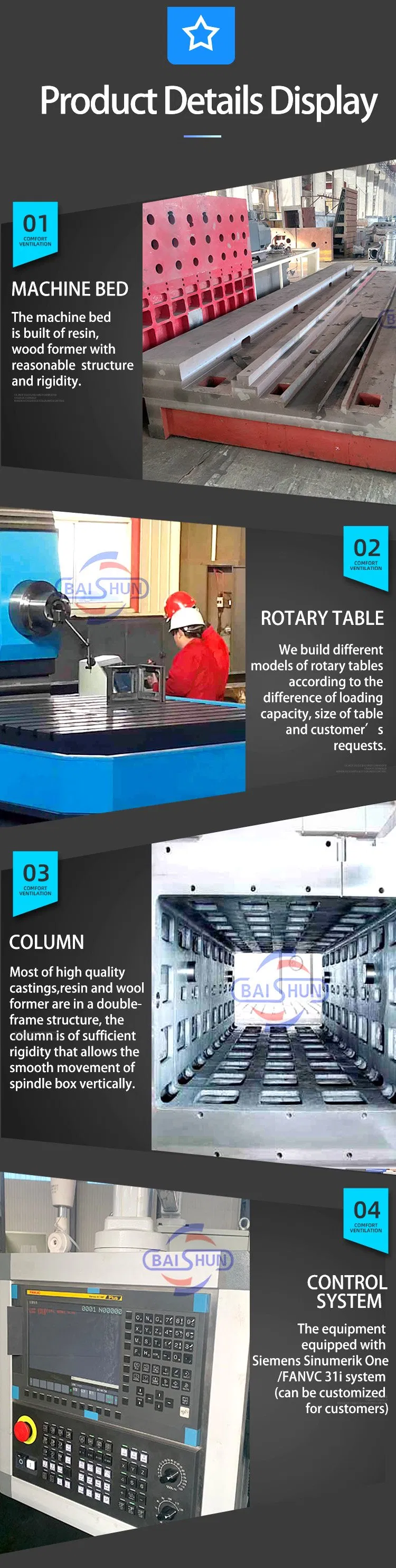

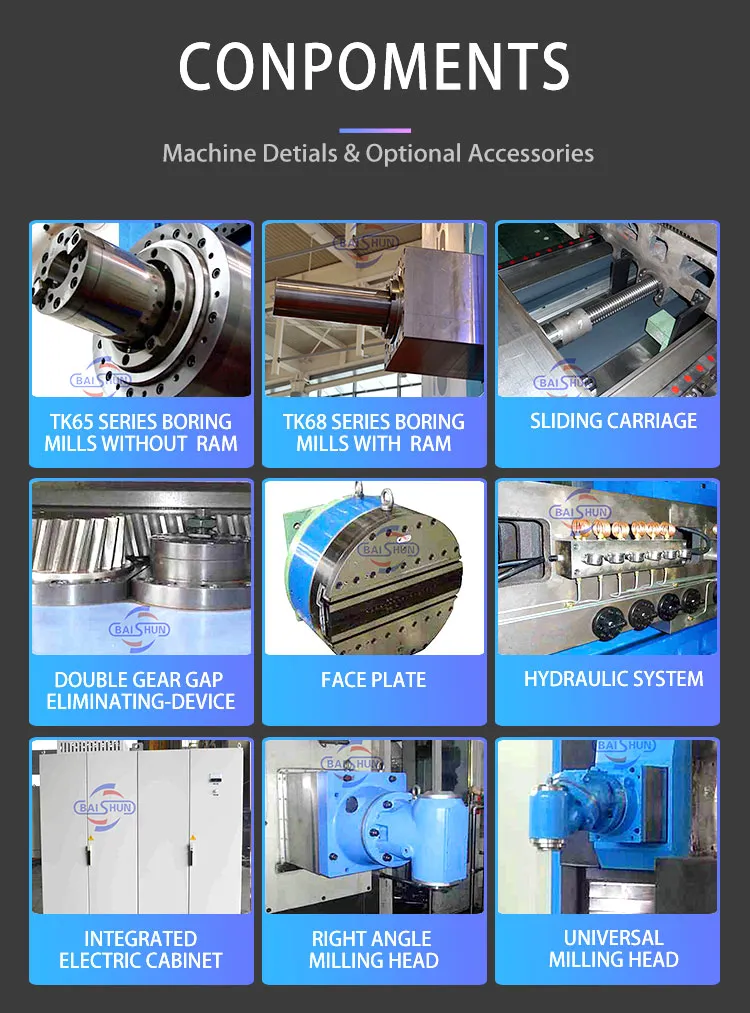

The CNC planer type boring mills are machines with large torque, high efficiency, high rigidity and advanced technologies.The machine can meet the demands of each user, including different controllers, different precision requirements, different sizes of tables by forming different models of boring machines. This series of boring mills are suitable for machining large medium sized box shaped, frame structure or moulding parts, also can perform milling, boring, drilling, winching, tapping etc after one clamping. The machine controls 7 axes with 4 axes simultaneous and allows circular interpolation and 3-D curved surface machining. Equipped with milling head, face plates and other devices, the series of machines have enlarged machining capabilities. The spindle has cooling case to limit the head in the spindle.

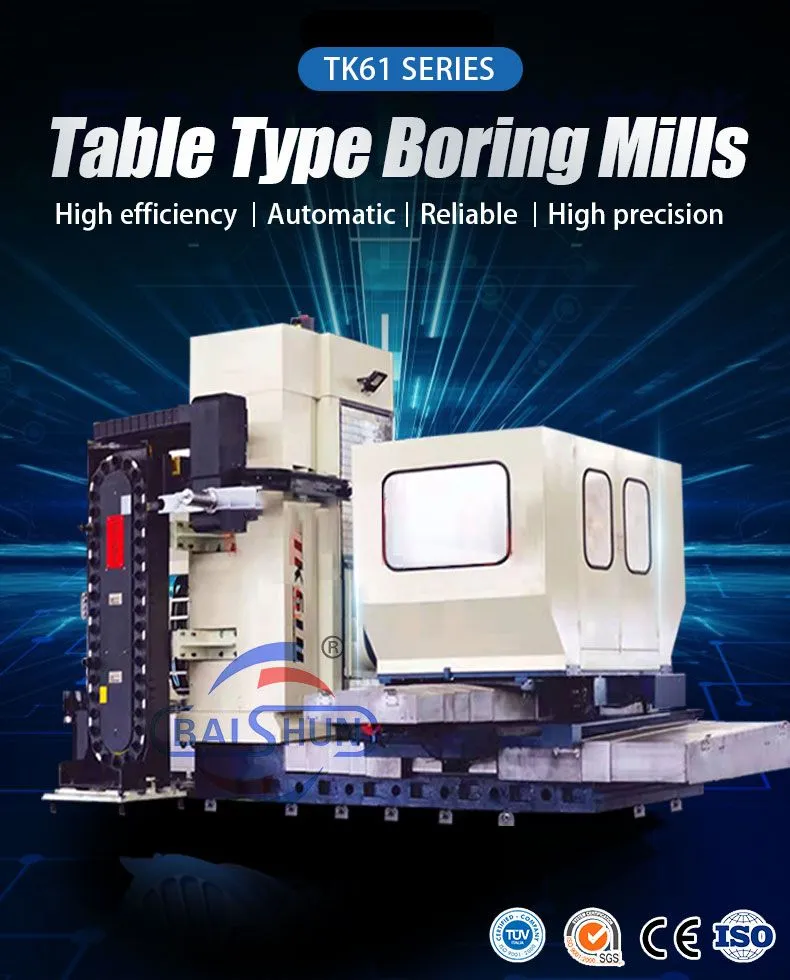

| Item | Unit | TPX6113A | TPX6113B | TPX6113C |
|---|---|---|---|---|
| Spindle diameter | mm | 130 | 130 | 130 |
| Spindle taper | Metric 80 (7:24 No50) | Metric 80 (7:24 No50) | Metric 80 (7:24 No50) | |
| Spindle range of spindle | r/min | 4-800 | 4-800 | 4-800 |
| Facing head diameter | mm | 750 | 750 | 750 |
| Motor power-Servo | KW | 15 | 15 | 15 |
| Table loading capacity | Kg | 8000 | 8000 | 8000 |
| Table size | mm | 1600*1400 | 1600*1400 | 1800*1600 |
| Cross travel of table -X axis | mm | 1600 | 2000 | 2000 |
| Vertical travel of spindle head-Y axis | mm | 1500 | 1800 | 2000 |
| Longitude travel of cloumn-Z axis | mm | 1500 | 1500 | 1500 |
| Axial travel of boring spindle-W axis | mm | 900 | 900 | 900 |
| U-axis travel(slide of facing head travel) | mm | 250 | 250 | 250 |
| Rapid travel(X/Y/Z) | mm/min | 2500 | 2500 | 2500 |
| B-axis measurement system reading precision | degree | 0.001 | 0.001 | 0.001 |
| Table rotary indexing-B axis | degree | 360 | 360 | 360 |
| Item | Unit | TK6111 | TK6113 |
|---|---|---|---|
| Table size | mm | 1250*1400 | 1400*1600 |
| Spindle diameter | mm | 110 | 130 |
| X Travel | mm | 1800-2000 | 1800-2000 |
| Y Travel | mm | 1200-1600 | 1200-1600 |
| Z Travel | mm | 1200-1600 | 1200-2000 |
| W Travel | mm | 600 | 800 |
| T Slot | mm(W*Distance) | 22*125 | 22*125 |
| Max.loading capacity | KG | 5000 | 8000 |
| Max.boring dia. | mm | 240/250 | 300 |
| Rapid moving speed | Mm/min | 3000 | 3000 |
| CNC System | mm | SIEMENS / FANUC | |
| Positioning accuracy(X/Y/Z axis) | mm | 0.03/0.03/0.03 | 0.03/0.03/0.03 |
| Machine size | mm | 6300*3900*3700 | 6500*4200*3900 |
| Machine weight | KG | 25000 | 32000 |
Our products can be found in every corner of the world, covering nuclear power industry, wind generator industry, hydropower equipment industry as well as forging and pressing equipment industry, to name a few.
Being consistent with the concept of be specialized in our profession, we have been able to pull together all resources within our company and many elites in the industry to focus on the development and research of boring machines. As a result of years of hard work, we are possessed of the best capability of designing, developing, inspecting and manufacturing all series of CNC and digital readout boring machines. Moreover, our products are recognized and certified by ISO9001 quality system and certification of Europe.
