NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set
1 / 4
NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set

NBH2084 Micro Boring Head Set

Send Inquiry

Product Description

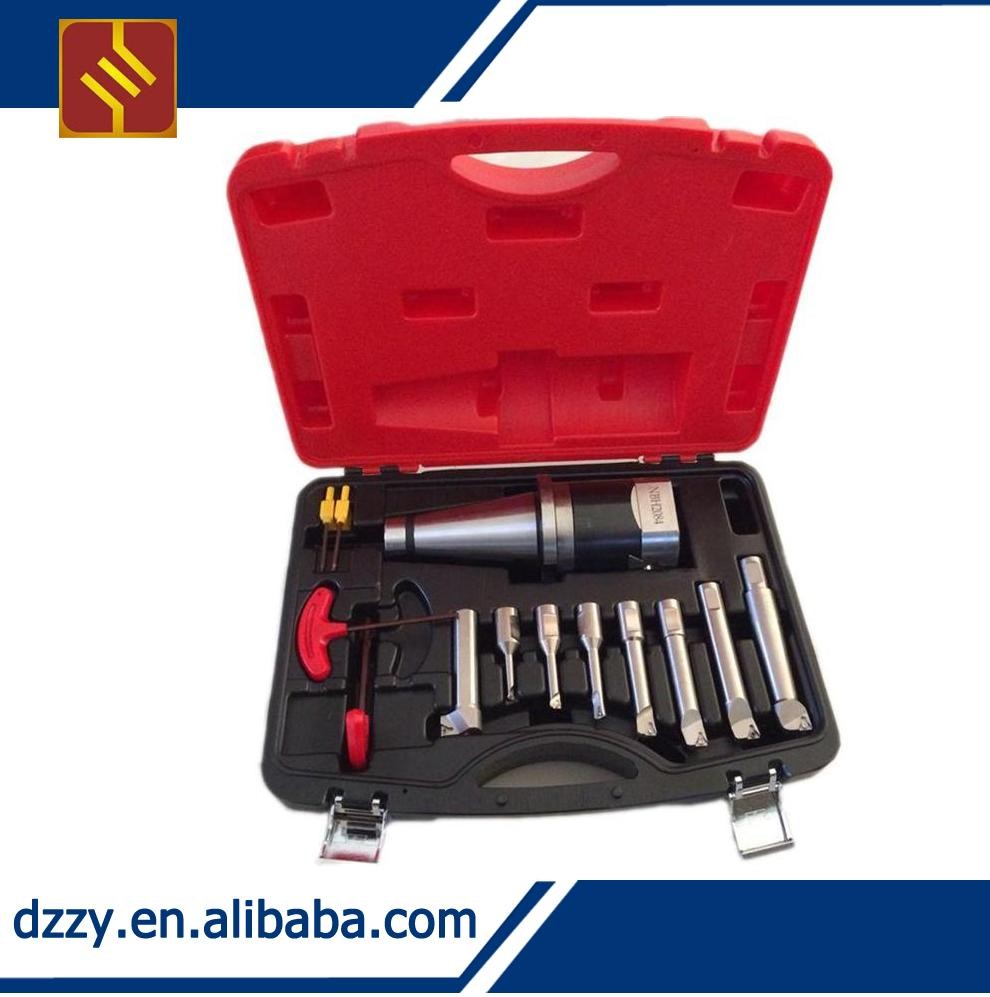

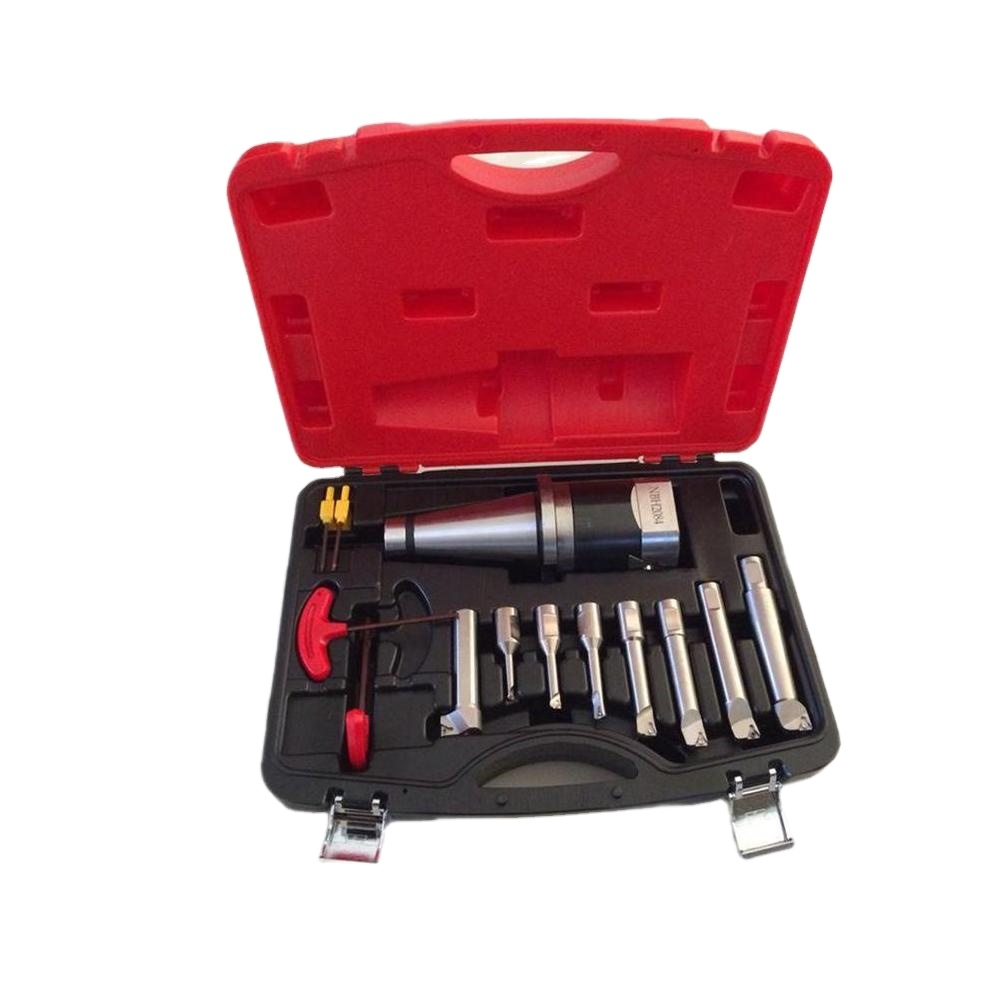

NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set NBH2084 Micro Boring Head Set NBH2084 Micro Boring Head Set NBH2084 Micro Boring Head Set
Model No. Boring Range Adjustment Precision Max Offset Weight
NBH2084 Ø8-Ø280mm Ø0.01mm 28.0mm 3.0kgs
Boring Cutter Specification
Boring Cutter Boring Range Dimensions DM Insert Bolt Spanner Weight (kgs)
BJ2008-32 8-11 32 TBGT060102L
TBGT060104L		 SB-1STR-M2 T6 0.095
BJ2010-40 10-13 40 0.095
BJ2012-53 12-17 53 TPGH090202L
TPGH090204L		 SB-2STR-M2.5 T8 0.12
BJ2016-68 16-21 68 0.16
BJ2020-83 20-130 83 TPGH110302L
TPGH110304L		 SB-3STR-M3 T8 0.22
BJ2025-96 25-135 96 0.34
BJ2030-115 30-140 115 0.54
BJ20-20L 120-280 84+BT bar 0.23
BJ2020-150 20-130 150 0.3
BJ2020-200 20-130 200 0.4
BJ2025-150 25-135 150 0.35
BJ2025-200 25-135 200 0.45
BJ2030-150 30-140 150 0.5
BJ2030-200 30-140 200 0.6
BJ20L-180 120-280 180 0.7
NBH2084 Micro Boring Head Set
Model No Boring Range Type Weight (kgs)
R8-NBH2084 Ø8-Ø280mm R8-UNF7/16-20NBH2084 10.0
NT30-NBH2084 DIN2080 ISO30M12-NBH2084 8.0
NT40-NBH2084 DIN2080 ISO40M16-NBH2084 9.5
NT50-NBH2084 DIN2080 ISO50M24-NBH2084 10.8
BT40-NBH2084 MAS403 BT40-NBH2084 9.5
BT50-NBH2084 MAS403 BT50-NBH2084 12.0
NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set NBH2084 Micro Boring Head Set NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set NBH2084 Micro Boring Head Set
NBH2084 Micro Boring Head Set NBH2084 Micro Boring Head Set
Frequently Asked Questions (FAQ)
What is the boring range of the NBH2084 micro boring head set?
The NBH2084 micro boring head set features a wide boring range of Ø8mm to Ø280mm, making it highly versatile for various industrial boring operations.
What is the adjustment precision of the NBH2084?
The NBH2084 micro boring head offers high-precision adjustment dial increments of Ø0.01mm, ensuring extremely accurate diameter controls.
Which shank types are compatible with the NBH2084 boring head set?
This boring head set is compatible with multiple shank types, including R8, NT30 (DIN2080 ISO30), NT40, NT50, BT40 (MAS403), and BT50 shanks.
What inserts are recommended for the boring cutters?
Depending on the specific boring cutter model, standard recommended inserts include TBGT060102L/04L, TPGH090202L/04L, and TPGH110302L/04L.
What is the maximum offset value for the NBH2084 boring head?
The NBH2084 micro boring head has a maximum offset of 28.0mm, allowing for radial adjustments within this limit.
