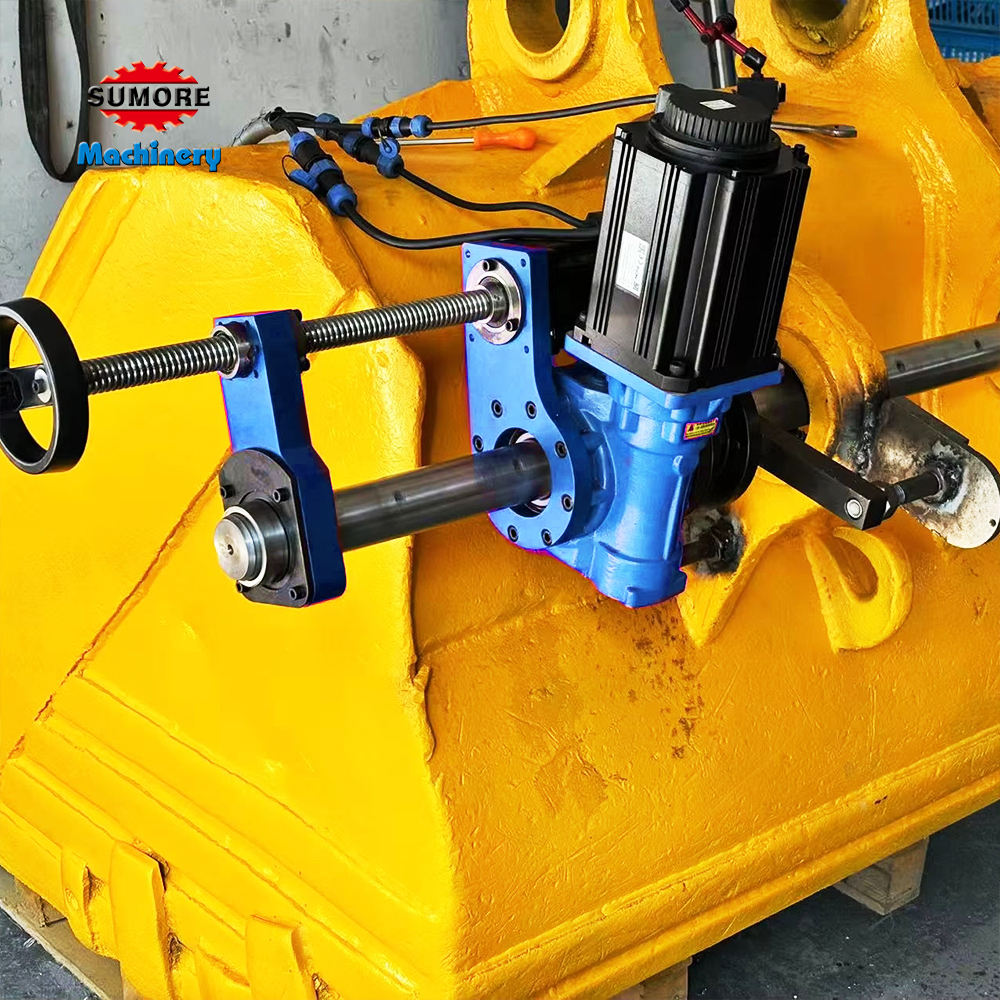

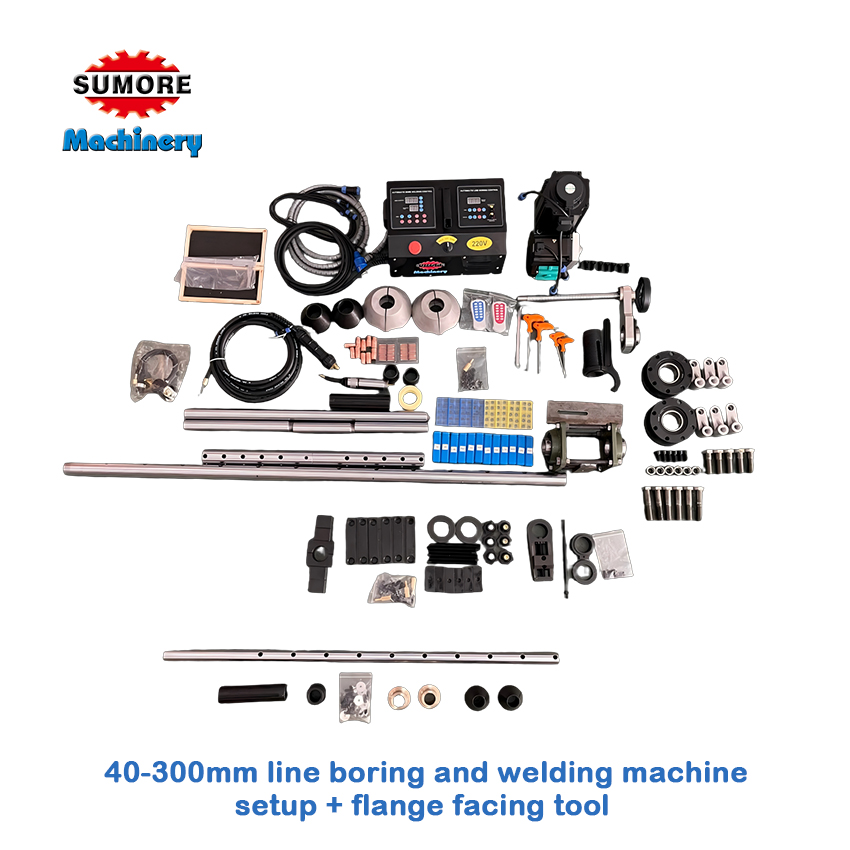

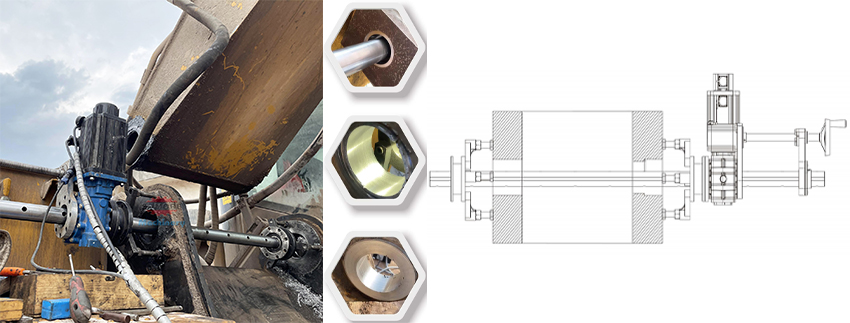

The SP50 40-300mm Automatic 2 in 1 Portable Line Boring and Welding Machine is highly convenient and specially designed for on-site machining. It features a compact volume, lightweight design, ease of transport, and high-quality welding. This equipment is widely used for welding and repairing holes in large-sized machinery, pivot pin holes on earth-moving equipment, and bearing holes. It is essential and ideal equipment for industrial, mining enterprises, and on-site engineering repairs.
Customization Available: Boring hole dimensions can be customized (e.g., 40-160mm, 40-300mm, 40-400mm, 50-160mm, 60-400mm, 55-300mm).

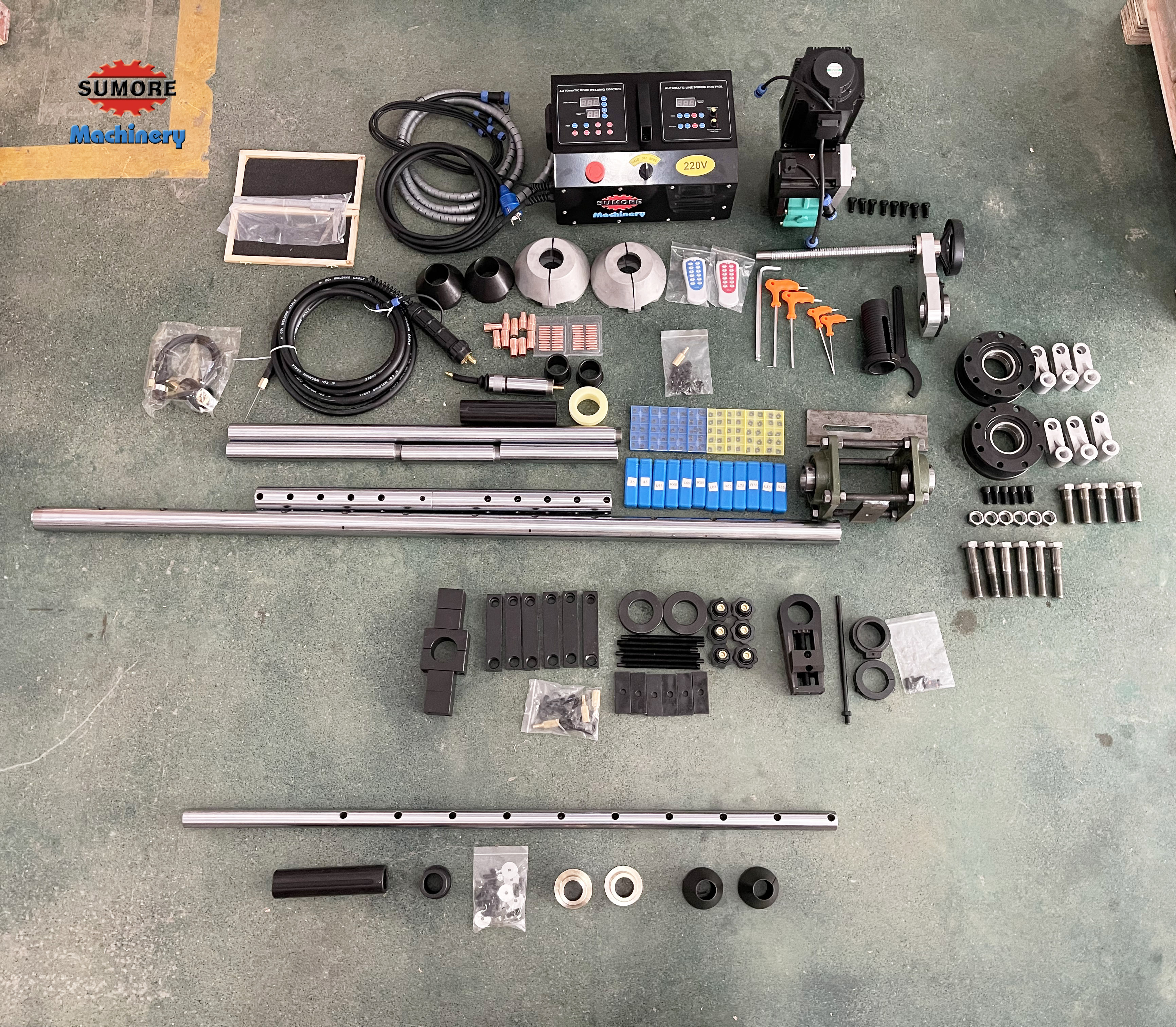

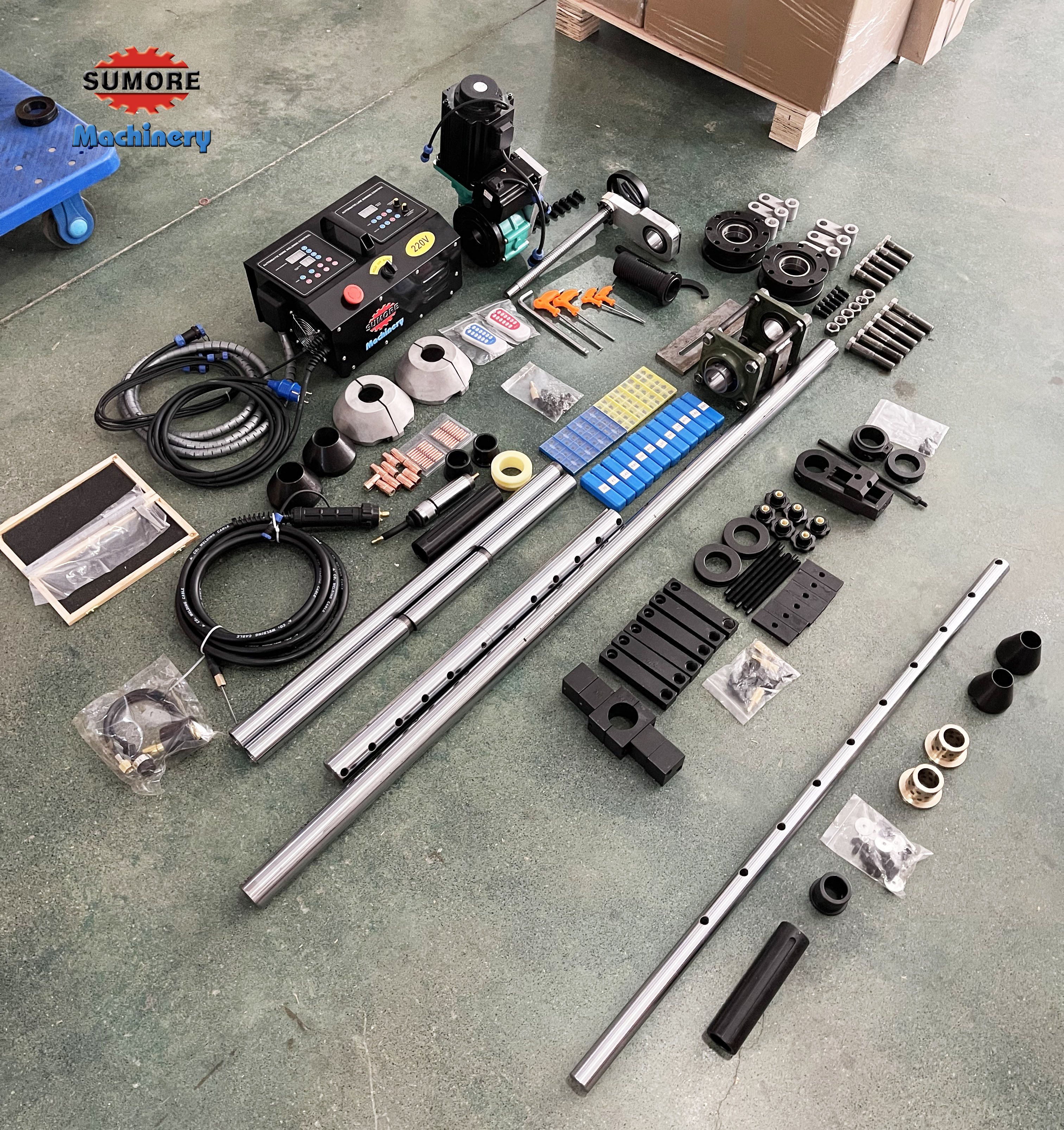

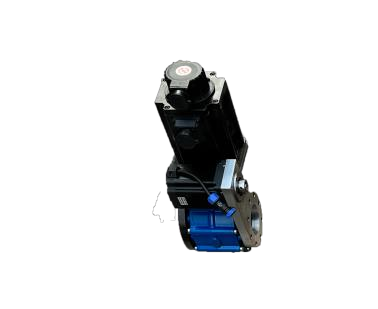

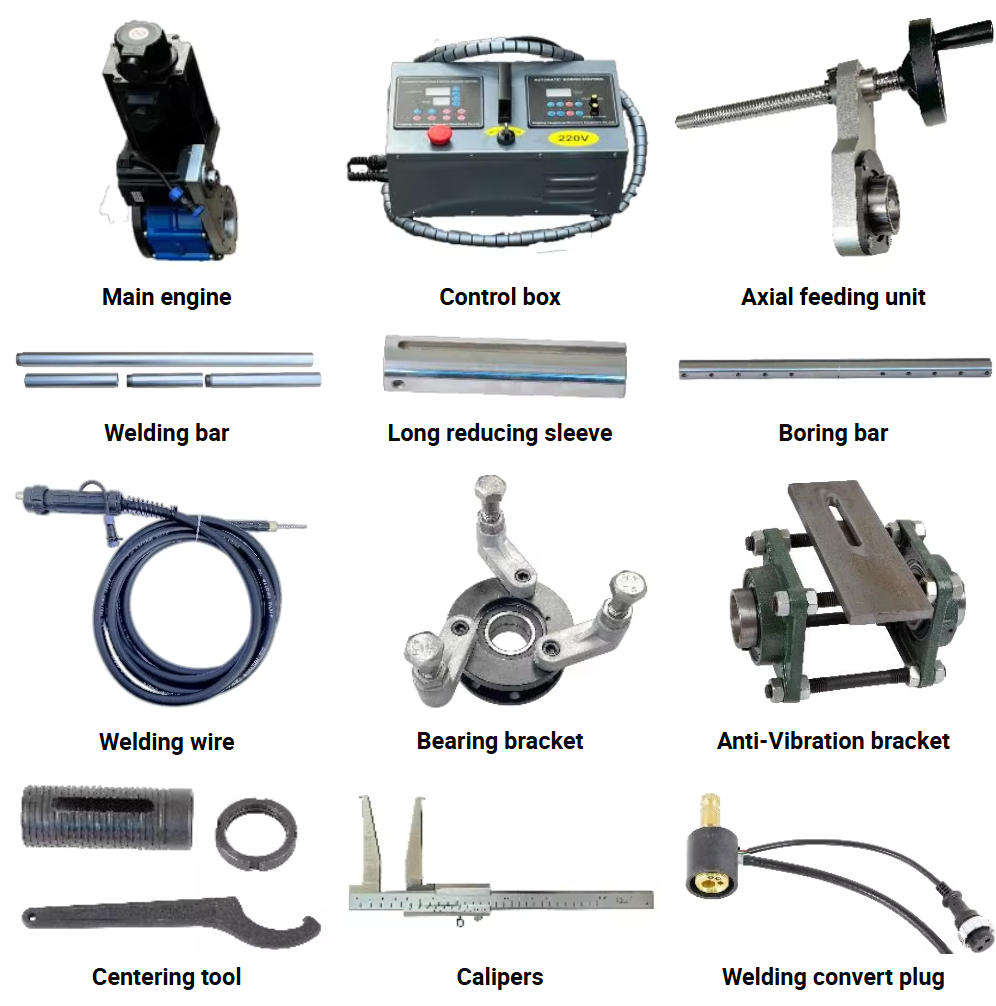

Main Engine

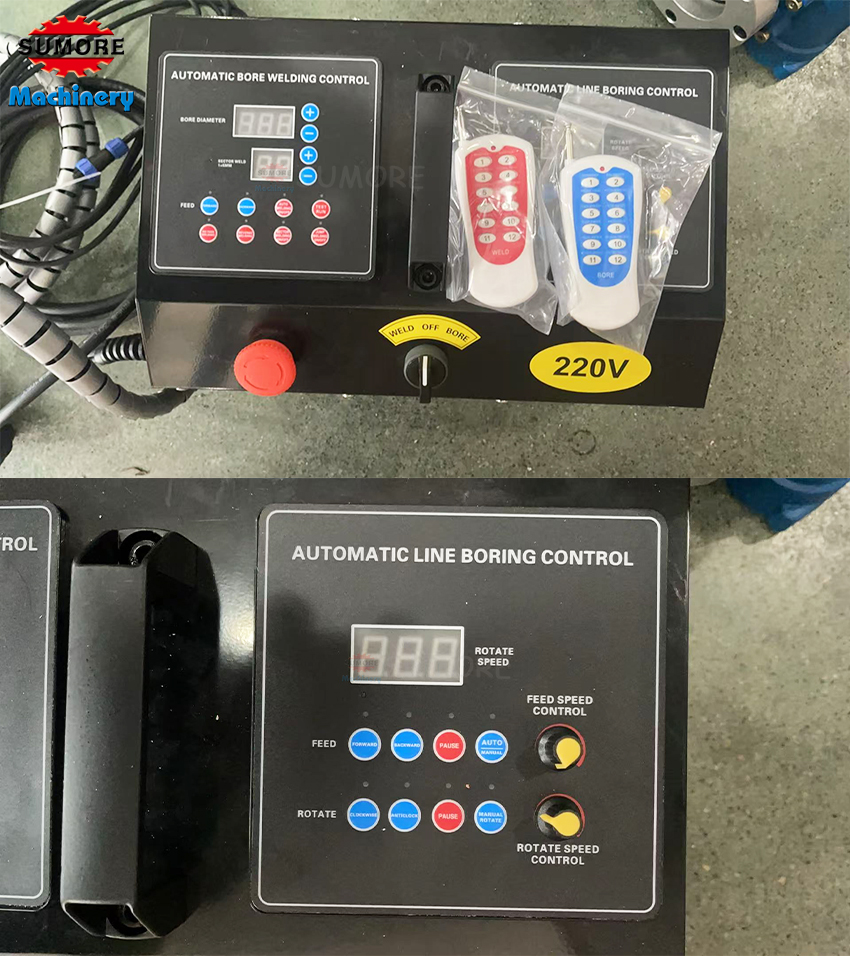

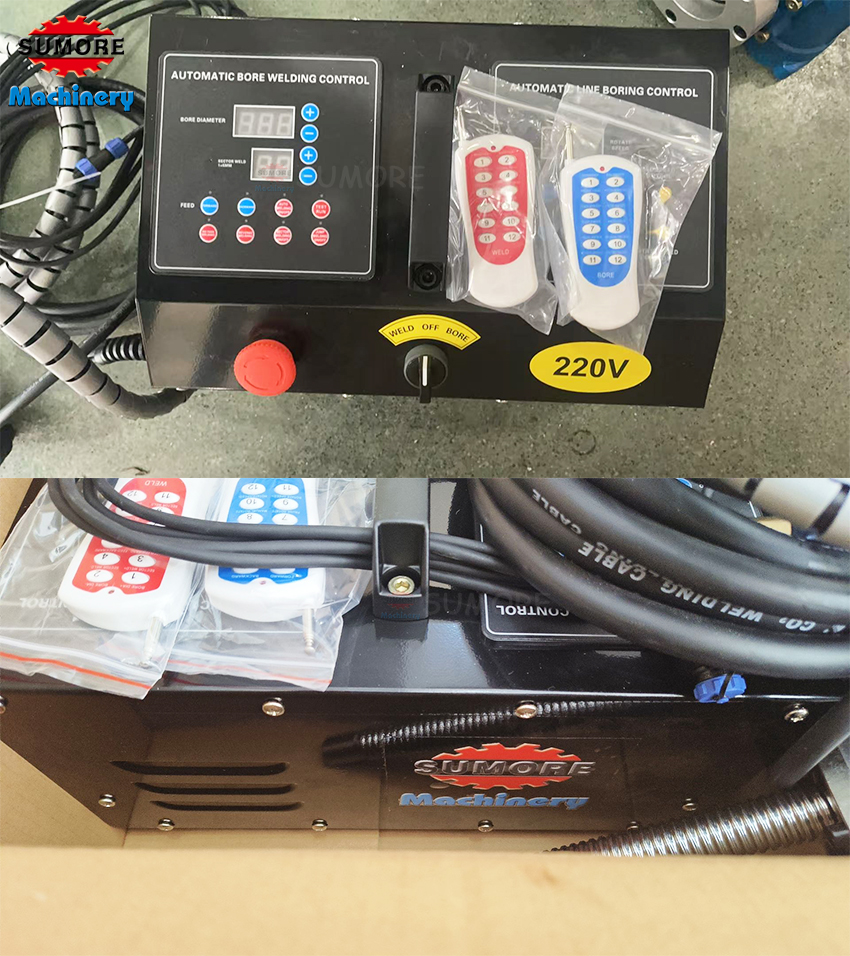

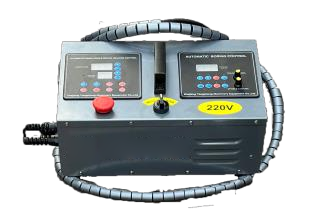

Control Box

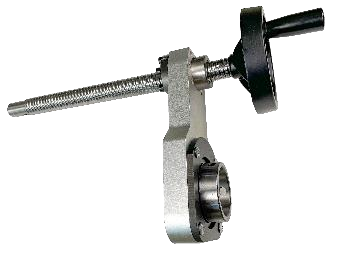

Axial Feeding Unit

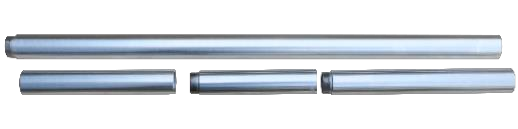

Welding Bar
Long Reducing Sleeve
Boring Bar

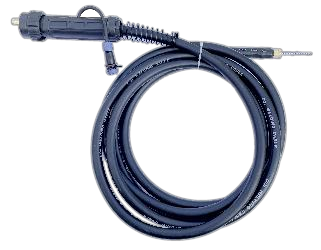

Welding Wire
Bearing Bracket
Anti-Vibration Bracket
Centering Tool
Calipers
Welding Convert Plug
| Parameter | Value / Details |
|---|---|
| Model | SP50 |
| Main motor rated output power | 3.1kw |
| Voltage | 220v/380v |
| Feed motor rated output power | 0.4kw |
| Rotation speed | 50-255rpm |
| Speed mode | Stepless speed |
| Axial feeding mode | Auto/Manual |
| Axial feed speed | 0.01-0.5 |
| Axial feed single stroke | 280mm |
| Boring bar diameter | 50mm |
| Boring bar length | 1600mm |
| Cutting thickness | 0.02-8mm |
| Ovality tolerance | ±0.02mm |
| Taper tolerance | ±0.01mm |
| Ra | 3.2 |
| Welding bar diameter | 40mm |
| Welding thickness | 3-4mm |
| Welding wire length | 4540mm |
| Welding bar length | 200mm/240mm/350mm/800mm |
| Welding bar assembly total length | 1400mm |
| Applicable MIG welding machine | 200-500 type |
| Applicable welding wire diameter | 0.8mm/1.0mm/1.2mm |
| Welding function | Spiral Welding, Sector Welding, Jump Welding |
Established in 2001, our manufacturing focus centers on the research, development, production, and sales of power tools, woodworking equipment, metal-processing machinery, and related accessories. With over 20 years of expertise in producing lathes, milling machines, drills, CNC, and other tools, we maintain dedicated production lines to deliver highly reliable equipment.
Since inception, our products have been featured at major domestic and international exhibitions including the Spring and Autumn Canton Fair, Beijing Exhibition, and events in the United States, Moscow, Germany, Indonesia, Malaysia, Thailand, and Russia, building strong relationships with worldwide clients.
Our equipment holds multiple international certifications including CE, GS, RoHS, CSA, and UL. We cooperate with globally recognized control system providers and component manufacturers to ensure stability, shipping to over 50 countries worldwide.

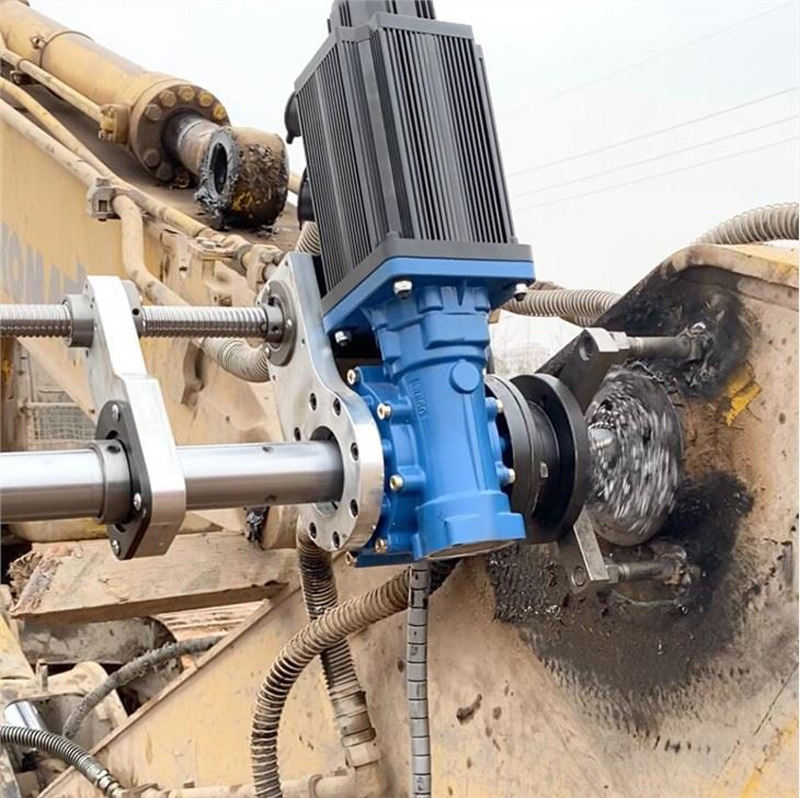

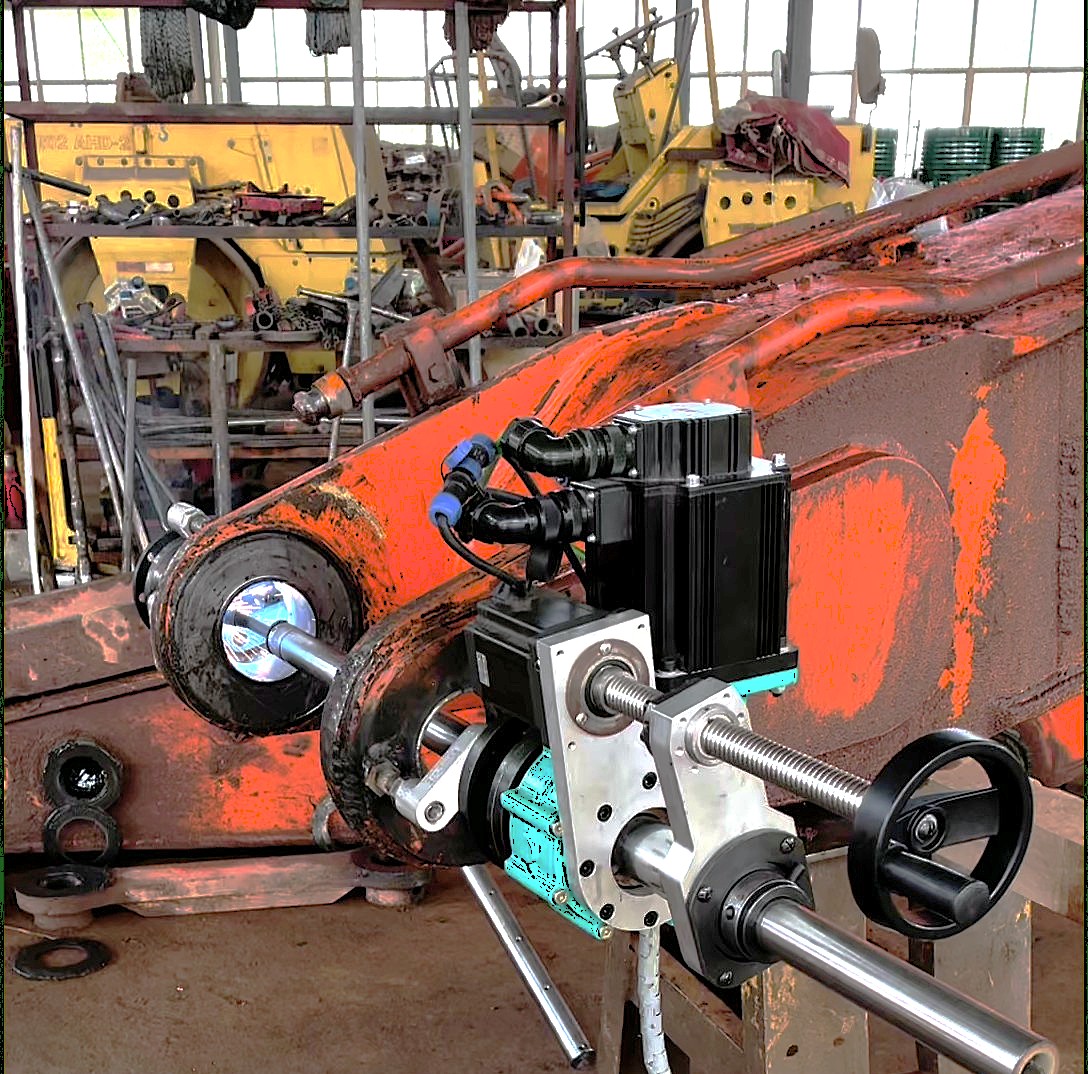

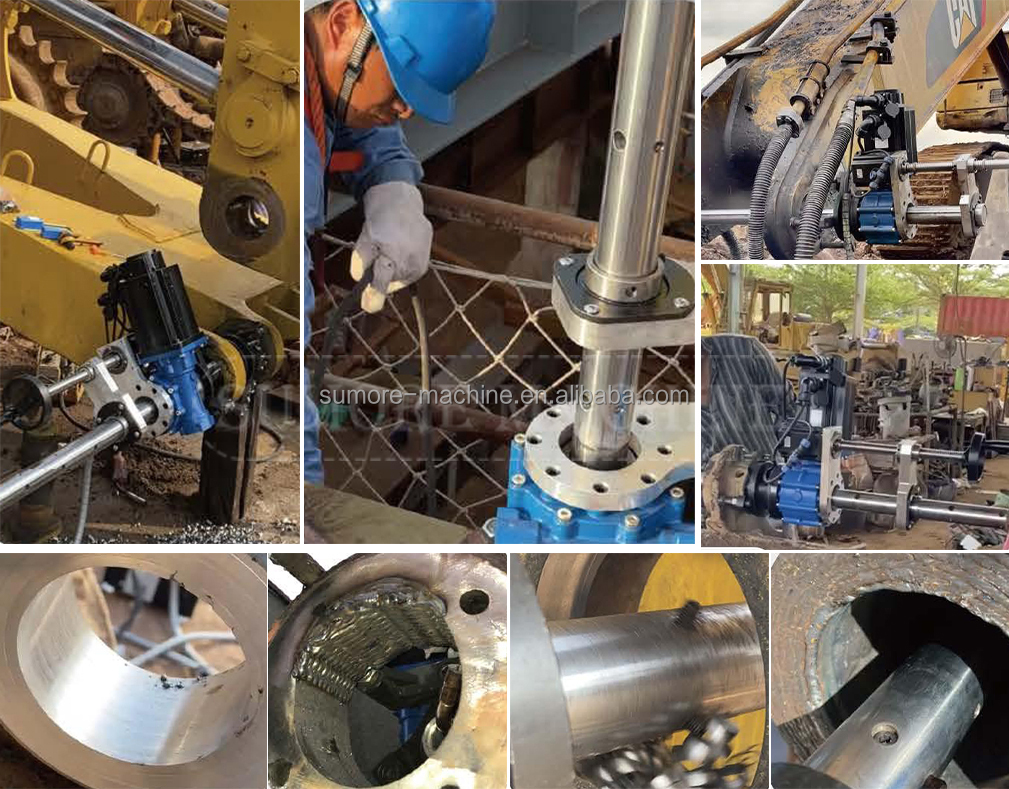

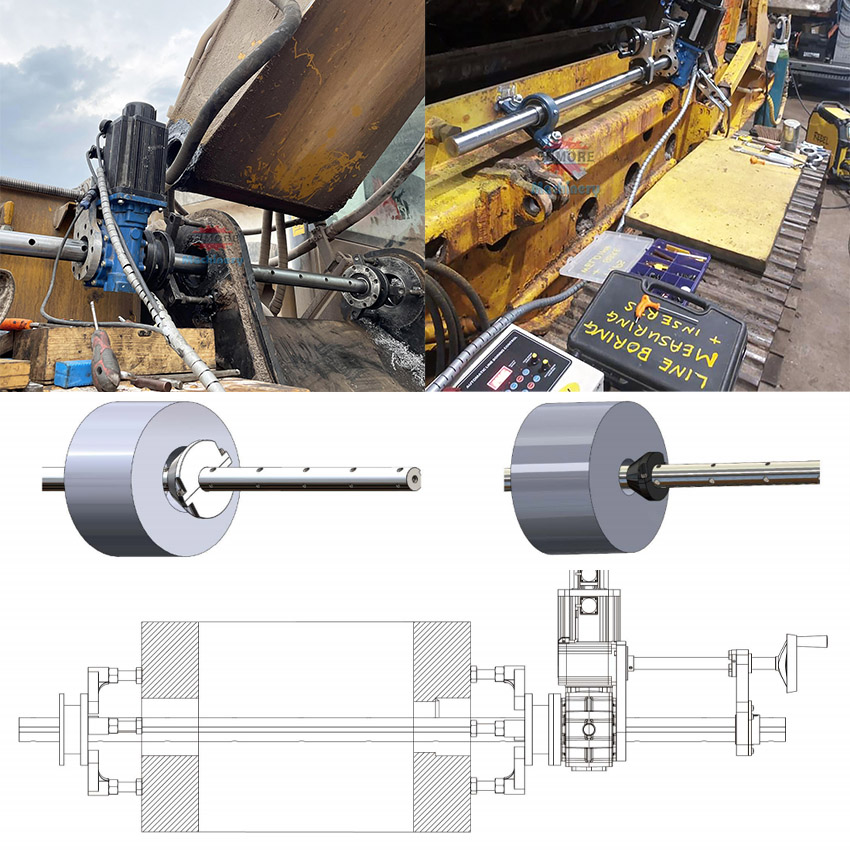

It is specifically designed for on-site machining and repairs. It is widely used to weld and repair holes of large-sized machinery, pivot pin holes of earth-moving equipment, and bearing holes.
Yes, boring hole ranges can be customized according to your specifications. Standard options include 40-160mm, 40-300mm, 40-400mm, 50-160mm, 60-400mm, and 55-300mm.
Quality is maintained through a rigorous control process. We always conduct pre-production sample evaluations before mass production, followed by a comprehensive final inspection prior to shipment.
We specialize in a wide range of industrial equipment including Manual Lathes, CNC Lathes, Manual and CNC Milling Machines, Drill Presses, Machining Centers, and related accessories.
We accept delivery terms including FOB, CFR, CIF, EXW, FAS, and FCA. The accepted payment currencies are USD and CNY.
