Suitable for mortising processing of various wood materials including particle board, medium-density fiberboard, and engineered wood. Maximum drilling diameter is 35mm, maximum processing depth is 60mm, maximum processing length can reach 2500mm, and processing thickness range is 10-80mm. It can meet drilling requirements for panel furniture, doors and windows, decorative materials, and various other industries. Multi-function capability ensures high return on investment.

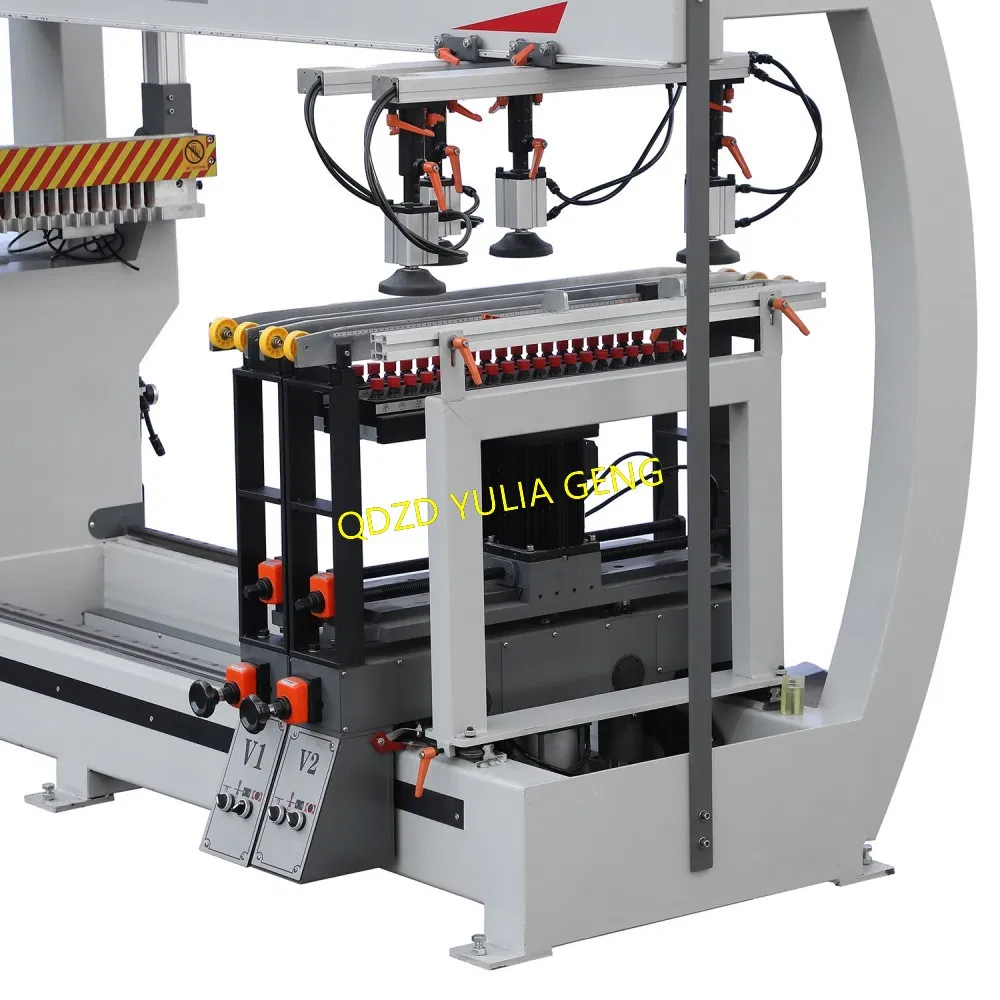

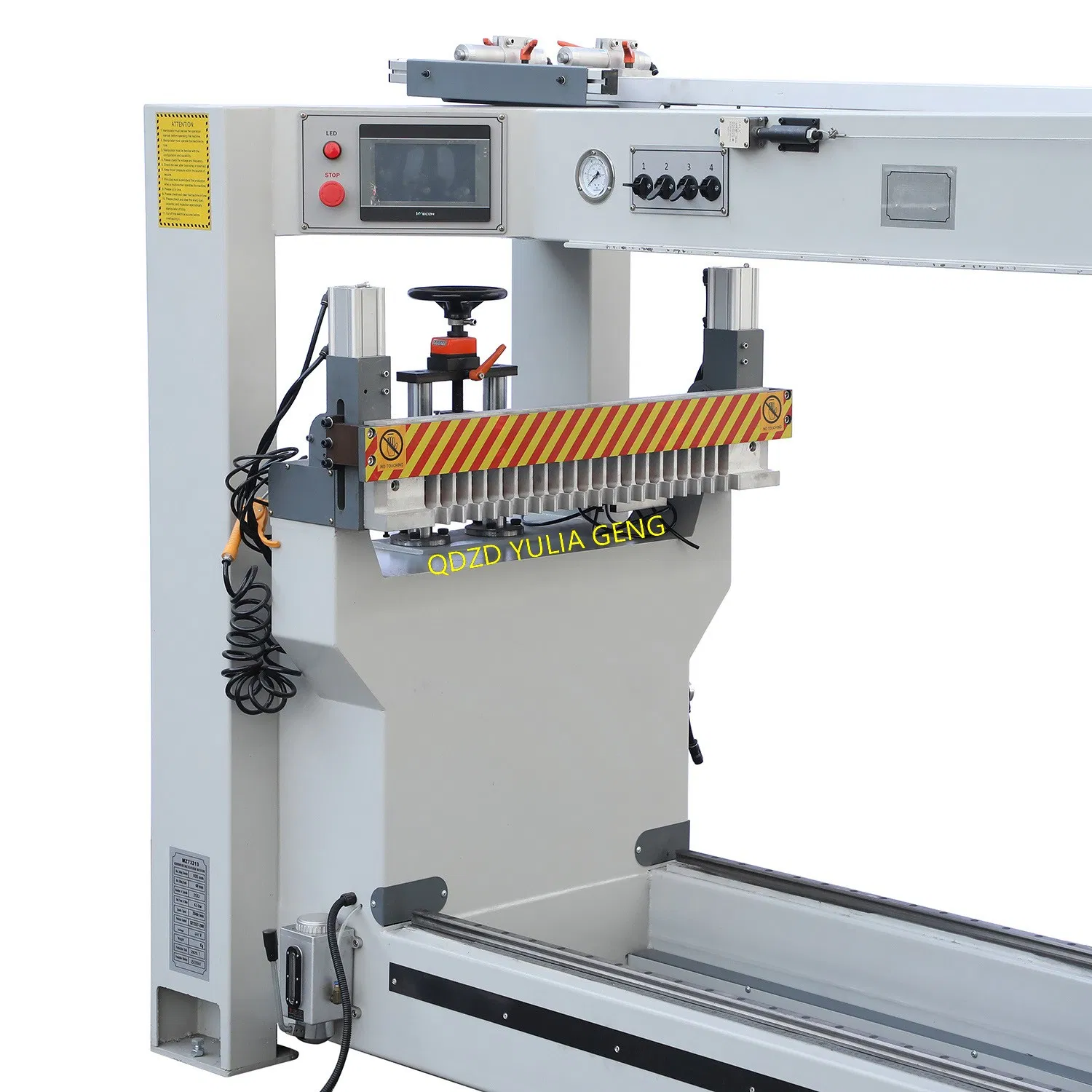

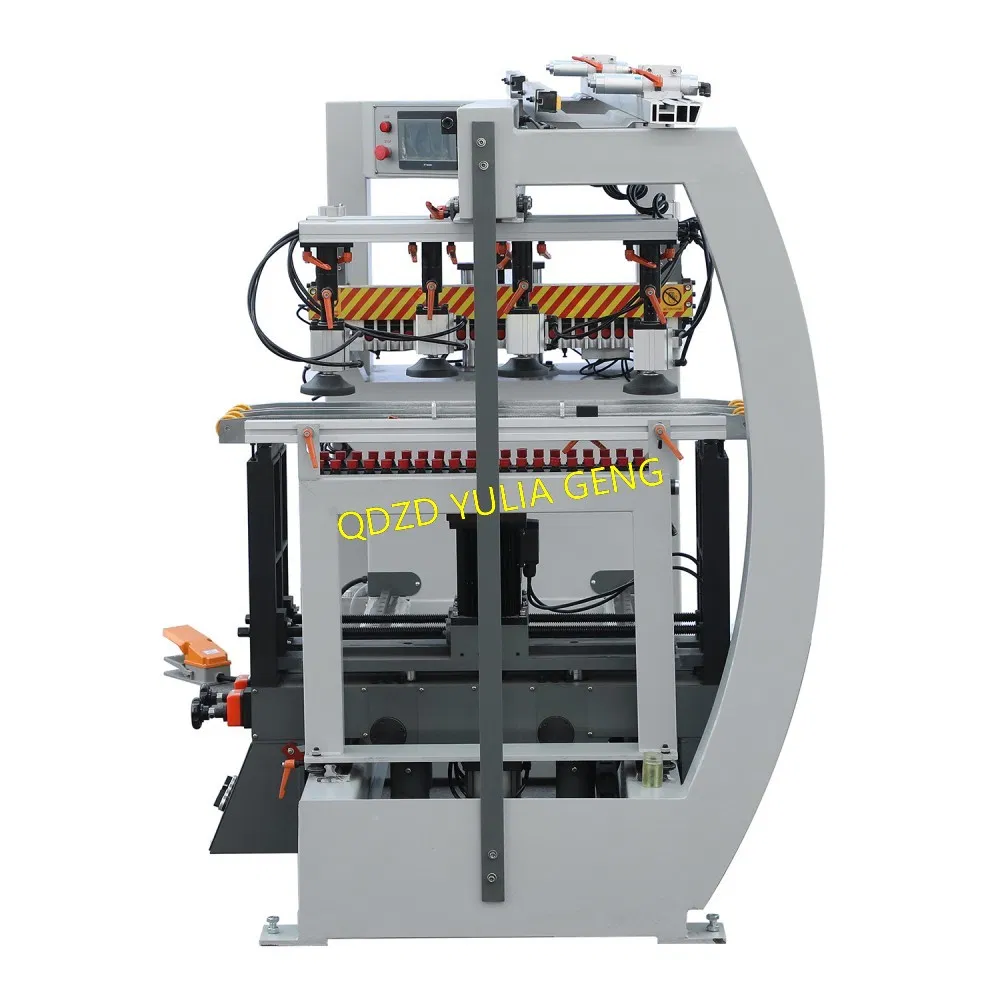

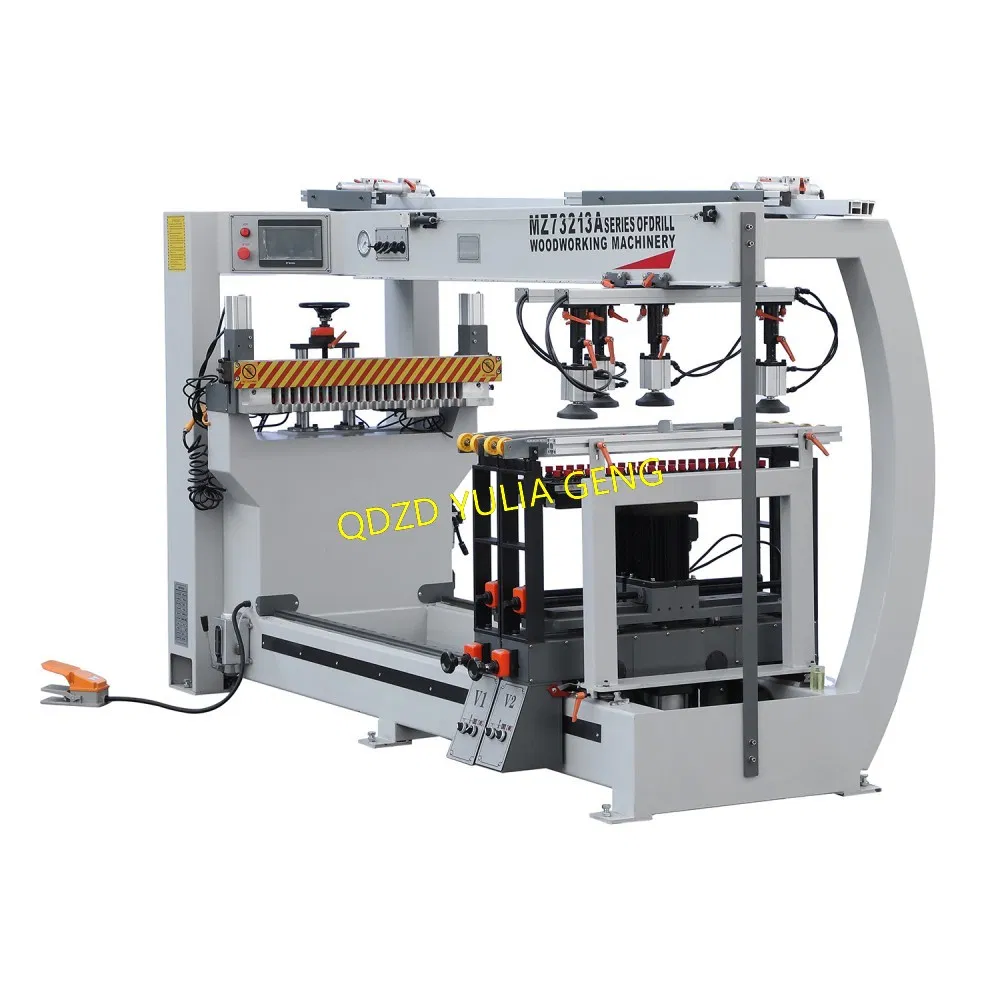

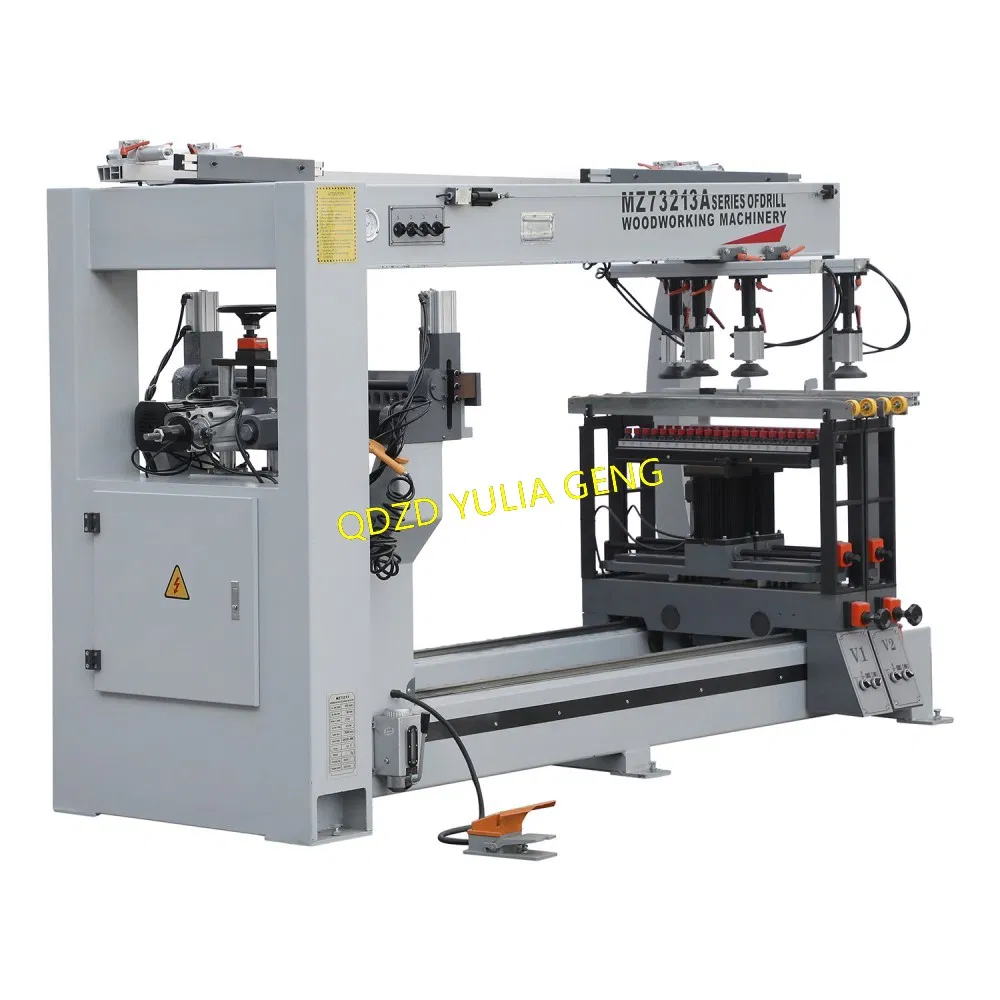

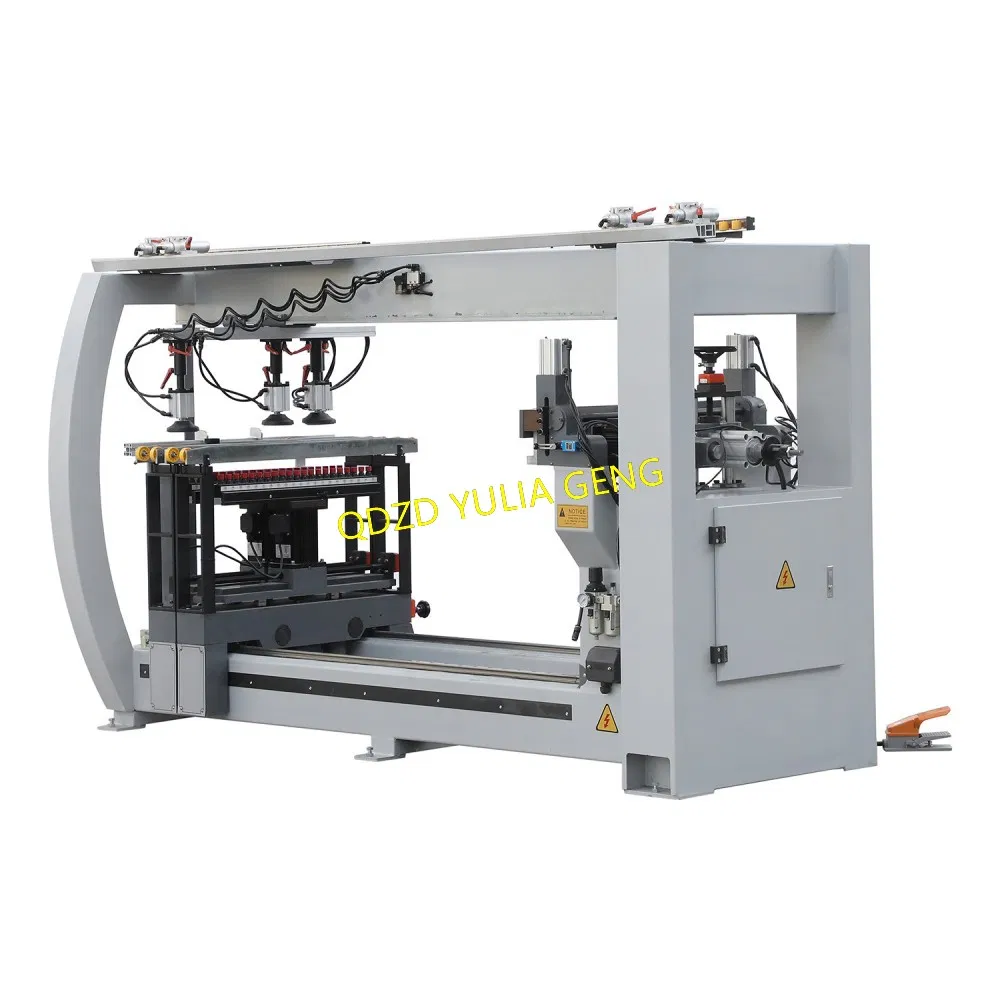

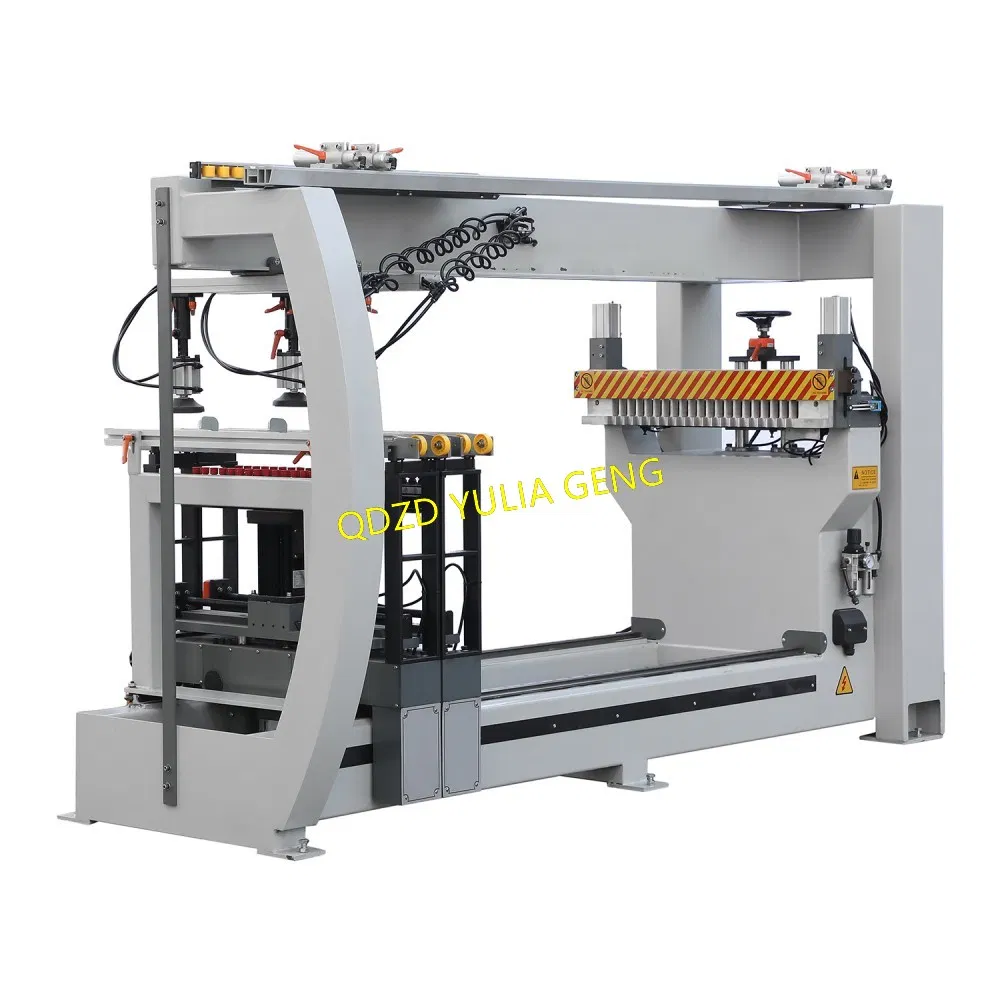

The MZ73213A features a triple-row multi-spindle drilling system, capable of completing multiple hole positions across three rows in a single operation, with spindle speeds reaching 2840r/min. Compared to single-row drilling machines, work efficiency is improved by 2-3 times. It is especially suitable for batch drilling production of panel furniture components (such as cabinets, wardrobes, and custom furniture), significantly reducing processing cycles and increasing production capacity.

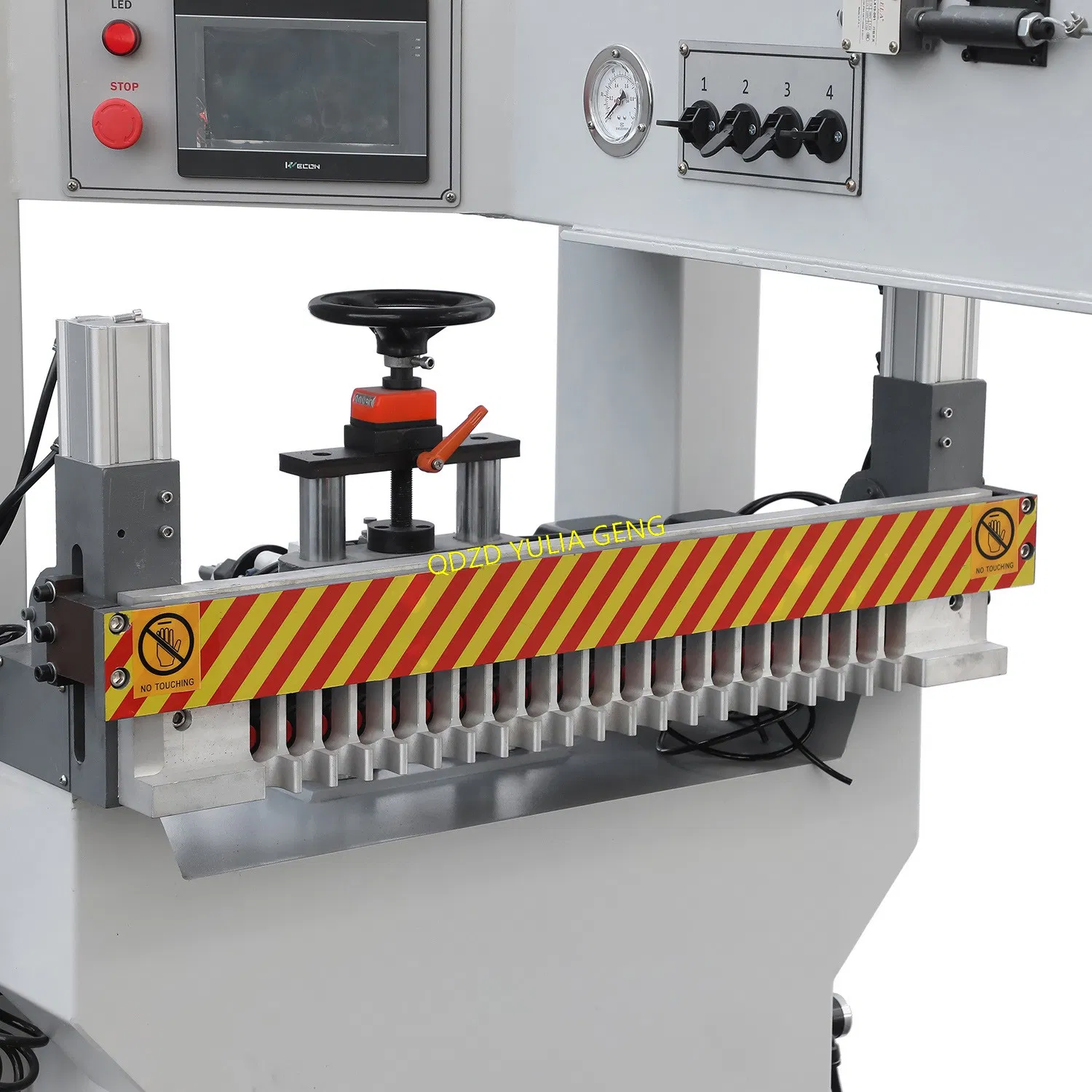

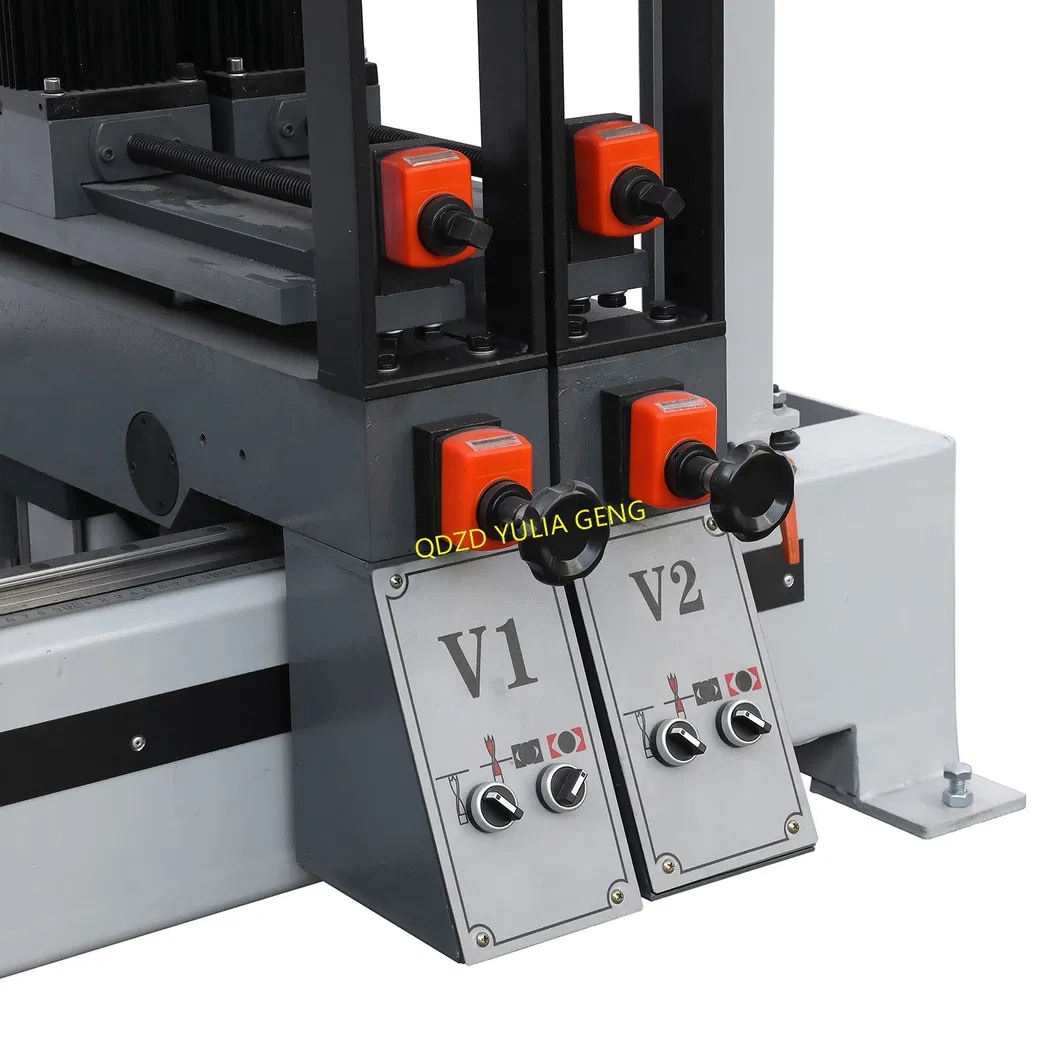

All drill bits adopt quick-connector design, enabling fast and convenient bit changes to reduce downtime. Equipped with digital dimension calculator for intuitive display of processing parameters, improving work efficiency. The drill row has a large drilling range (vertical drill processing hole distance 130mm-1800mm), allowing flexible adjustment of drill seat quantity and layout to adapt to different processing requirements.

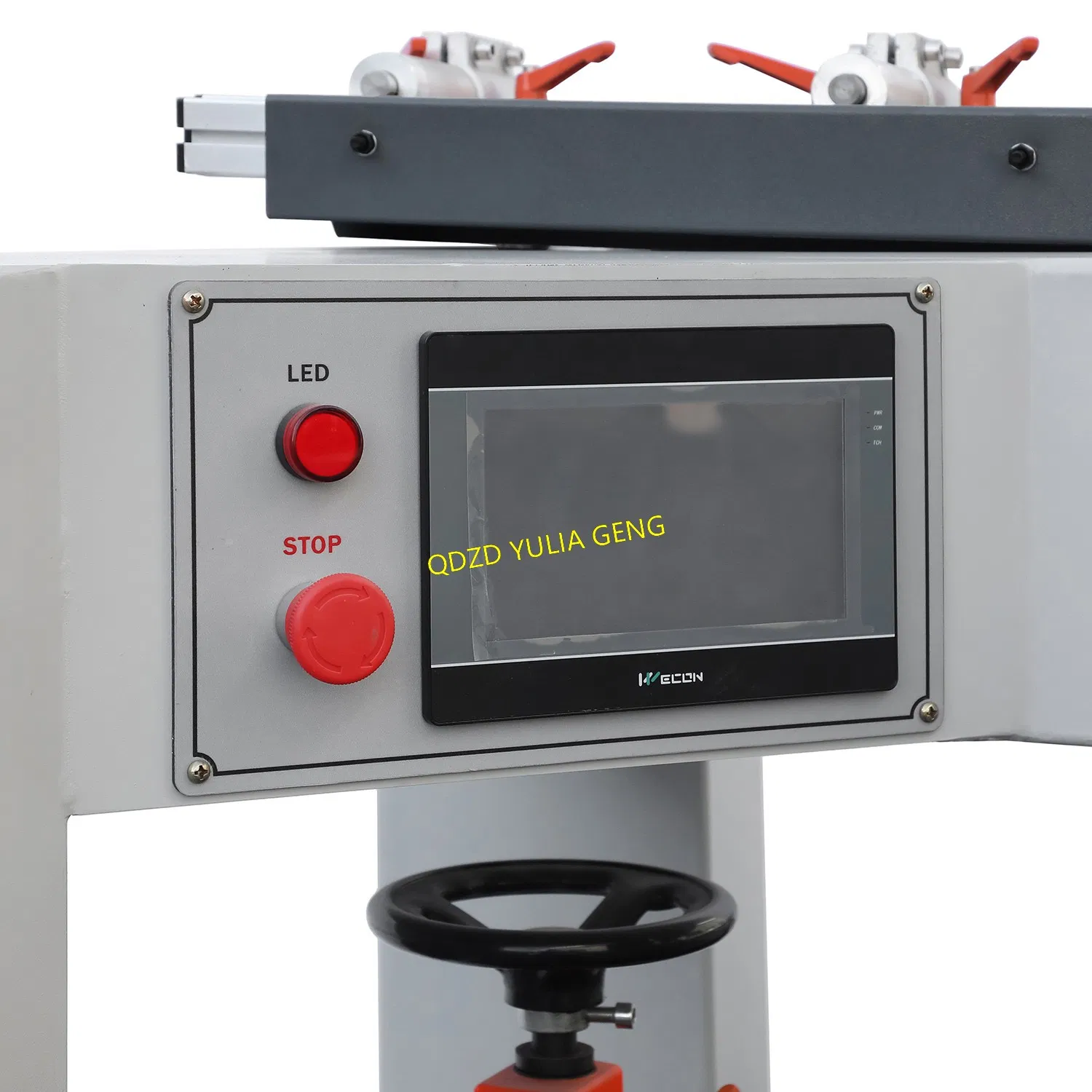

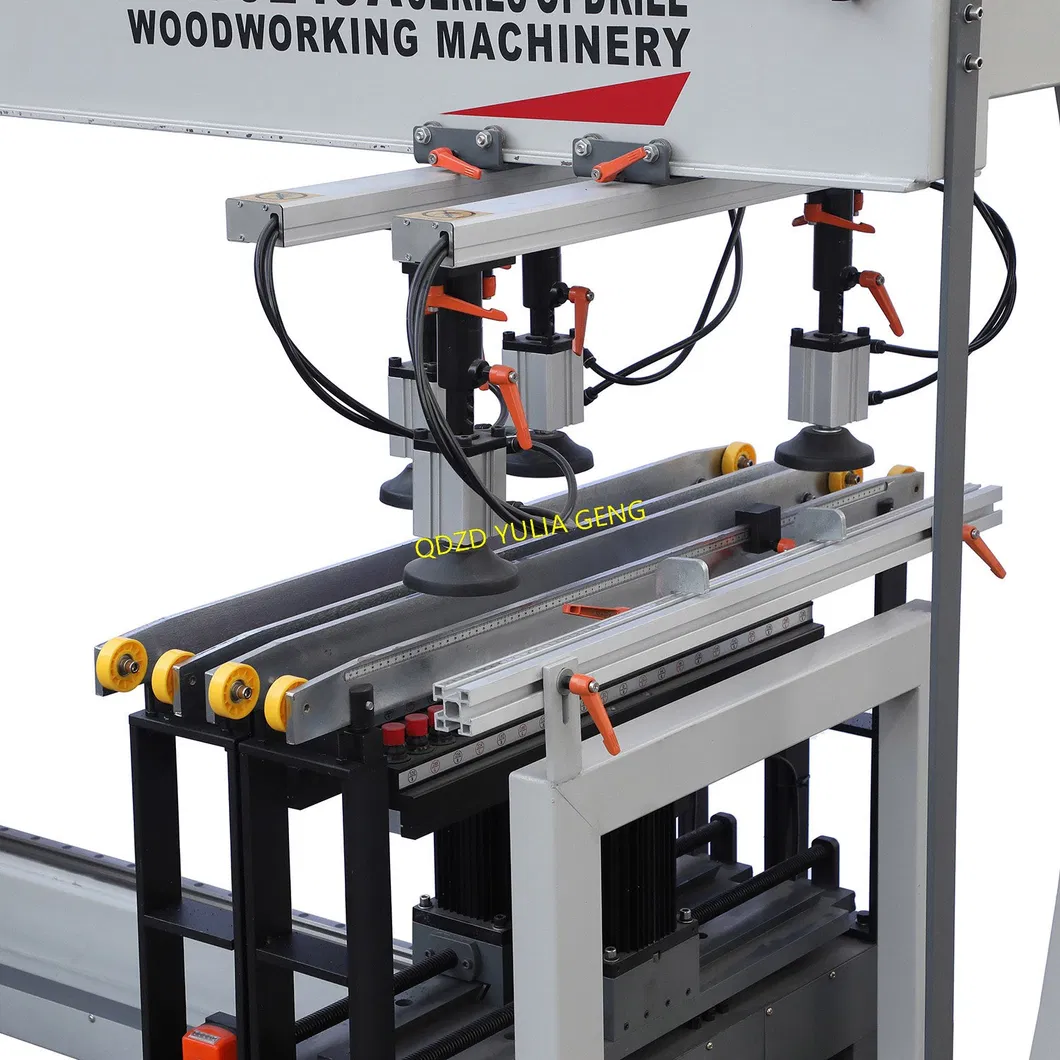

Equipped with brand-name touch screen and PLC industrial control system (optional), enabling automated control. The working process adopts pneumatic workpiece clamping and pneumatic tool feed, allowing continuous multiple operations with a single setting. The control panel can display total processing counts. The system offers powerful functionality with low failure rates, reducing dependence on operator skill levels and minimizing human errors.

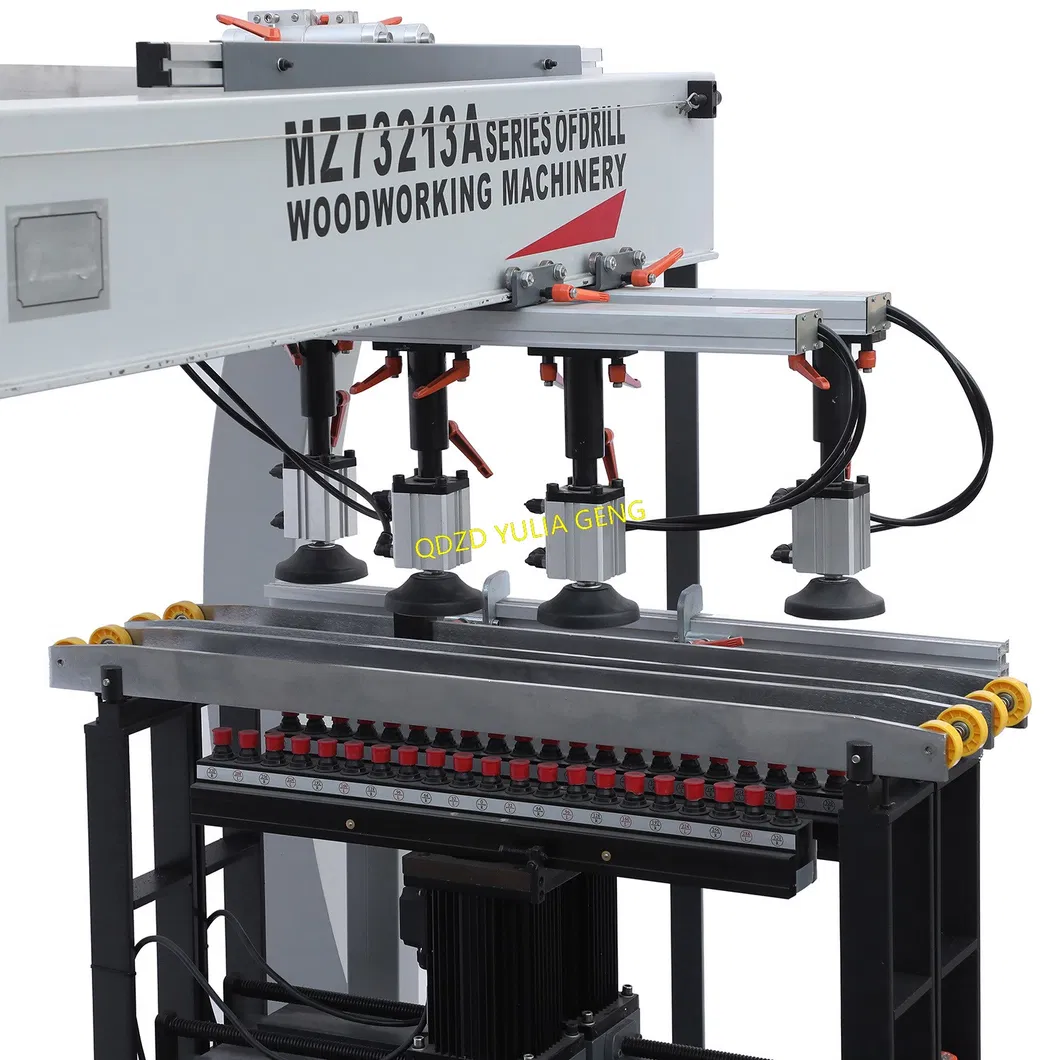

Machine components are made from high-quality steel, undergoing high-temperature annealing and high-strength heat treatment to eliminate internal stresses, ensuring no deformation during long-term use. Features imported original drill rows, linear guides, sliders, and motors for durability. Drilling depth and distance are positioned using photoelectric induction switches (optional). Optional magnetic scale/ruler configuration provides higher positioning accuracy and repeatability, ensuring superior processing precision and consistency.
| Technical parameters | Specification details |
|---|---|
| Max. diameter of holes | 35 mm |
| Depth of drilled holes | 0-60 mm |
| The number of spindles | 63 |
| Center distance between spindles | 32 mm |
| Rotation of spindle | 2840 r/min |
| Total motor size | 4.5 kw |
| Suitable voltage | 380 v |
| Air pressure | 0.5-0.8 Mpa |
| Gas consumption for drilling ten panels per minutes approximately | 20L/min Approximately |
| Max. distance of the two longitudinal heads | 1850 mm |
| Height of working platform off the ground | 800 mm |
| Over size | 2600x2600x1600 mm |
| Packing size | 2700x1350x1650 mm |
| Weight | 1260 kg |
In today's competitive furniture manufacturing industry, equipment reliability equals productivity-and stability means profit.
As a National High-Tech Enterprise and officially recognized "Specialized, Refined, Distinctive, and Innovative" (SREDI) company, we have spent over a decade delivering high-quality, high-performance woodworking machinery backed by world-class service, precision engineering, and end-to-end support for furniture factories worldwide.
Uncompromising Quality You Can Trust

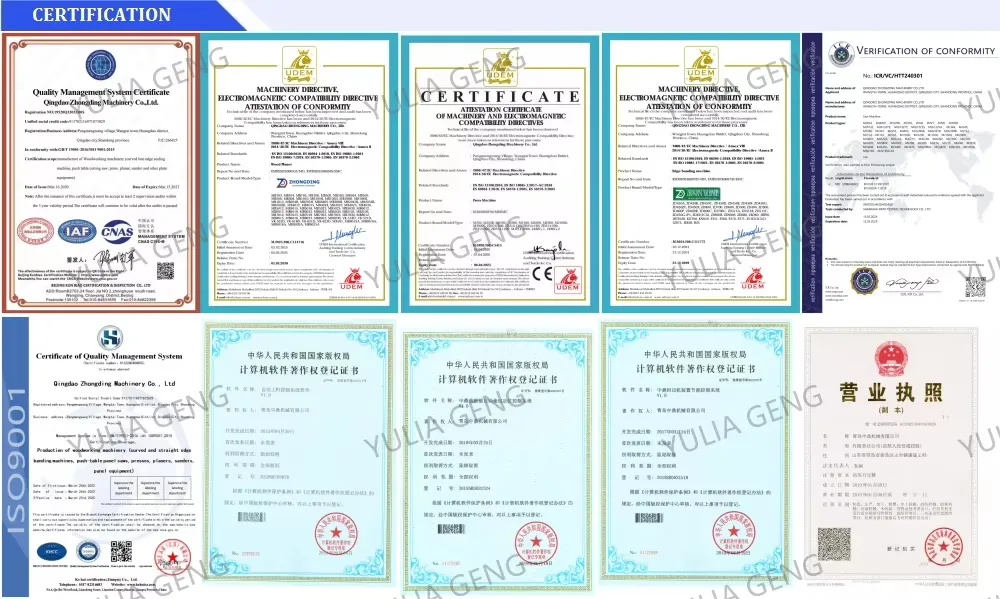

Every machine is built with premium-grade steel frames and globally trusted components-including German-style linear guides, Japanese servo systems, and Taiwanese precision gearboxes. Our production strictly adheres to ISO 9001 quality standards, and key models are CE-certified. We don't chase low prices-we engineer durability, consistency, and long-term value. Our machines boast industry-leading mean time between failures (MTBF), ensuring uninterrupted, high-efficiency production.
Expert Installation & Fast Commissioning - Ready to Run from Day One
Our field engineers average 10+ years of hands-on installation experience across automatic edge banders, CNC panel saws, multi-bore drilling units, and integrated production lines. Whether you're building a new factory or upgrading existing capacity, we provide free on-site layout planning, precision alignment, and turnkey installation-so your equipment runs smoothly, accurately, and at full capacity the moment it's powered on.
Advanced Technology to Solve Real Production Challenges
From complex curved panels and small-batch customization to retrofitting legacy machines, we thrive on tough challenges. With 18 national patents and 11 software copyrights, we offer rapid custom-engineering solutions. Our proprietary intelligent control system features parameter memory, self-diagnosis, remote assistance, and intuitive operation-making advanced automation accessible even to smaller workshops.
True One-Stop Procurement - Simplify Your Supply Chain

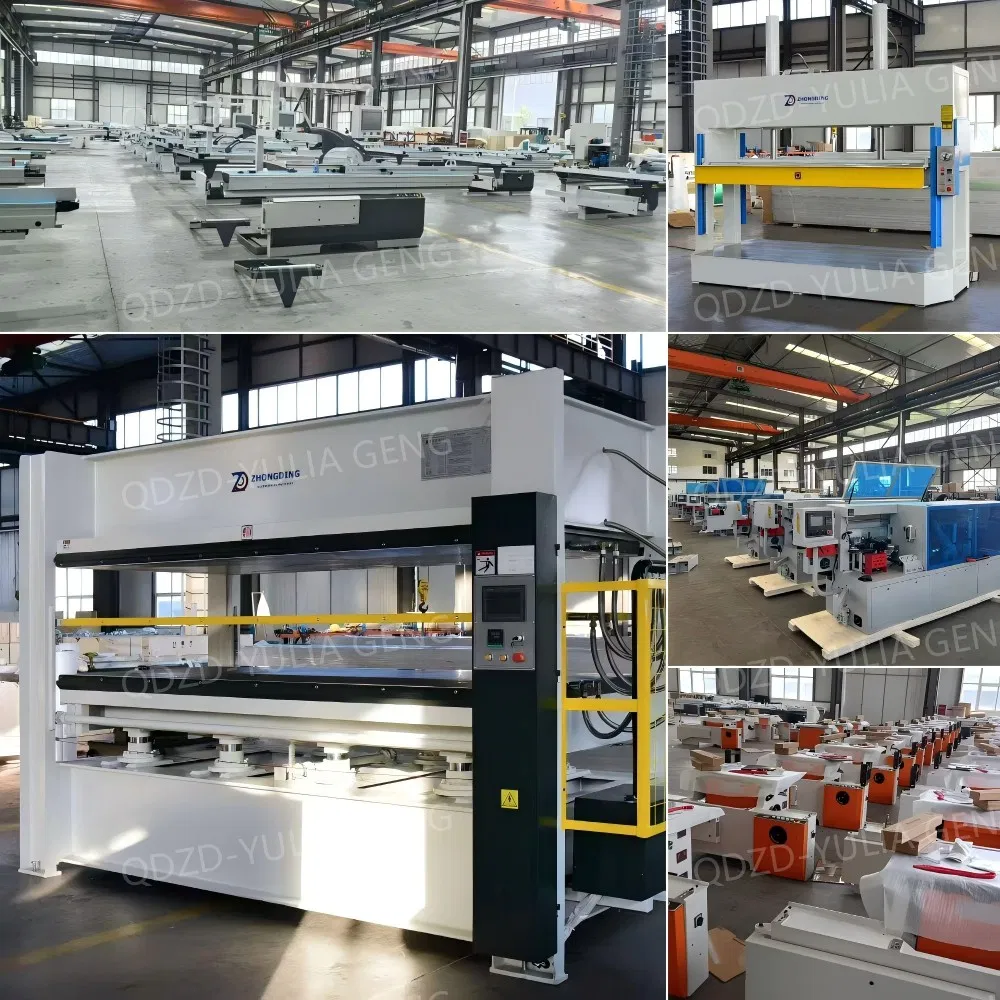

Why source from multiple vendors? We supply a complete range of woodworking machinery: cutting, edge banding, drilling, sanding, and packaging-all from one reliable source. We also offer professionally refurbished pre-owned machines at exceptional value, giving you flexibility without compromising performance. One partner. One solution. Full factory coverage.
Global After-Sales Support - Always Within Reach
We stand by our promise: 24-hour response, 48-hour solution proposal, and local service coverage. For international clients, we provide real-time video support, remote diagnostics, and direct spare parts shipping. Plus, lifetime technical assistance ensures you're never left stranded-no matter where you operate.
Choosing our woodworking machinery isn't just buying a machine-it's partnering with a team that understands your production needs, respects your timeline, and delivers excellence at every step.
Whether you run a panel furniture factory, a custom cabinet shop, or an export-oriented woodcraft business-our machinery empowers your success through quality, intelligence, and unwavering support. Let's build your smart workshop-together.
💡 What materials can the MZ73213A drilling machine process?
The machine is designed to drill a variety of wood materials, including particle board, medium-density fiberboard (MDF), and engineered wood.
💡 What are the maximum drilling dimensions of this machine?
It features a maximum drilling diameter of 35mm, a maximum drilling depth of 60mm, and can handle workpiece processing thicknesses ranging from 10mm to 80mm.
💡 How does the triple-row spindle system improve efficiency?
With a total of 63 spindles (21*3) operating up to 2840 r/min, it can perform multi-hole synchronous processing in one single operation. This improves efficiency by 2 to 3 times compared to single-row machines.
💡 What type of control system does the machine use?
The machine is equipped with a brand-name touch screen and a PLC industrial control system for automated control, featuring pneumatic workpiece clamping and tool feeding.
💡 Can the drilling spacing and layout be customized?
Yes. The drill row has a large drilling range (longitudinal heads distance of 140mm-1850mm), allowing flexible adjustment of drill seat quantity and layout to adapt to different processing patterns.
💡 What are the electrical and air requirements for operation?
The machine runs on a suitable voltage of 380V, requiring an air pressure of 0.5-0.8 Mpa with a gas consumption of approximately 20L/min.
