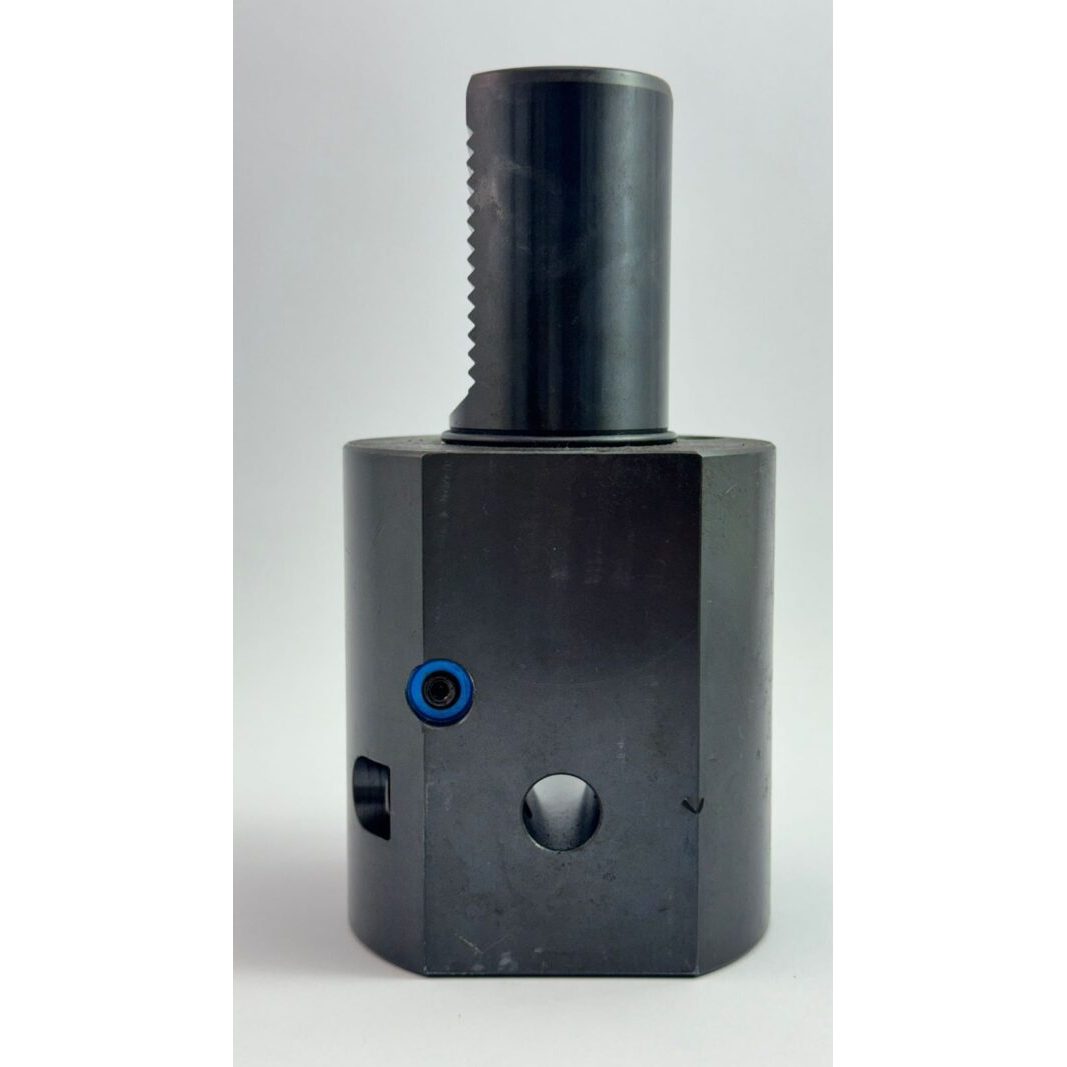

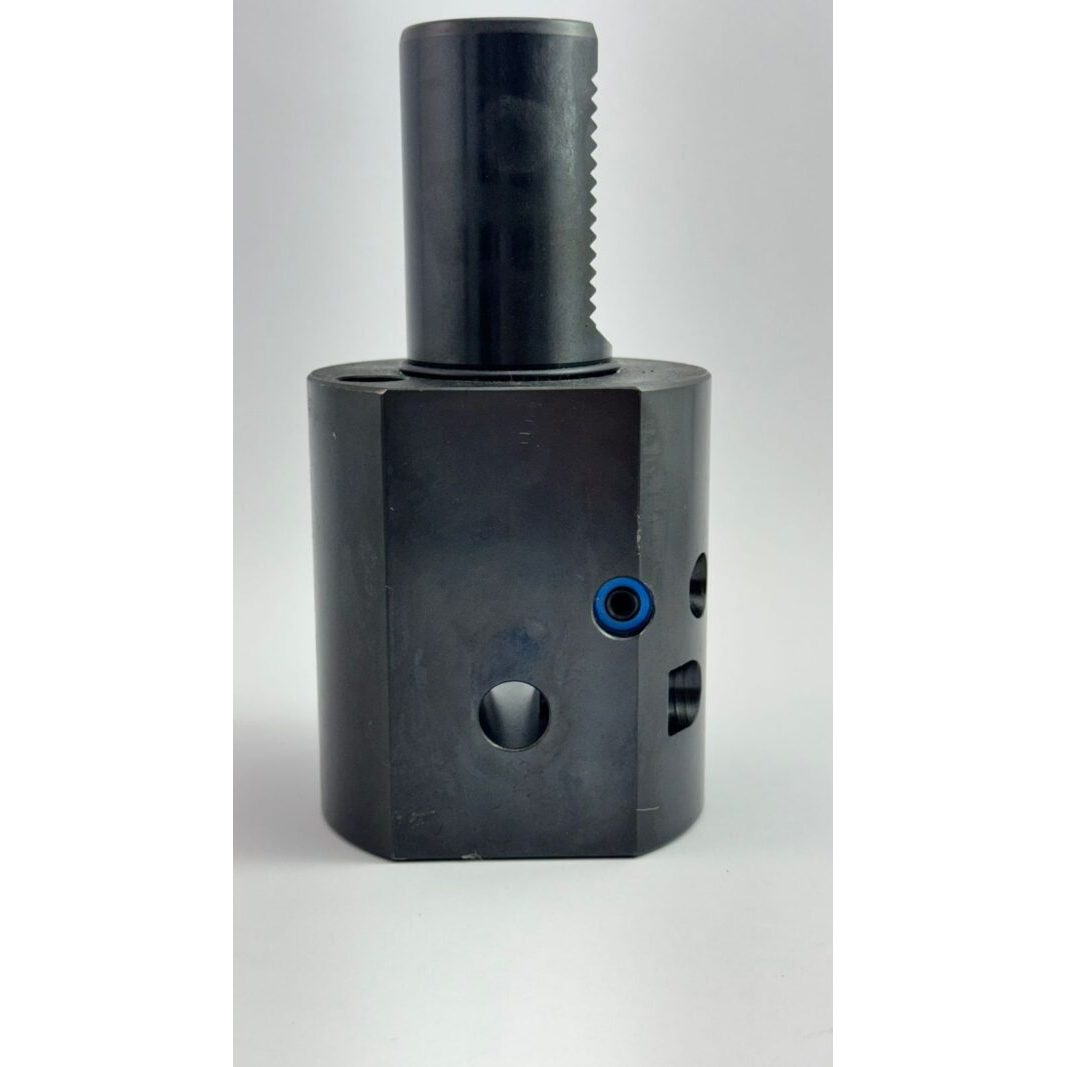

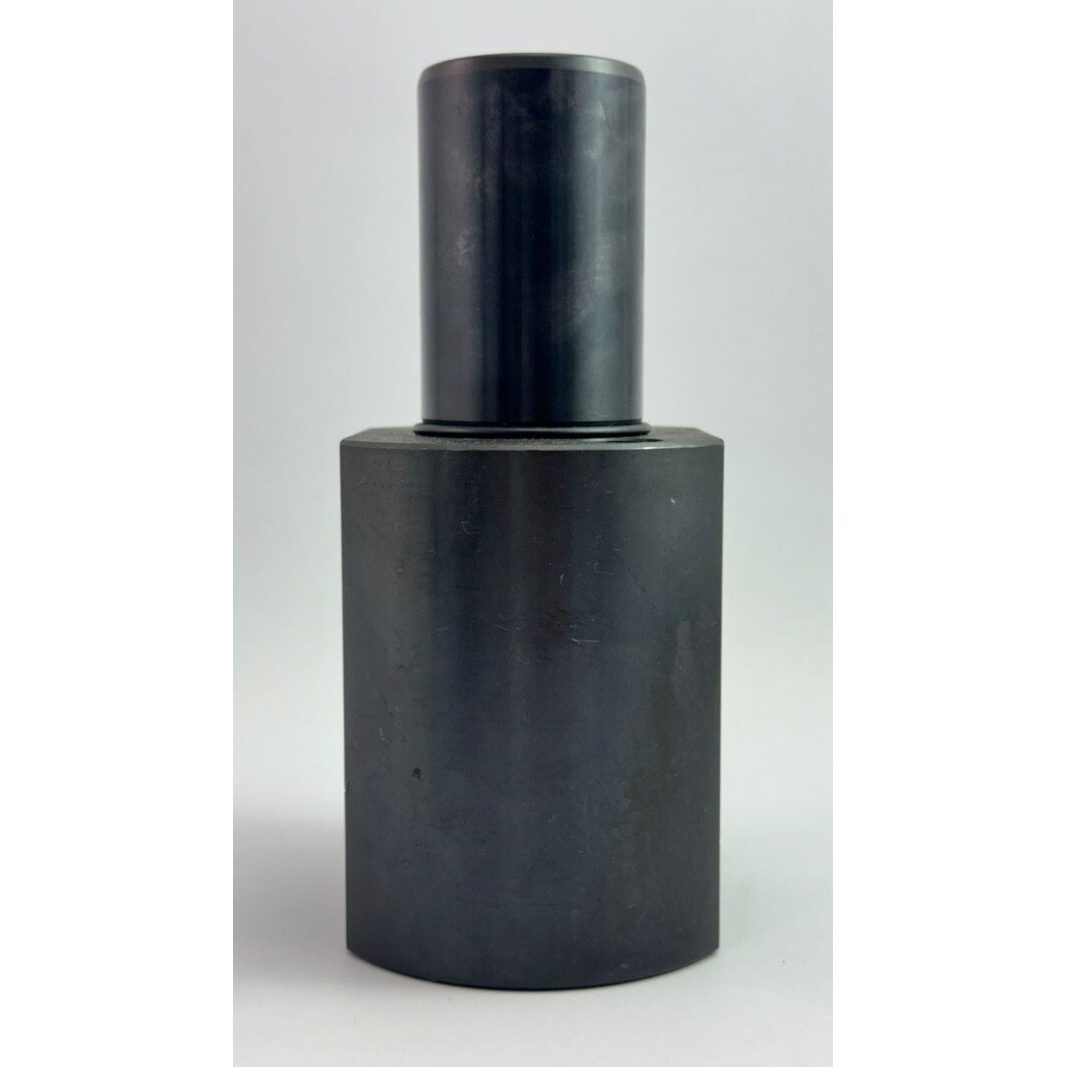

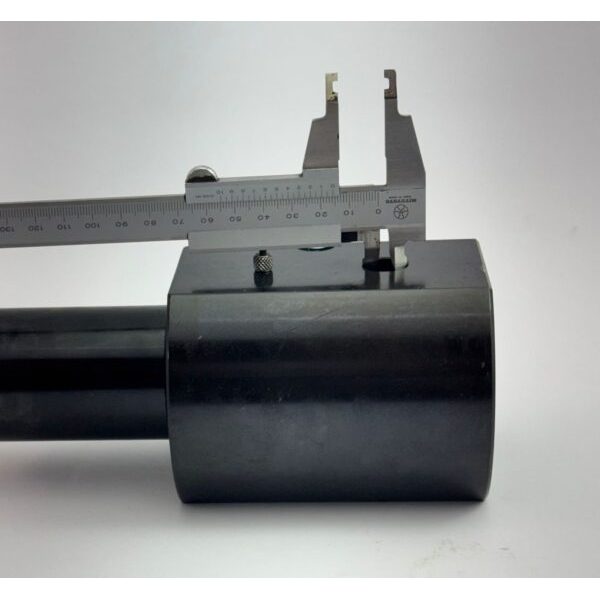

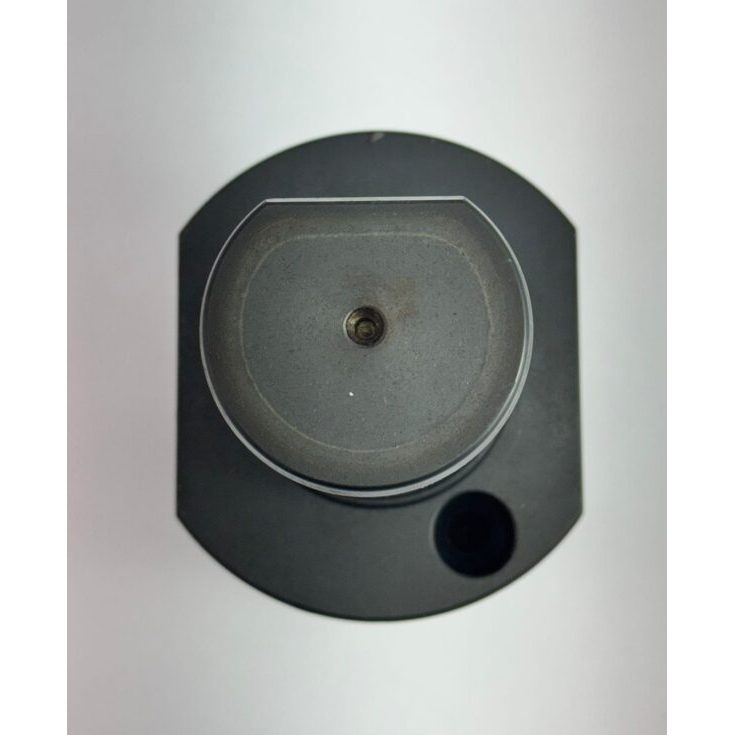

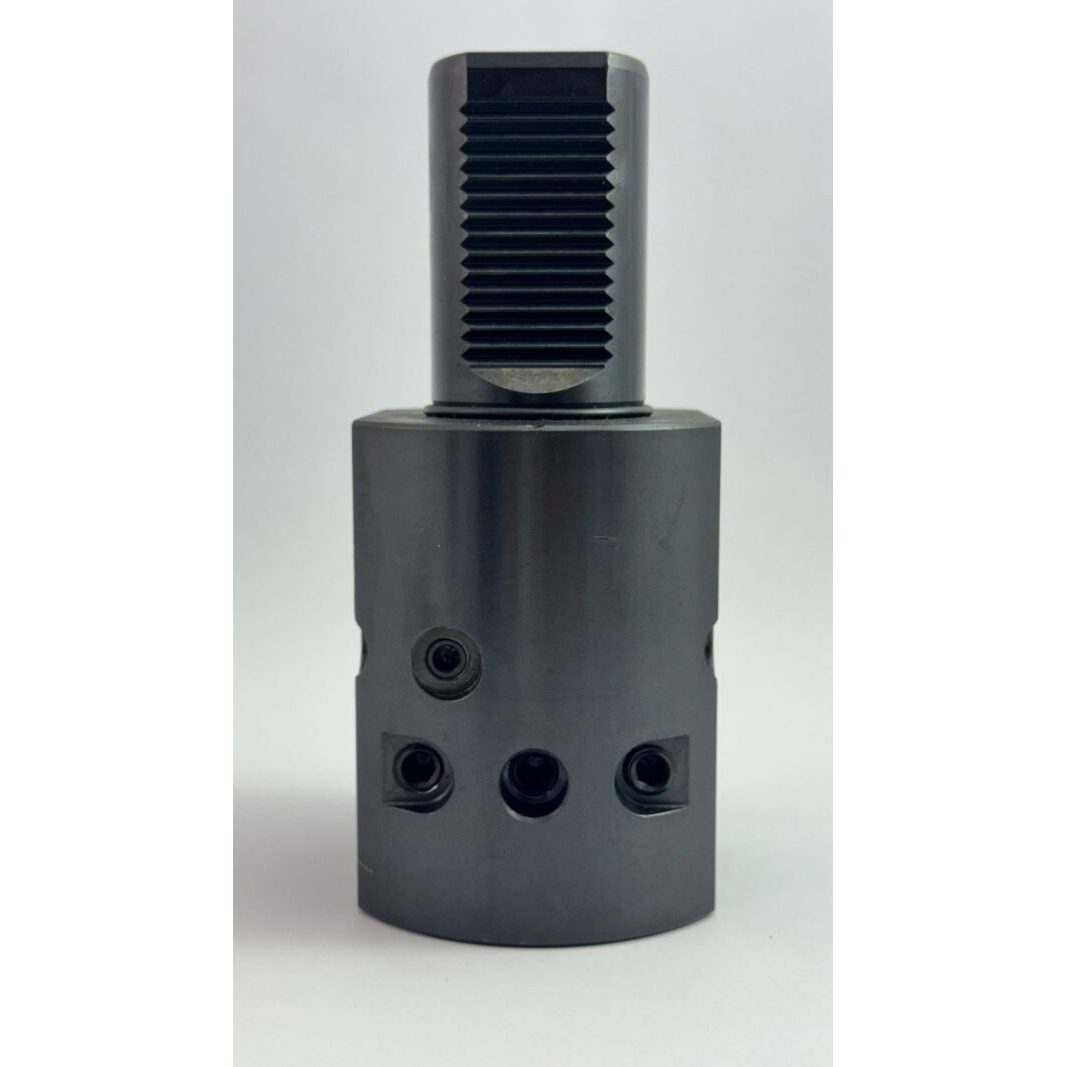

Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
1 / 5
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling

Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling

Send Inquiry

Product Description

Product Overview

This precision-engineered tool holder is designed for high-performance machining applications, featuring a robust VDI50 interface and dimensions of 18×75 mm. It is specifically tailored for use with drill rods and supports external radial cooling, ensuring optimal heat dissipation during operation. The design enhances tool stability and accuracy, making it suitable for demanding industrial environments.

Technical Specifications
Model / Type VDI50
Manufacturer EWS
Country of Origin Germany
Weight 6.7 kg
Dimensions 195 × 60 × 60 mm
Size Details 190 × 120 × 120 mm
Condition New
Additional Information Drill rod holder with external cooling, steel height 75 mm

Core Features

  • VDI50 Interface: Ensures compatibility with standard machine tools and provides secure clamping for consistent performance.
  • External Radial Cooling: Integrated cooling channels allow efficient coolant delivery directly to the cutting zone.
  • Precision Machining: Manufactured to tight tolerances for reliable and repeatable results in drilling operations.
  • Durable Construction: Made from high-quality materials to withstand heavy-duty usage and maintain dimensional accuracy.
  • Optimized Design: The 18×75 mm configuration offers balanced rigidity and accessibility.

Reasons to Purchase

  • Enhanced Efficiency: The radial cooling system reduces thermal deformation and extends tool life, minimizing downtime.
  • Reliability: Designed for consistent performance in automated and manual machining setups.
  • Industry Compatibility: Suitable for CNC lathes, milling machines, and other equipment using VDI50 tooling systems.
  • Cost-Effective Solution: Offers long-term value through durability and reduced maintenance requirements.
Product Gallery
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Tool Holder Vdi 50 1875 Drill Rod Holder With External Radial Cooling
Frequently Asked Questions
Q What machines are compatible with this VDI50 tool holder?
This tool holder is compatible with standard CNC lathes, turning centers, and milling machines configured for VDI50 tooling interfaces.
Q How does the external radial cooling system function?
The external radial cooling setup utilizes integrated channels to direct the coolant flow straight to the cutting zone, maintaining optimal thermal stability during high-speed machining.
Q What is the steel height dimension for this holder?
The steel height of this drill rod holder is 75 mm, offering balanced rigidity and precise structural alignment.
Q What are the exact product dimensions and weight?
The tool holder weighs 6.7 kg. Its outer structure dimensions are 195 × 60 × 60 mm (with packing size configurations measuring 190 × 120 × 120 mm).
Q Who is the manufacturer of this product and where is it made?
This high-quality VDI50 tool holder is manufactured by EWS in Germany, ensuring compliance with strict industrial standards.
