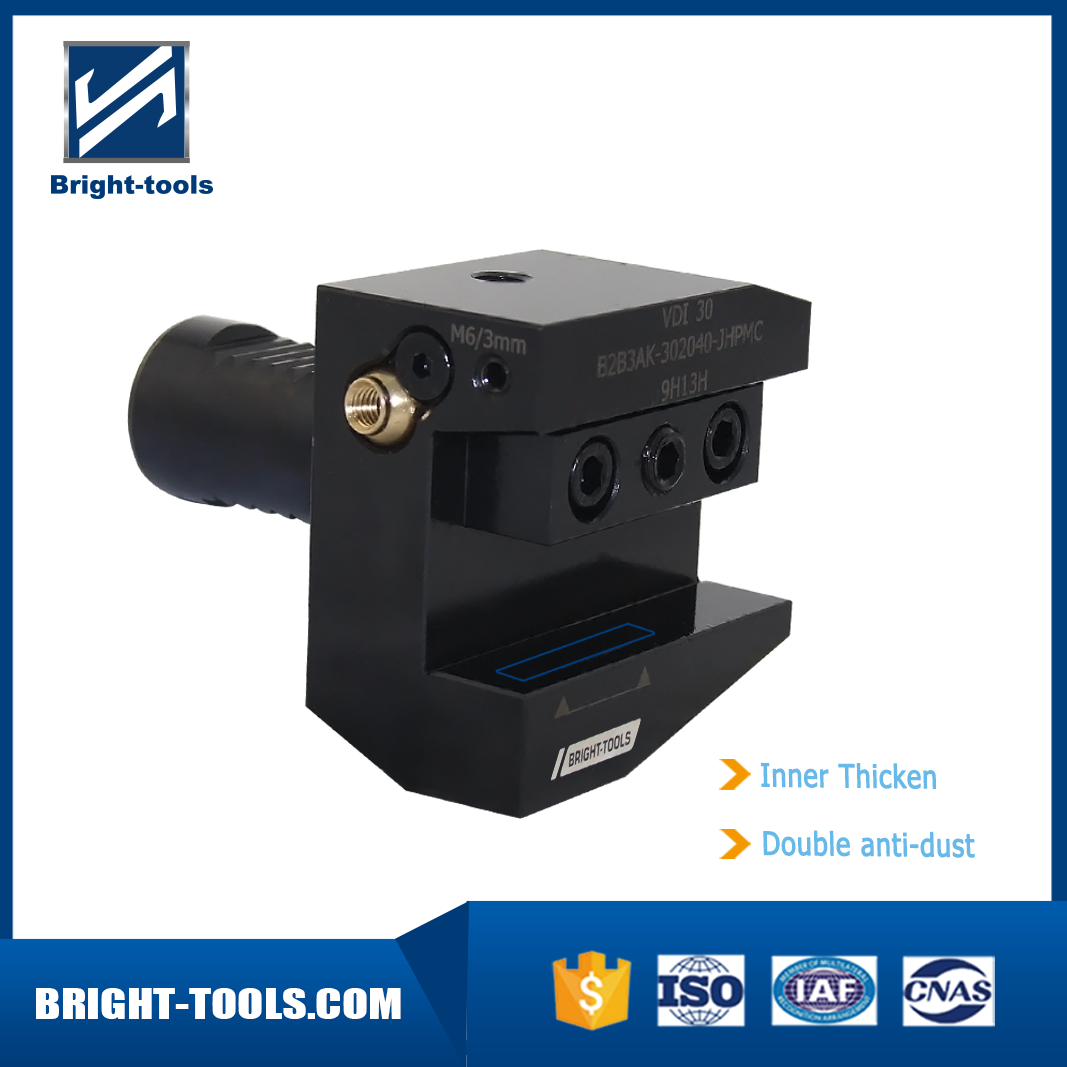

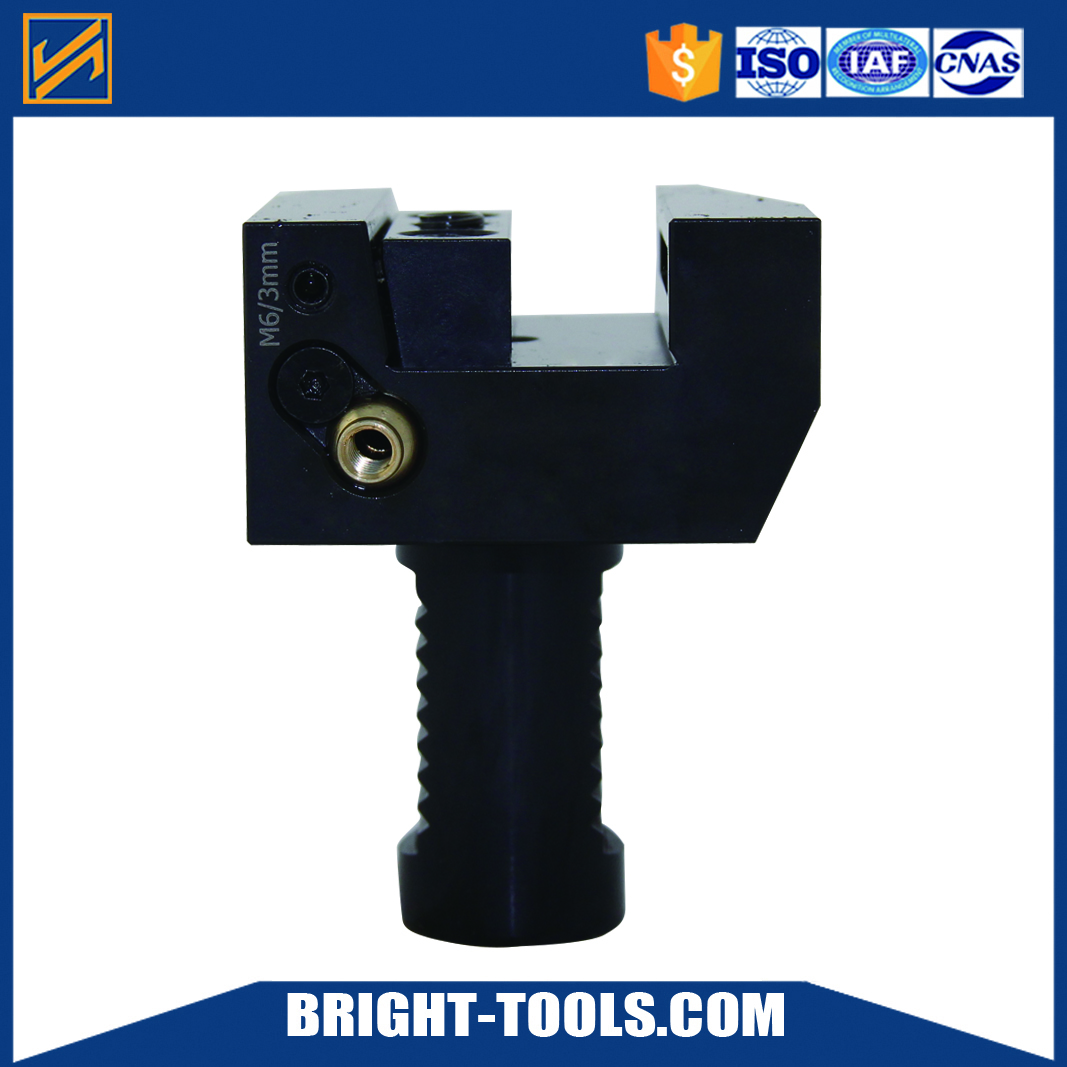

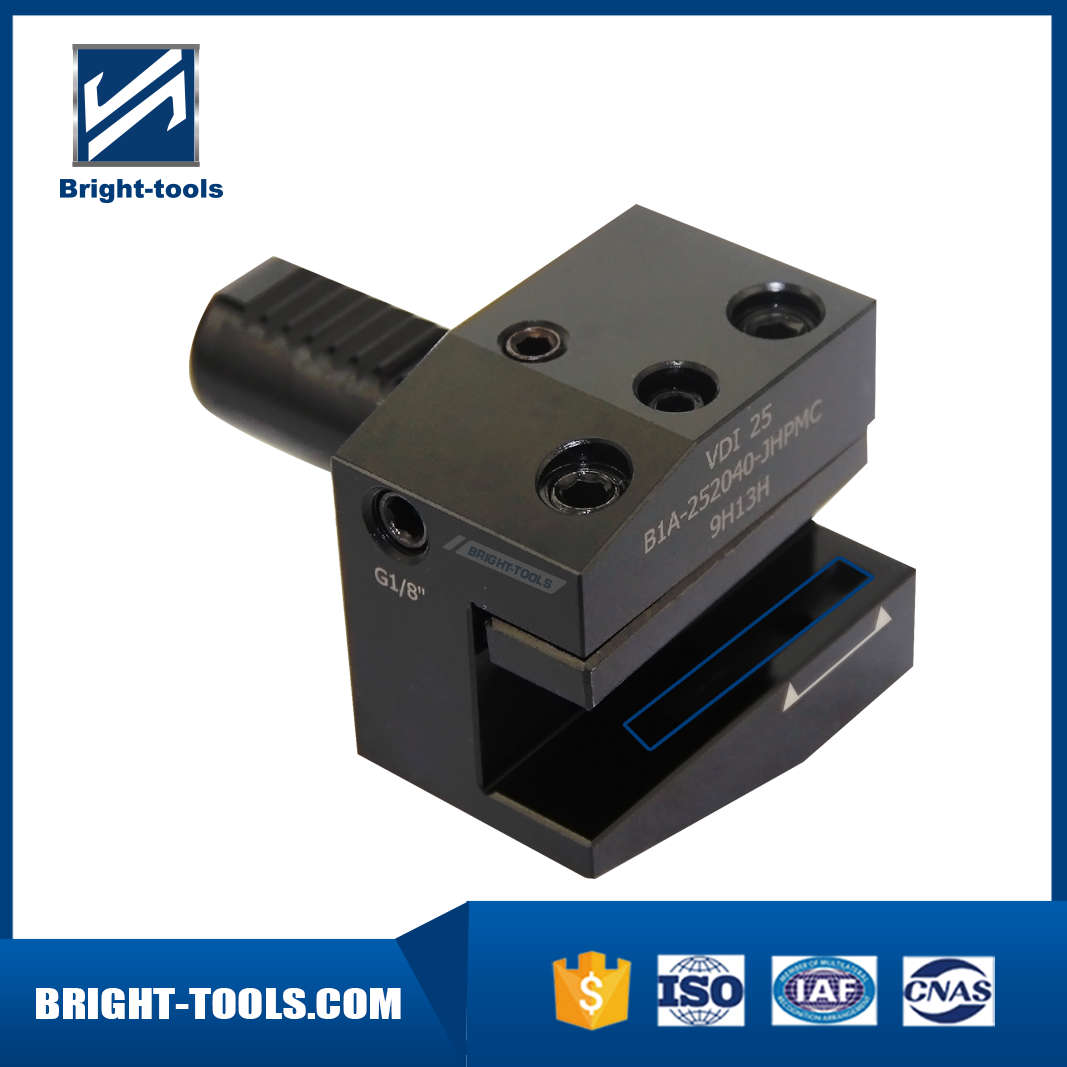

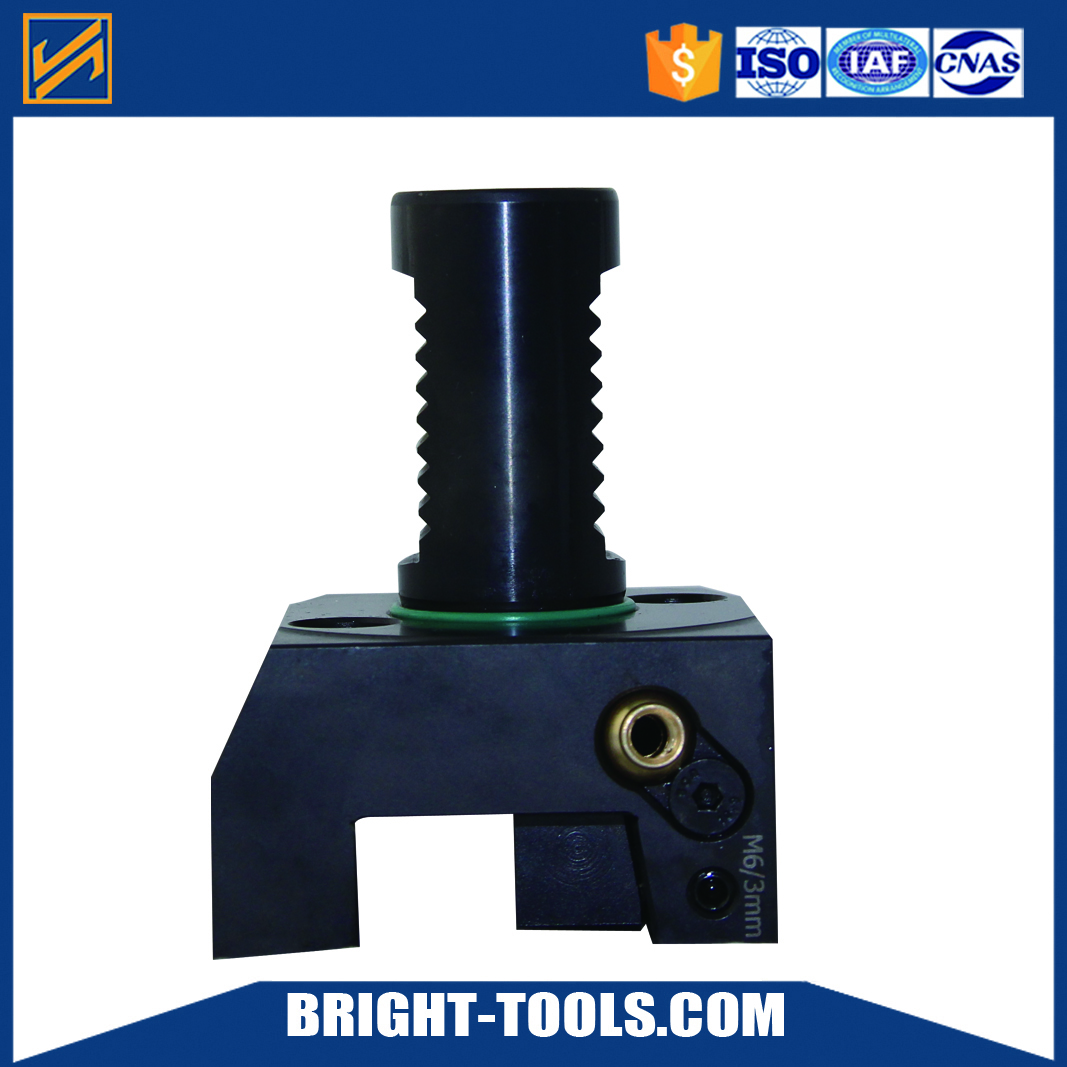

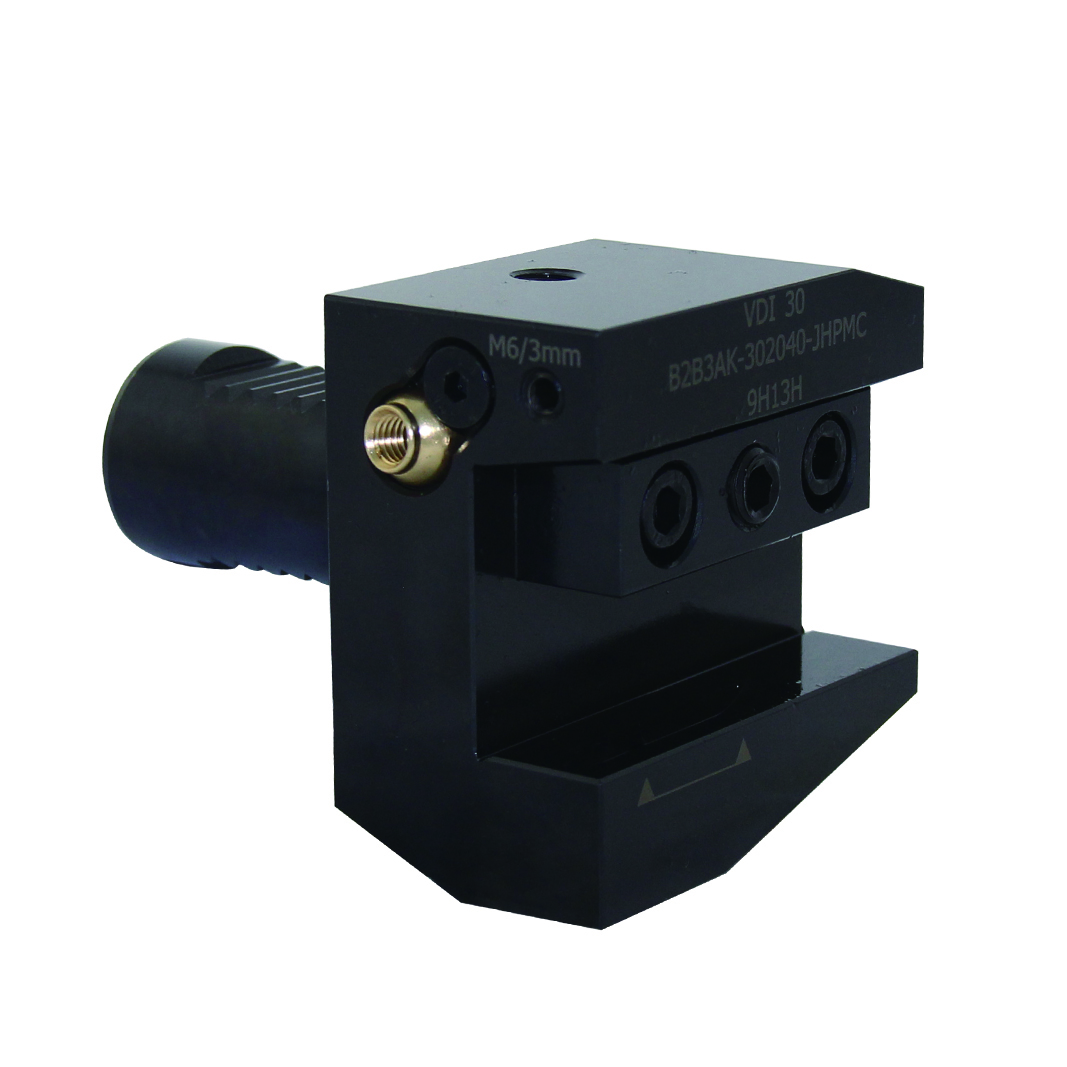

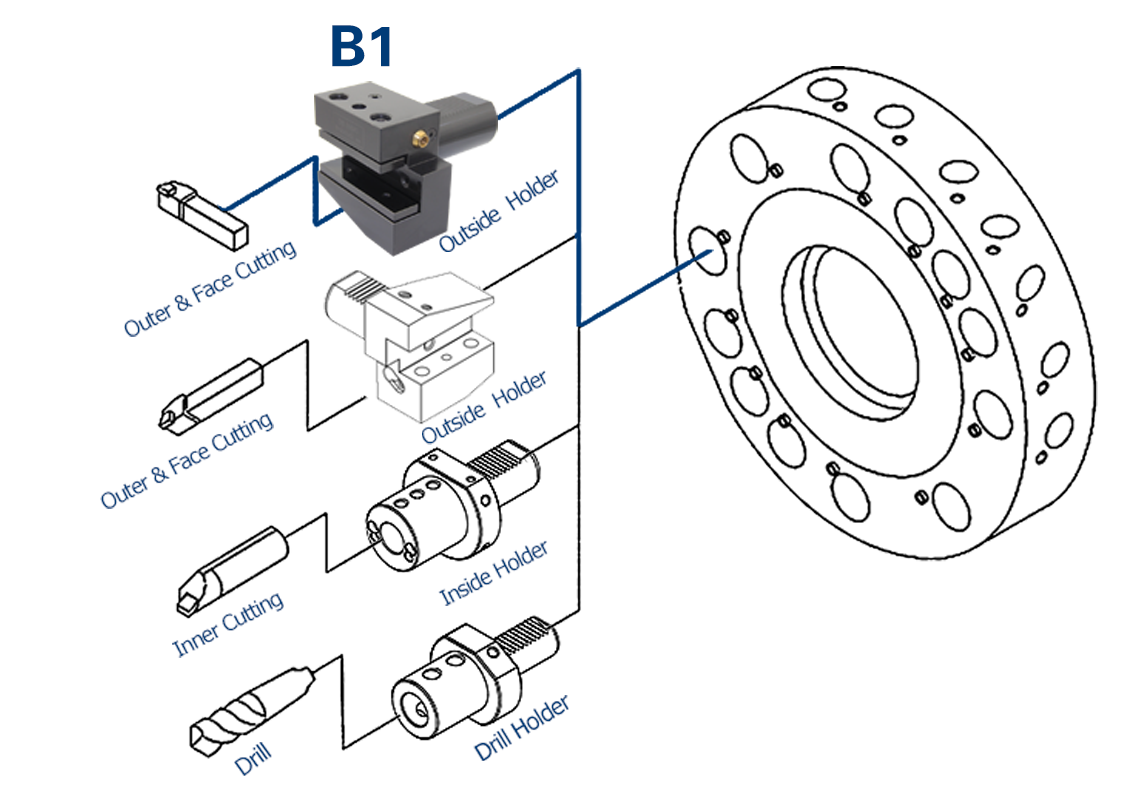

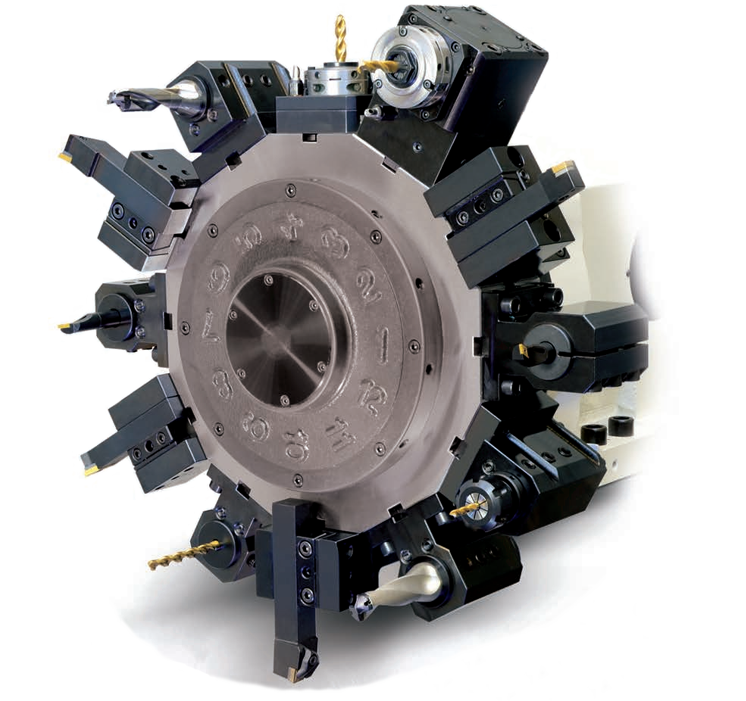

Type B1/B3/B5/B7 VDI Tool Holders Static (DIN69880) Turret Face Mounting, Radial tool holder, inverted, right-hand.

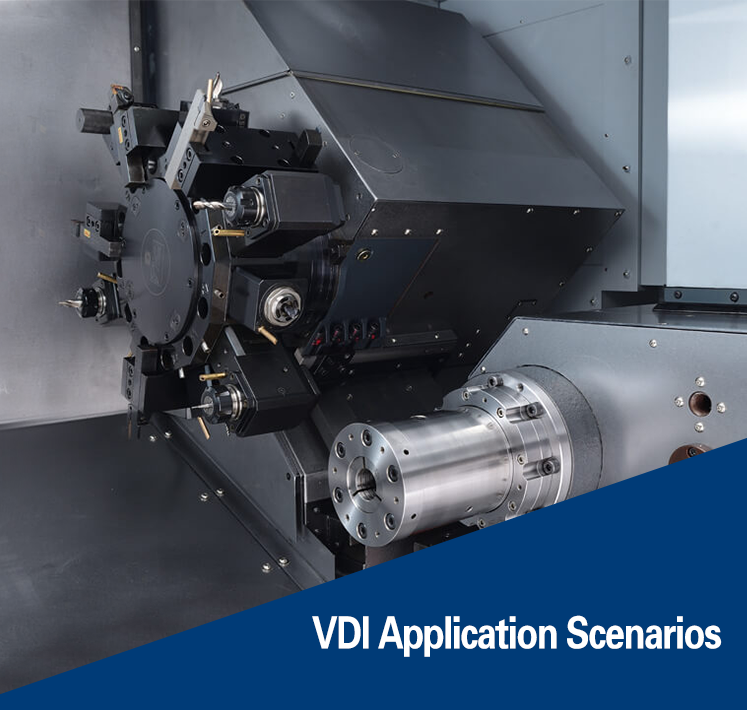

We have the most complete range of tool holders as BT, DIN69871, CAT, HSK, etc. VDI Tool Holders are with DIN 69880 standard, common types are Form B1, B2, B3, B4, B5, B6, B7, B8, C1, C2, C3, C4, D1, D2, E1, E2, E3, E4 and Form F.
Our Radial VDI Tool Holders Static B1/B3/B5/B7 Types are cut from solid pretreated material. They are hardened up to HRC-55~60, and then precisely ground to the highest accuracy standards.

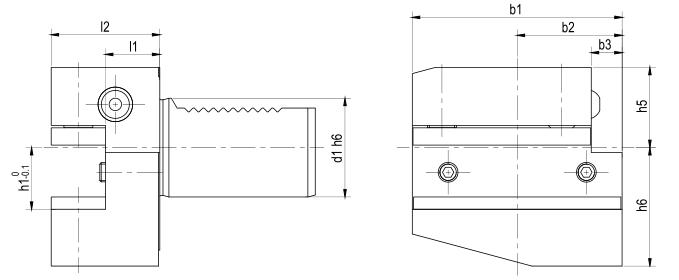

| Size | d1 | b1 | b2 | b3 | h1 | h5 | h6 | l1 | l2 |
|---|---|---|---|---|---|---|---|---|---|
| B1-16x12x24 | 16 | 42 | 23 | 5 | 12 | 20 | 22 | 13 | 24 |
| B1-16x12x34 | 16 | 42 | 23 | 5 | 12 | 20 | 22 | 23 | 34 |
| B1-20x16x30 | 20 | 55 | 30 | 7 | 12/16 | 25 | 30 | 16 | 30 |
| B1-20x16x40 | 20 | 55 | 30 | 7 | 12/16 | 25 | 30 | 26 | 40 |
| B1-25x16x30 | 25 | 55 | 30 | 7 | 12/16 | 25 | 30 | 16 | 30 |
| B1-25x16x40 | 25 | 55 | 30 | 7 | 12/16 | 25 | 30 | 26 | 40 |
| B1-30x20x40 | 30 | 70 | 35 | 10 | 20/16 | 28 | 38 | 22 | 40 |
| B1-30x20x60 | 30 | 70 | 35 | 10 | 20/16 | 28 | 38 | 42 | 60 |
| B1-40x25x44 | 40 | 85 | 42.5 | 12.5 | 25/20 | 32.5 | 48 | 22 | 44 |
| B1-50x32x55 | 50 | 100 | 50 | 16 | 32/25 | 35 | 60 | 30 | 55 |
| B1-60x32x60 | 60 | 125 | 62.5 | 16 | 32/25 | 42.5 | 62.5 | 30 | 60 |
| B1-80x40x75 | 80 | 160 | 80 | 20 | 40/32 | 55 | 80 | 40 | 75 |

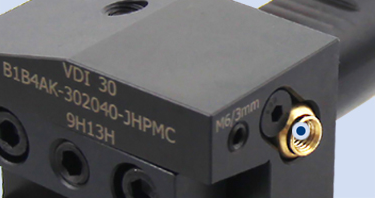

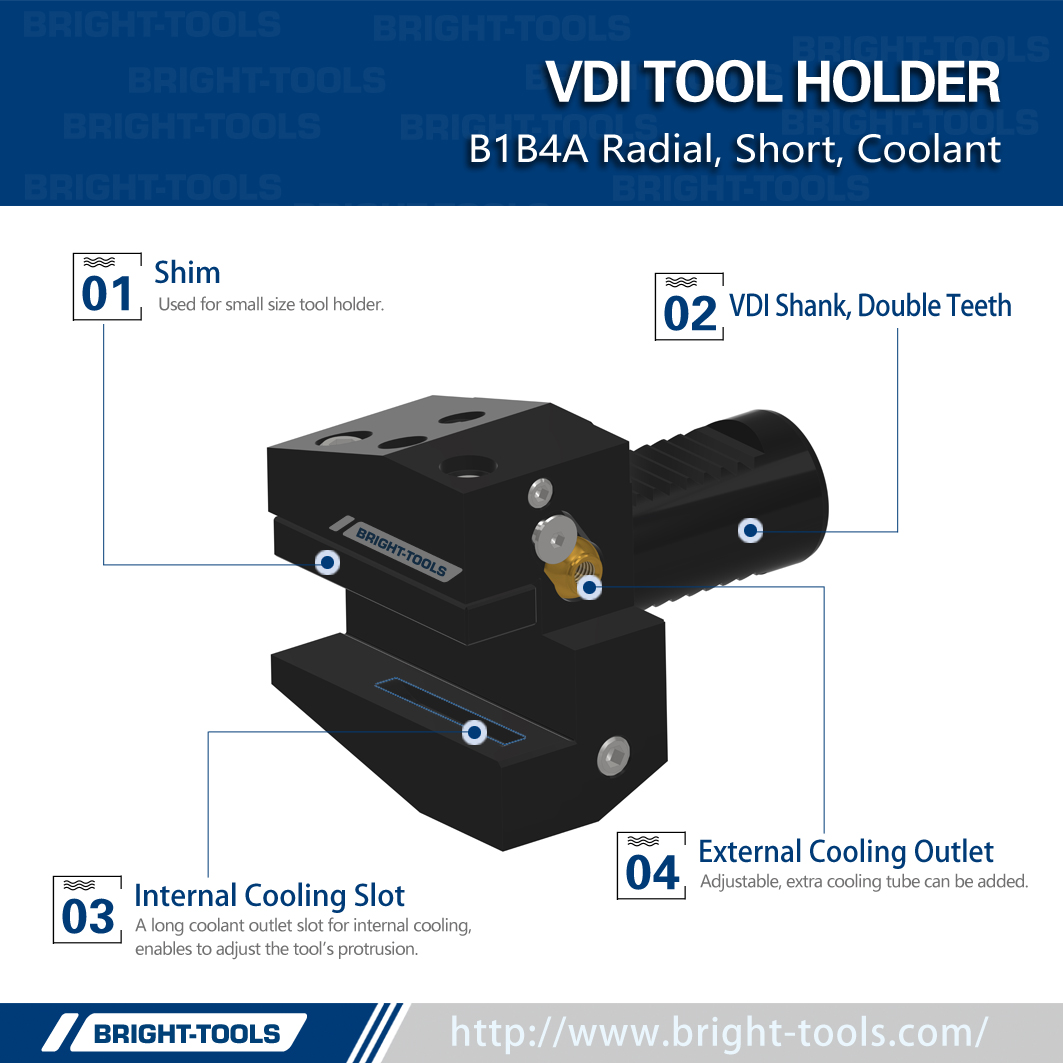

Adjustable cooling system; extra cooling tube can be added.

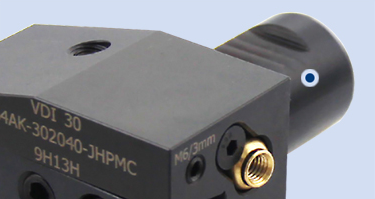

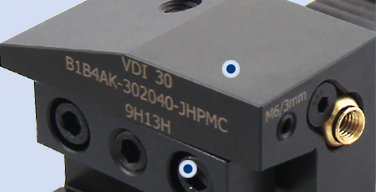

High hardness structural build and exceptional wear resistance.

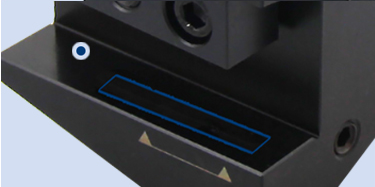

Shim can be ordered separately for small size tool holders.
