Product Description
1 Single Head Cap and T-Shirt Type Flat Computerized Embroidery Machine

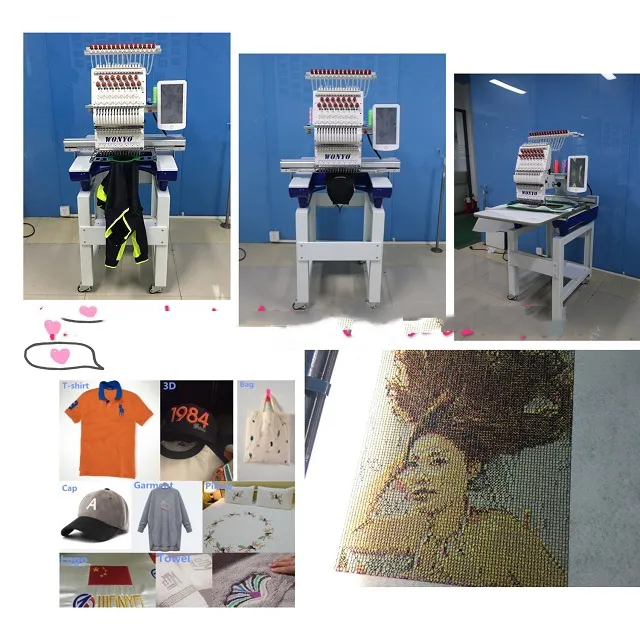

Suitable for cap, finished garments, jeans, belt, shoes, socks, insoles, bead, sequin, cording, boring, 3D, flat embroidery.
All models available in multi-head and 9, 12, 15 needles configurations.
| Model |
Needle |
Head |
N.w / G.w |
Emb. Area |
Measurements (Outer/CBM) |
| WY1201CS/WY1501CS |
12/15 |
1 |
120kg / 138kg |
360*510mm |
750*740*850mm / 840*830*930mm / 0.648CBM |
| WY1201CL/WY1501CL |
12/15 |
1 |
201kg / 238kg |
360*1200mm |
1490*980*1000mm / 1580*1030*1090mm / 1.774CBM |
| WY1202CS/WY902CS |
12/9 |
2 |
390KG / 429KG |
400*450MM |
1520*970*1400mm / 1710*1060*1470mm / 2.665CBM |
| WY1204CS/WY904CS |
12/9 |
4 |
720KG / 900KG |
400*450MM |
2700*1140*1660mm / 5.110CBM |
| WY1206CS/WY906CS |
12/9 |
6 |
1100KG / 1210KG |
400*450MM |
3438*1160*1500mm / 3460*1200*1670mm / 6.934CBM |
| WY1208CS/WY908CS |
12/9 |
8 |
1200KG / 1335KG |
400*450MM |
4238*1090*1500mm / 4510*1130*1670mm / 8.511CBM |
| WY1212CS/WY912CS |
12/9 |
12 |
1800KG / 1960KG |
400*450MM |
5838*1490*1610MM / 6000*1500*1680MM / 15.120CBM |

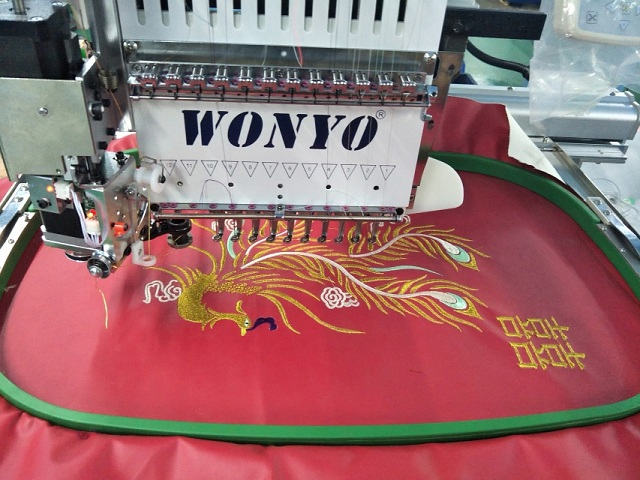

1201 Single Head Flat Computerized Embroidery Machine
I. Main Features of the High Speed Embroidery Machine
- Suitable for flat embroidery, cap embroidery, T-shirt embroidery, sequin embroidery and finished garments embroidery
- Automatic thread trimmer
- Maximum speed 1200 SPM
- 270° Wide cap frame unit
- Color LCD display showing real time stitching
- USB input port
- Automatic color change
- Thread break detection
- Pre-sew design trace capable
- Memory size 2,000,000 stitches
- Emergency stop
- Electricity: 110V/60Hz or 220V/50Hz available
- Machine Size: 75X74X85CM and NW90KG/200Lbs
- Built-in bobbin winder
II. New Features of the Embroidery Machine
- 110V or 220V self-adaptable power supply. No more external power box needed.
- Only 150W power consumption.
- Mainboard is built into the control panel, which reduces the possibility of damage by dust or external force.
- Support large capacity of USB flash drive from 2GB and up with faster data transmission and more compatibility.
- Proper shut-down function powers off only moving parts such as X&Y axis and needle bar, but still keeps the data on screen when the emergency button is pushed.
- Precise digital degree on stop point: Main shaft can be turned to any angle digitally with the number of degrees shown on the screen.
- Cap to flat (or vice versa) embroidery mode switch eliminating the possibility of hitting the frame.
- Keeping original file names in memory makes it easy to manage designs.
- Lay-out of keys on panel is more user-friendly.
- Real time and date is showing on screen.
- High speed up to 1200 SPM.
- Memory size up to 2 million stitches and 200 designs.

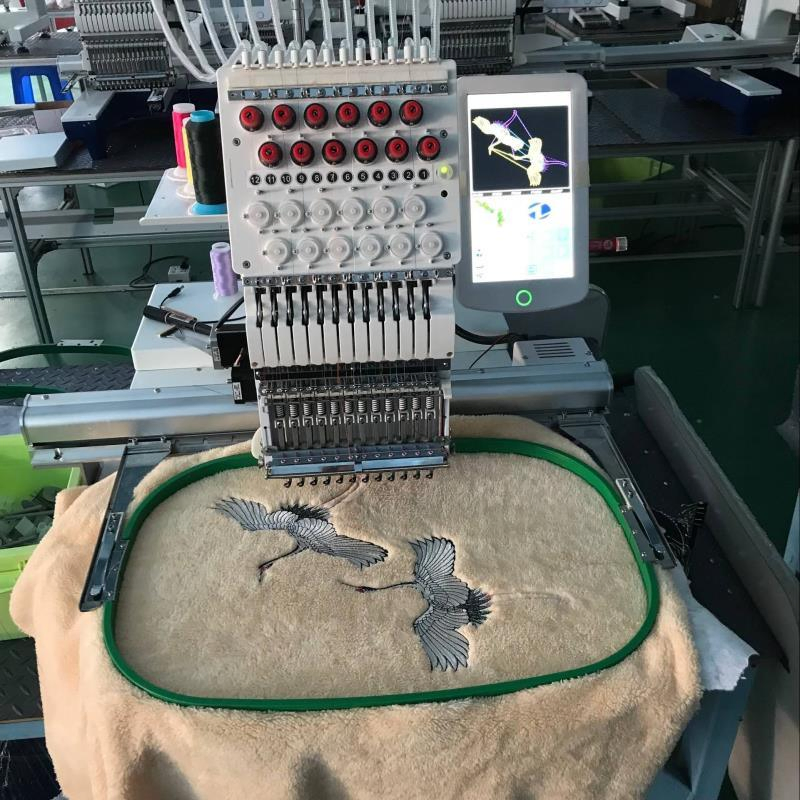

III. Single Head 10 inch Compact Control Panel
- Color LCD display showing real time stitching
- Manual Color Change
- Function keys including Menu, Speed up and slow
- Multi languages available
- Frame-moving keys
- Manual Trimming
- Start, Stop, and emergency Stop
- Embroidery Status down (Page Up and Page Down), USB Input
- DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
- On-board lettering
- Numeric keys for selection of needles

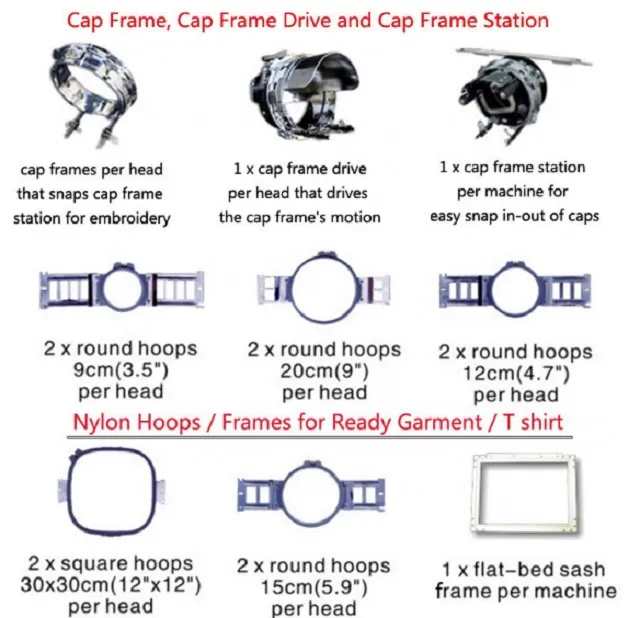

IV. 1 Head T-shirt/Clothes Use Embroidery Hoops/Frames Included
- 2 X Shirt Front Round Hoop 9 cm (3.5")
- 2 X Shirt Front Round Hoop 12 cm (4.7")
- 2 X Shirt Front Round Hoop 15 cm (5.9")
- 2 X Shirt Front Round Hoop 23 cm (9")
- 2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
- 1 X Sash Frame 56 X 38 cm (22" X 15")
Cap attachment of each head embroidery:
- 1pc cap driver
- 1pc cap hoop station
- 2pcs cap hoops
The Main Parts of Embroidery Machine
- Japan Rotary Hook
- Japan Bobbin case
- Italy Belt
- German Needles
- Red laser position device
Other Free Parts Included
- Extended table top for Flat embroidery
- Standing table with Wheels
- Operation Manual
- Tool Kit
- 8GB USB driver
- Bobbin Winder and so on
- Dahao Digital software
Other Free Gifts Shipping with Your Embroidery Machine
- Wooden case & vacuum package
- Free digitizing software
- A whole set free easy damaged spare parts for future replacement
- 100 free designs for testing your machine
Frequently Asked Questions
What types of products can this embroidery machine work on?
This computerized embroidery machine is highly versatile and suitable for flat embroidery, cap/hat embroidery, finished garments like T-shirts and jeans, belts, shoes, socks, insoles, as well as specialized tasks like sequin, bead, cording, boring, and 3D embroidery.
What is the maximum speed and embroidery area of the WY1501CS/WY1201CS model?
The machine operates at a high maximum speed of 1200 SPM (Stitches Per Minute) and features a spacious standard embroidery area of 360*510mm.
Does this machine feature automatic thread trimming and break detection?
Yes, the machine comes equipped with an automatic thread trimmer and automatic thread break detection to ensure seamless operation and minimize downtime.
What are the capabilities of the onboard control panel?
The single head machine features a compact 10-inch color LCD touch screen that shows real-time stitching, supports manual/auto color changing, manual trimming, frame movement, onboard lettering, and includes parameter settings in 16 different languages.
What components and accessories are included in the package?
The package is highly comprehensive, including multiple round hoops of various sizes, jacket back square hoops, a sash frame, a complete cap attachment set, a standing table with wheels, extended flat tabletop, a tool kit, Dahao digital software, and a set of easy-to-replace spare parts.
Does the machine support modern USB storage drives?
Yes, it features an integrated USB input port that supports USB flash drives of 2GB and up, ensuring faster data transmission speeds and broad compatibility for importing your custom embroidery designs.
